COUPLET 1'' threaded NPT A105 cl. 3000

Availability: last items
Dispatched within: 24 hours
Gross price: €7.89
incl. 23% TAX, excl. shipping costs

Regular price:

7.89
Net price: €6.42
excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list
Pin It

Description

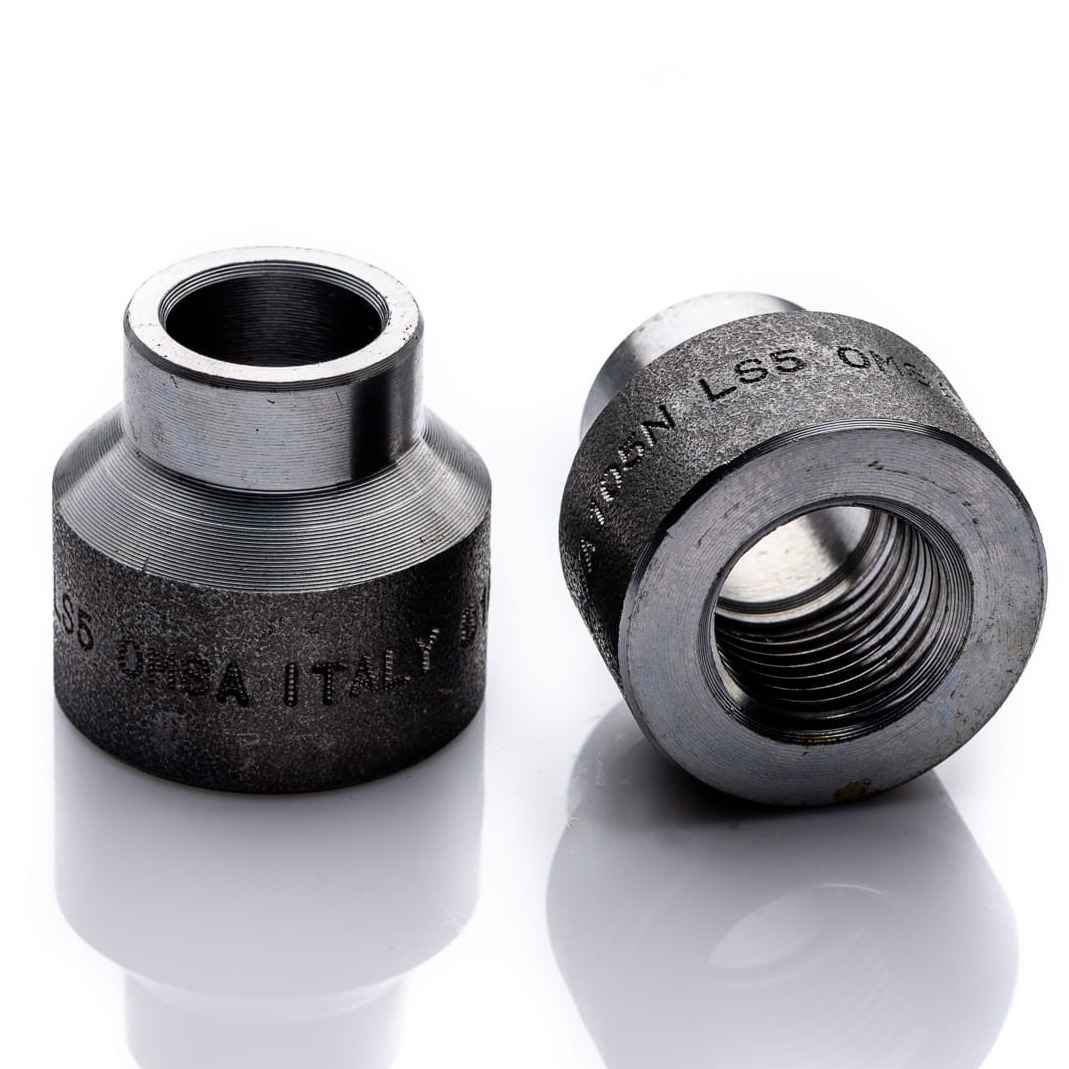

COUPLET 1'' threaded NPT A105 cl. 3000

  • thread size: 1''
  • thread: NPT (american conical)
  • type: A105
  • carbon steel for welding
  • pressure class: 3000
  • dimensions acc. to MSS SP 97
  • fitting– made acc. to norm ANSI B16.11
  • application: high-pressure industrial installations, for high temperature
  • atestation 3.1 on request
  • origin: EU

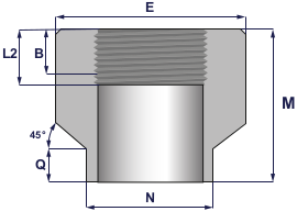

  • dimension M = 42,9mm

    dimension E = 46,1mm

         dimension N = 33,4mm

         dimension Q = 9,5mm

Other name: COUPLET 1'' threaded NPT A105 cl. 3000 fitting tapping for welding couplet with thread screwbranches olet A105 3000 threaded couplet

Information


COUPLET 1'' threaded NPT A105 cl.3000 belongs to the group of steel taps (Olet) type: veldolet, thredolet, sockolet, boss, couplet, latrolet is an alternative way of connecting pipes. Olets are pre-shaped to the curvature of the lead pipe so they can be easily welded to the pipe and make a branch. They provide good flow and optimal stress distribution. Taps are typically used in high-pressure and high-temperature applications. Dostępne opcje:

  • pressure class: 3000
  • pressure class: 6000
  • couplet Socked Weld (SW)
  • threaded couplet: thread NPT, BSPP, BSPT
  • material: carbon steel SA 105
  • material: carbon steel for low temperature (up to -50°c).  A350 LF2 CL.1
  • material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312
  • material: stainless steel 316 / SA A182 / F316L / F321 / F347
  • threaded
  • socked weld (SW)
  • thread– SW
  • products with atestation 3.1
  • origin: European Union

Application: refineries, metallurgy, marine industry, high pressure installations, high requirements installations, for high temperature A105, for low temperature LF2, boilers, pressure vessels, hydraulic installations, outdoor installations, oil and gas industry.

Marking: the size, pressure class, grade, melt number and not always the thread type are stamped on the coupler. Markings are made in accordance with applicable standards.

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR

Marking: each fitting is stamped with size, grade, melt and pressure class.

You can find more about pressure fittings here>>

Our offer includes also fittings in other sizes. If you have any questions contact usCall 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
