Union 1/2'' NPT P245GH 206bar

Availability: on sale
Dispatched within: 24 hours
Gross price: €14.76
incl. 23% TAX, excl. shipping costs

Regular price:

14.76
Net price: €12.00
excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list
Pin It

Description

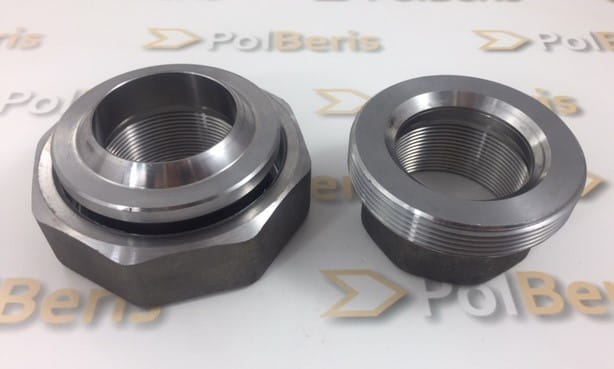

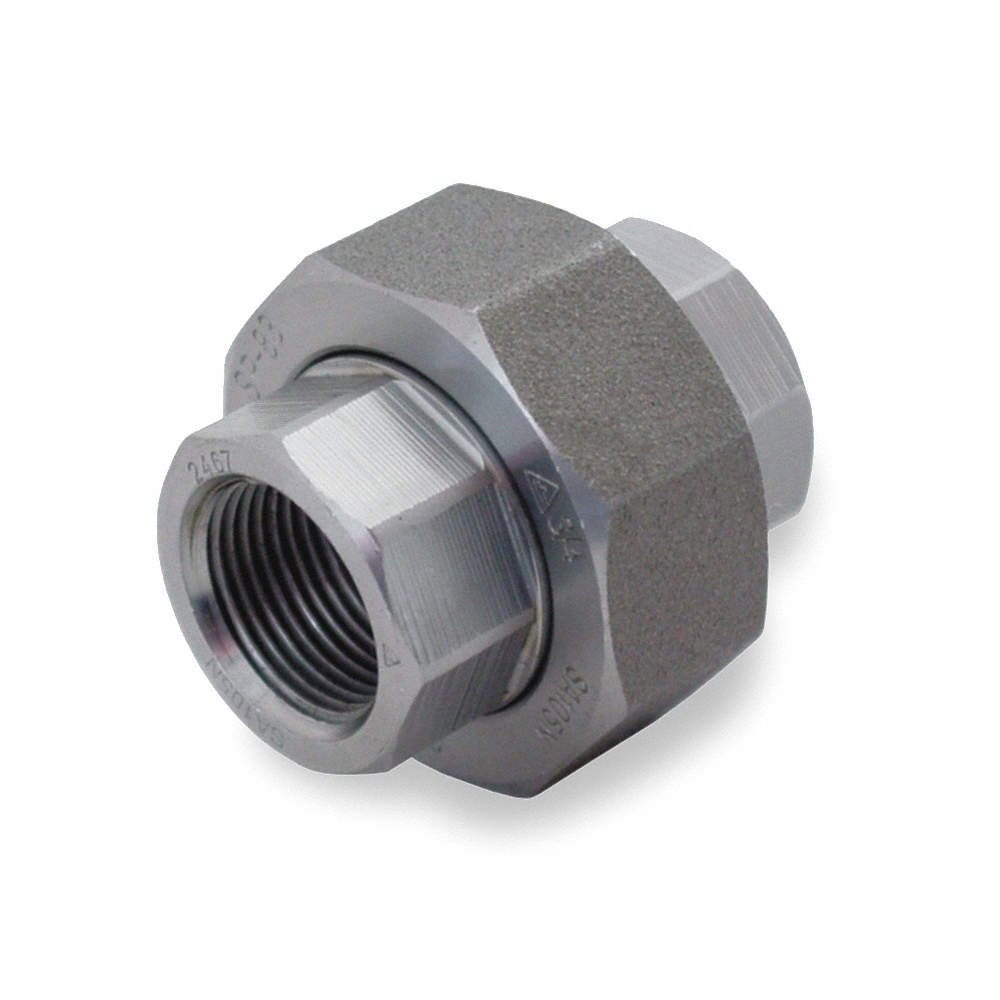

Union 1/2'' NPT P245GH 206bar

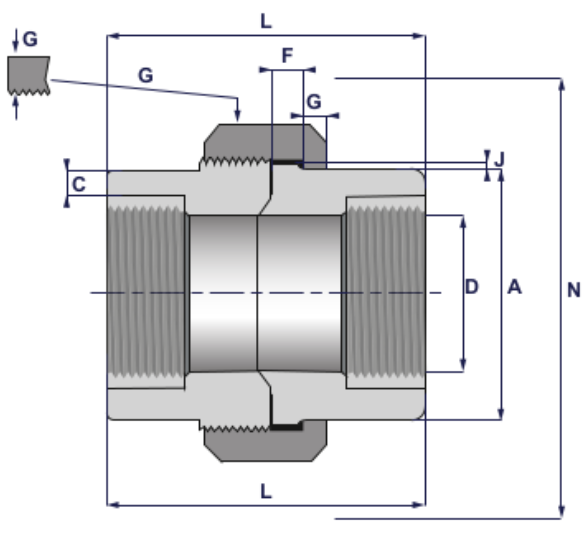

  • dimension 1/2'' (thread diameter "D" is 18,3 ÷ 18,7 mm)
  • thread: NPT (tapered)
  • length L = 49mm
  • material: boiler steel A105 (P245GH, P285GH)
  • pressure rating: 3000Psi (206bar)
  • conical sealing: metal-metal
  • dimensions acc. to standard MSS SP-83
  • application: industry, metallurgical engineering, refineries, boilers, tanks, systems with high requirements
  • certificate 3.1 at the request of the customer (free of charge)
  • origin: European Union



Other name: Union 1/2'' NPT A105 cl.3000 MSS SP-83 boiler high-pressure “holender” fitting female threads UNION P245GH P285G threaded union F-F steel #3000 GW female union

Information


Union 1/2'' NPT P245GH 206bar - Two-part fitting used for quick connection and disconnection of hydraulic systems.

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Identification: each fitting is stamped with size, grade, melt and pressure class

P245GH/P265GH carbon steel is primarily a weldable steel grade that is suitable for working at elevated temperatures. It is undoubtedly widely used in the petrochemical, chemical and oil and gas industries. It is used for pressure vessels and boiler vessels, and for pipes that transport hot liquids. It is a standard European steel

Certainly, the advantages of this grade of steel include: good weldability, good cold and hot forming properties

More information about unions you may find here >>

Our offer includes also unions in other sizes. If you have any questions contact usCall 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
