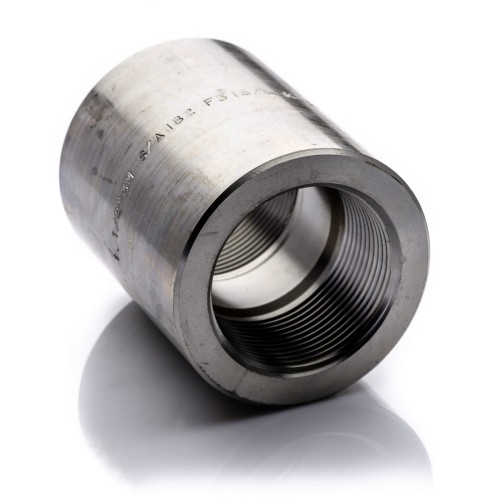

Coupling 3'' 316L NPT cl.3000
Regular price:
Regular price:
product unavailable
add to wish list
Description
Coupling 3'' NPT 316L cl.3000
- size: 3'' (thread diameter: 84,7 ÷ 85,1mm)
- thread type: NPT (conical)
- materiał: stainless steel 316L (1.4404)
- pressure rating: 3000lbs (206bar)
- dimension W: 108mm
- dimension D: 108mm
- high-pressure coupling
- certificate 3.1 at the request of the customer (free of charge)
- application: industry, pressure tanks, machinery production, hydraulic systems, external systems, for crude oil and gas industry
- origin: European Union

Other name: threaded coupling stainless steel class 3000 Inch NPT conical ASTM SS316 316L thrd fittings female threat F 316 1.4401 inox
Coupling 3'' 316L NPT cl.3000 stainless steel - allows to connect two ends of the installation or to connect a device. Avaliable in inches thread.
Steel grade 316 / 316L – this is a very popular stainless steel with high resistance to corrosion. It characterizes with great welding and forming properties.
Other name: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L
Application: pharmaceutical equipment, dairy equipment, brewing equipment, sea armature, off-shore architecture, food industry, industrial machinery, agricultural machinery, automotive industry.
Advantages of the 316/316L grade: non-magnetic steel, ideal ductility, great impact resistance, great weldability, good resistance, a wide operating temperature range.
Marking: each coupling is stamped with size, grade, melt and pressure rating. Sometimes also with the type of thread (execution and marking is in compliance with the applicable standards).
The couplings ensure the safety and durability of the system.
More about couplings, you may find here>>
Our offer includes a wide range high-pressure couplings and fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.
Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
Technical data
| Coupling Type | Coupling |
| Material | Stainless Steel |
| Pressure | Pressure Range 101–250 bar |
| Connection 1 | 3'' |
| Thread Type – Connection 1 | NPT Thread |
| Connection 2 | 3'' |
| Thread Type – Connection 2 | NPT Thread |
