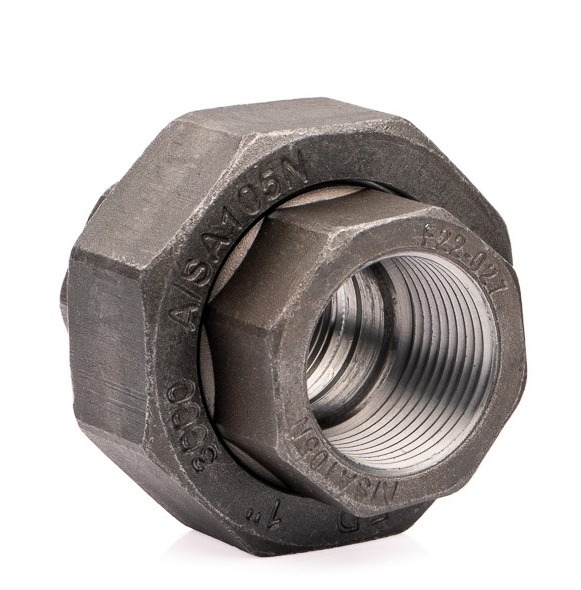

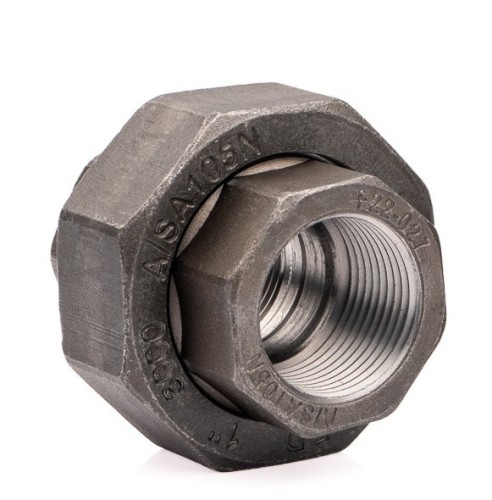

Union 1'' NPT A350 206bar
Regular price:
Regular price:
product unavailable
add to wish list
Description
Union 1'' NPT A350 206bar
- size1'' (thread diameter 30,3 ÷ 30,8mm)
- thread: NPT (conical)
- length L = 62mm
- material: boiler steel LF2 ( equivalent to P355GH )
- grade on SA/A350 LF2 certificate (steel with similar properties: P355NL1 P355NH P355QH L360NB 1.0566 1.0562 A420-WPL6 A333-Gr.6 StE 355)
- pressure class: 3000Psi (206bar)
- conical seal: metal-to-metal
- temperature application range: from -46°C to +343°C
- impact test at - 46°C
- dimensions according to MSS SP-83 standard
- applications: industry, metallurgy, refineries, boilers, pressure vessels, hydraulic installations, outdoor installations, for oil and gas industry
- 3.1 attestation on request (free of charge)
- origin: European Union
Other name: Union 1'' NPT A350 206bar LF2 cl.3000 MSS SP-83 UNION P355GH high-pressure boiler holender internal threads F-F steel #3000 GW nut double coupling
Information
Union 1'' NPT A350 206bar – Two-part fitting used for quick connection and disconnection of hydraulic systems.
Steel grade A350 LF2 - low-alloy steel, used for forged fittings, flanges, valves and couplings. Mainly intended for low-temperature operation. Weldable steel. Suitable for use at temperatures as low as -20°F (LF1) -50°F (LF2) and -150°F (LF3).
- A/SA350-LF2 CL1 / CL2
- A/SA350-LF3 CL1
Properties similar to grades: S355J2 1.0570 A333 Grade 2
Identification: each fitting is stamped with size, grade, melt and pressure class.
More information about unions you may find here >>
Our offer includes also unions in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
