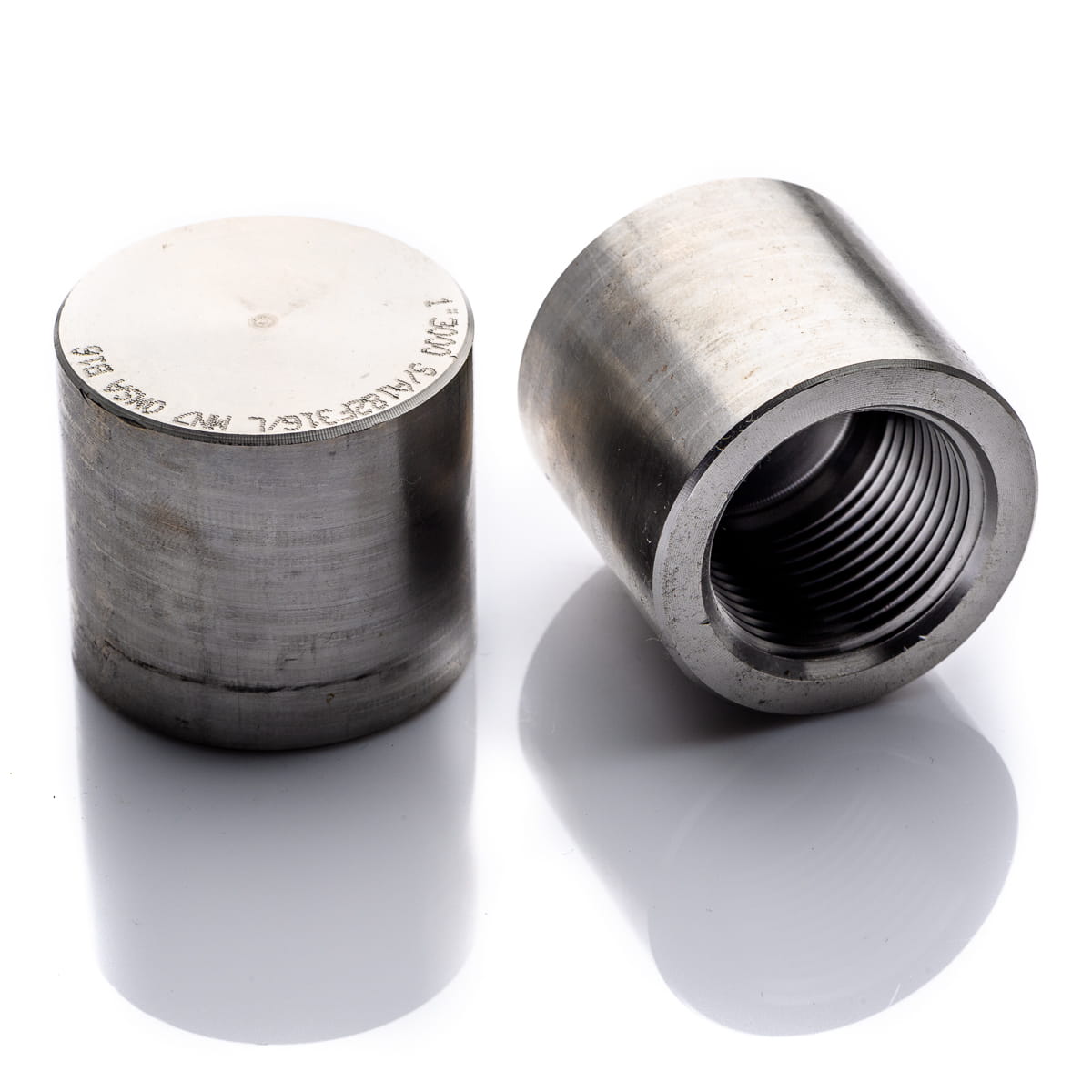

Cap 3/4'' NPT 316L cl. 3000
Regular price:
Regular price:
product unavailable
add to wish list
Description
Cap 3/4'' NPT 316L cl. 3000
- size: 3/4'' (thread diameter 23,7÷24,1mm)
- thread type: NPT (tapered)
- female thread
- material: stainless steel 316L (1.4404 SA182)
- ideal steel for welding
- application: pressure testing, heat exchangers, pharmaceutical equipment, dairy equipment, brewing industry, sea armature, off-shore architecture, food industry
- certificate 3.1 at the request of the customer (free of charge)
- origin: European Union

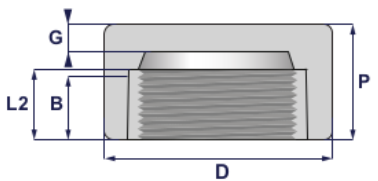

dimension P [mm] = 37
dimension D [mm] = 35
dimension B [mm] = 12,7
dimension L2 [mm] = 13,9
dimension G [mm] = 6,4
Other name: Cap 3/4'' NPT 316L cl. 3000 steel cap grade 316/316L tapered female thread stainless steel for welding plug
Information
Cap 3/4'' NPT 316L cl. 3000 - used for safe closure of the system. Used for the execution of pressure testing. Used for systems with high requirements, industry, food production etc.
Steel grade 316 / 316L - is undoubtedly a very popular stainless steel with high corrosion resistance. It has excellent welding and forming properties. It is noteworthy that steel grade 316 and 316L are of better quality than steel grade 304.
Other name: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L
Advantages of 316 / 316L grade: non-magnetic steel, excellent ductility, excellent impact strength, excellent weldability, good strength, wide operating temperature range
Marking: each cap is stamped with size, grade, melt and pressure rating. Sometimes also with the type of thread (execution and marking is in compliance with the applicable standards).
The plugs caps the safety and durability of the system.
More information about pluges and caps you may find here >>
Our offer includes also caps in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
Technical data
| Pressure | Pressure Range > 50 bar |
| Thread Type | NPT Thread |
| Size | 3/4'' |
| Material | Stainless Steel |
