Description

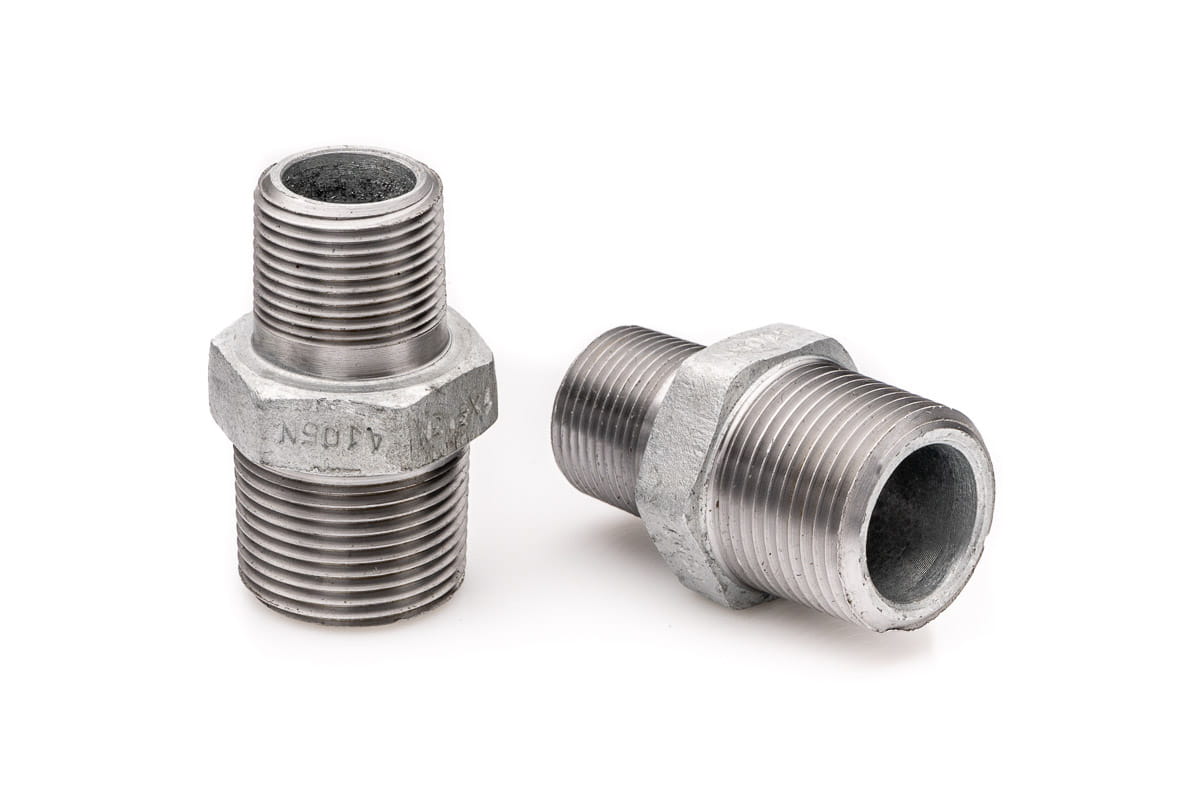

Nipple 3/4''x1'' NPT galvanized A105 cl.3000

  • size: 3/4'' - 1''
  • thread diameter 3/4'' is 26,3 ÷ 26,7mm
  • thread diameter 1'' is 32.9 ÷ 33.4mm
  • external threads
  • material: A105 (carbon steel, equivalent to P245GH, P265GH, P285GH)
  • thread: NPT (conical, American)
  • pressure class: 3000 (i.e. 206bar)
  • galvanized
  • application: pressure installations, high temperature installations, boilers, ships, heavy industry, marine industry
  • 3.1 certificate on request (free of charge)
  • origin: European Union

dimension B1 [mm] = 24

dimension B2 [mm] = 19

dimension A [mm] = 35

dimension W [mm] = 60

dimension C [mm] = 10

dimension E [mm] = 25

Other name: Nipple 3/4''x1'' NPT galvanized A105 cl.3000 connector high pressure steel adapter for high temperature HEX Nipple boiler P245GH P265GH P285GH

Information


Nipple 3/4''x1'' NPT galvanized A105 cl.3000 - belongs primarily to threaded fittings "high-pressure fittings". Additionally, nipples are available in all inch sizes. Each nipple is stamped with size, grade, melt and pressure class. It guarantees the safety and durability of the installation. All threaded fittings are certified 3.1.

Marking: each fitting is stamped with size, grade, melt and pressure class.

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR

Our offer includes also stainless nipples and fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl

More information about fittings and nipples you may find here>>

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
