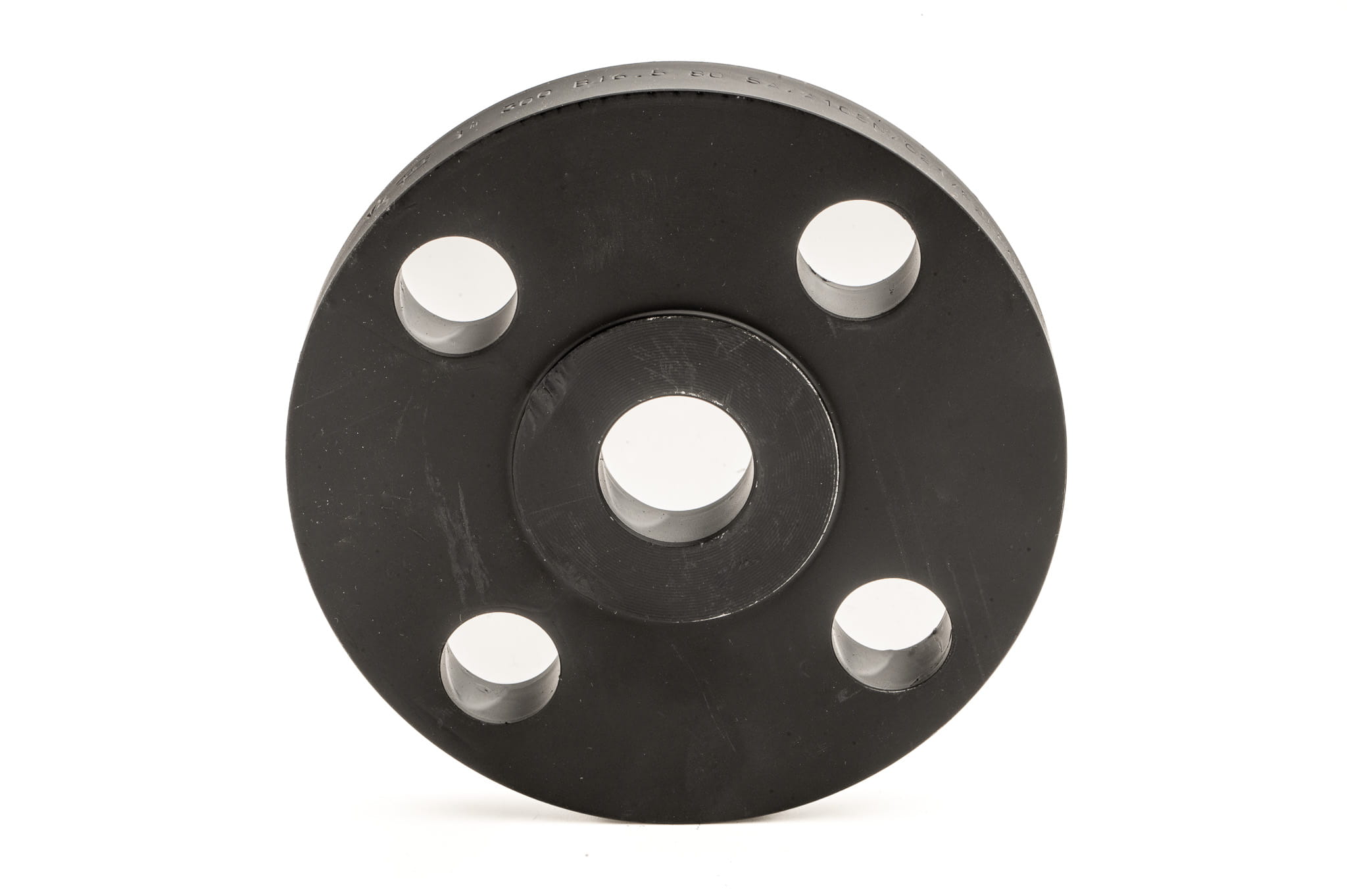

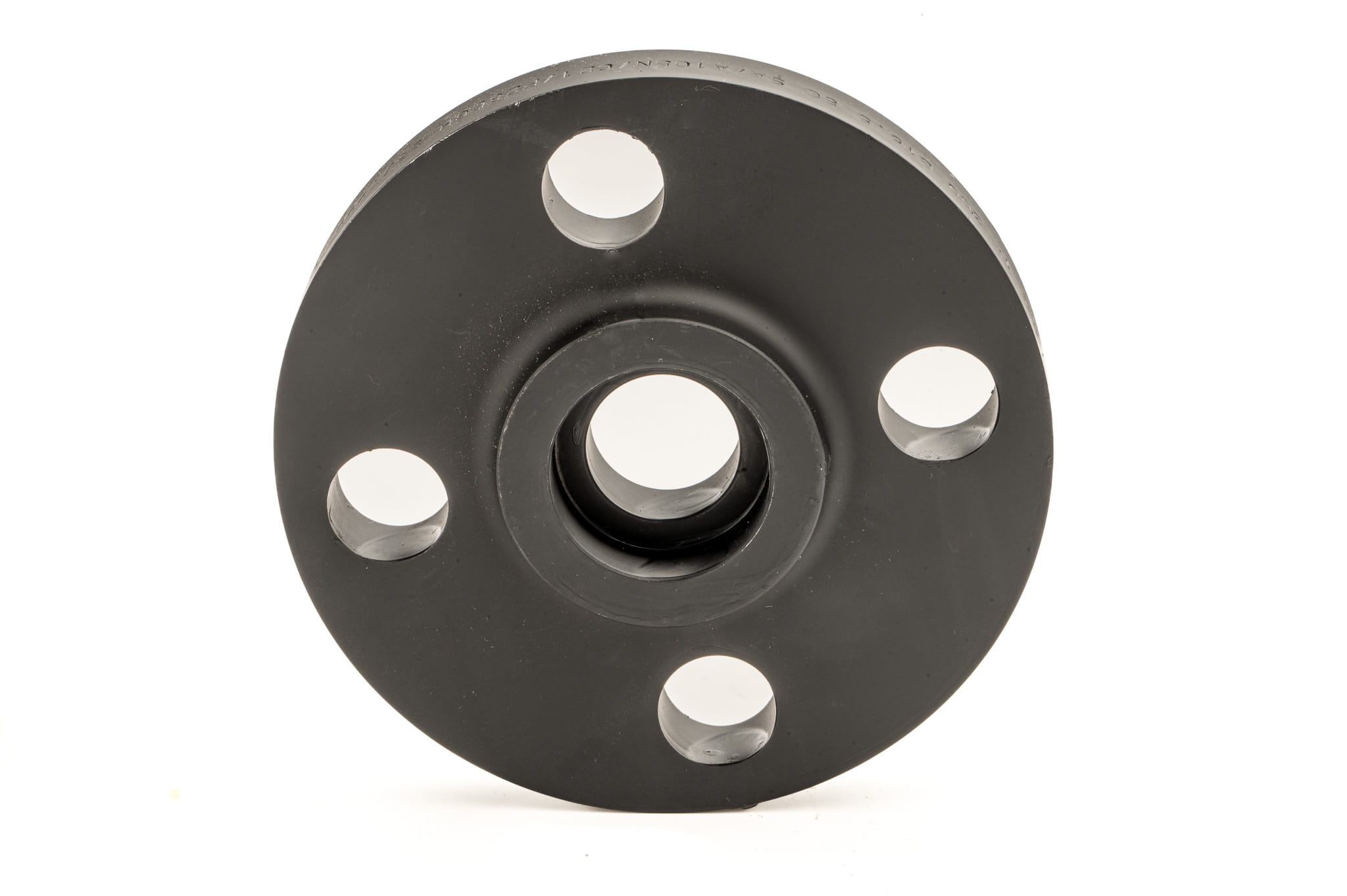

Flange 1'' socket weld 150LB A105 SW
Regular price:
Regular price:
product unavailable
add to wish list
Description
Flange 1'' Socket Weld 150LB A105 SW
Specifications:
- Size: 1''
- Type of Flange: Socket Weld SW
- Pressure Class: 150 lb
- Type of Face: RF
- Wall Thickness: SCH80 / XS
- Steel Grade: A105
- Flange for Welding
- Certificate 3.1 upon customer request (free of charge)
- Manufactured According to Standard: ANSI B16.5
- Application: Industrial Installations
Other Name: Flange 1'' SW 150lb RF XS A105 Socket Flange SA/A105 ANSI 150 RF Boiler Steel for Welding with Flat Face, Flange, Steel Flange, Collar
What Are the Applications of Socket Weld SW Flanges?
Socket weld flanges are very popular abroad and can often be found in international projects, as they are manufactured according to the American standard ANSI B16.5. Socket weld (SW) flanges can be used for welding in industrial installations, pressure vessels, as connections to pumps, valves, and other industrial equipment. The socket weld connection makes the installation particularly safe. Welders highly praise socket weld flanges for their convenience during welding.
Properties of Steel Grade A105
Steel grade A105 is a carbon steel that is frequently used in piping components and fittings. This grade of steel is primarily applied in pressure installations at ambient temperatures and above. It has good machinability. Grade A105 is well-weldable.
Applications:
This grade is used for the transmission of oil and gas, in petrochemicals, in power plants, pressure vessels, etc.
Similar Properties to Grades:
1.0460, C22.8, P245GH, P265GH, P285GH, S235JR
You can find more about flanges here>
We offer steel flanges and rings in different sizes. If you have any questions, please contact us. Call us at 63/2614202 or send an inquiry to the email: biuro@polberis.pl.
