Nipple 1 1/4'' NPT kl. 3000 A105

Availability: on sale
Dispatched within: 24 hours
Gross price: €14.41
incl. 23% TAX, excl. shipping costs

Regular price:

14.41
Net price: €11.71
excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list
Pin It

Description

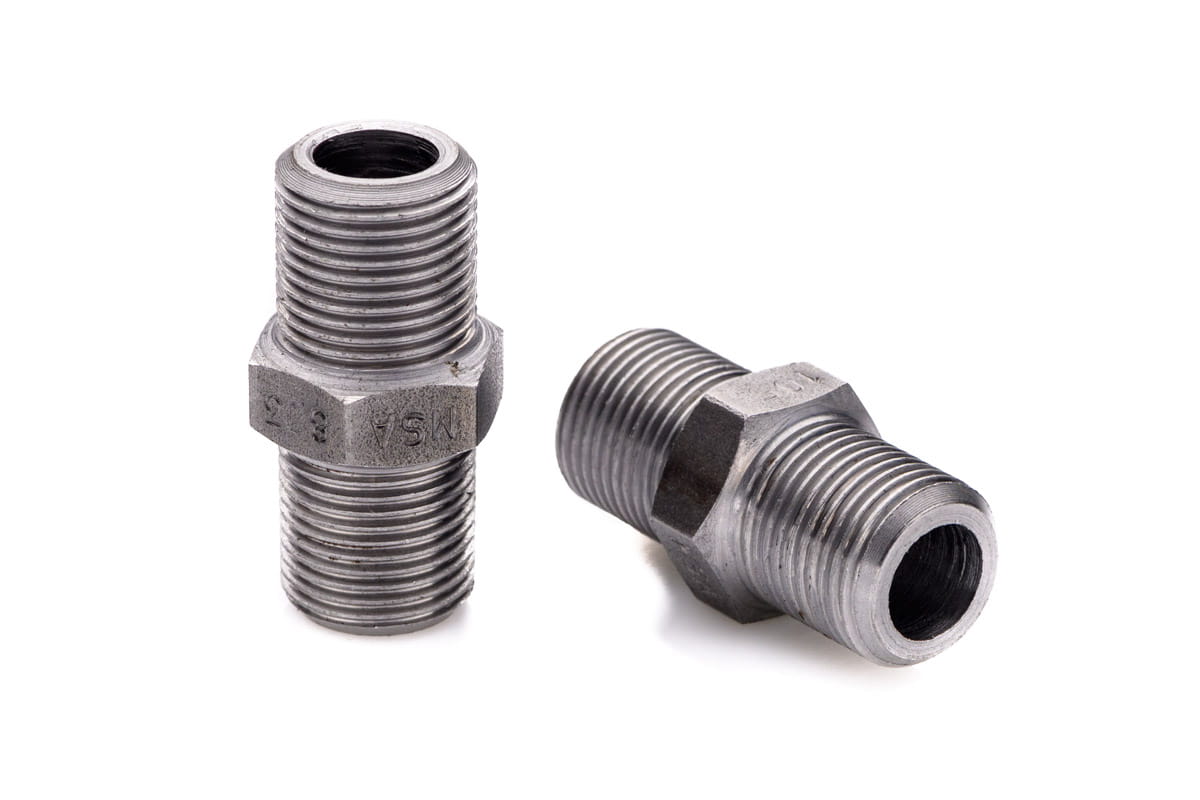

Nipple 1 1/4'' NPT kl. 3000 A105

  • size: 1 1/4'' (thread diameter: 41,5 ÷ 41,9mm)
  • tapered thread NPT American
  • material: A105 (carbon steel for high temperatures, for high pressure, the equivalent of P245GH, P265GH, P285GH)
  • steel for welding
  • pressure rating: 3000 lbs / 206 bar
  • temperature application range: from -46°C to +343°C
  • impact testing at - 46 °C
  • certificate 3.1 at the request of the customer (free of charge)
  • application: industry, pressure tanks, machinery production, hydraulic systems, external systems, for crude oil and gas industry
  • execution acc. to ASME B16.11, BS3799-74, ANSI/ASME B1.20.1-2013, PED 97/23/EC
  • origin: European Union

dimension B [mm] = 32

dimension A [mm] = 46

dimension W [mm] = 66

dimension C [mm] = 14

dimension E [mm] = 26

Other name: Nipple 1 1/4'' NPT cl. 3000 A105 fitting HEX adapter Carbon steel high pressure P245GH P265GH P285GH male threads for welding 206 bar

Information


Nipple 1 1/4'' NPT cl. 3000 A105 fitting - belongs to a group of threaded fittings,“high-pressure couplings”. The nipples are available in all inch sizes. They ensure the safety and durability of the system. All threaded fittings have 3.1 certificates.

Marking: each fitting is stamped with size, grade, melt and pressure rating.

Steel grade  A105 – is carbon steel very often used for components of the pipelines and fittings. This grade of carbon steel is used for pressure systems for ambient and higher temperatures. It has good machining properties as in the case of each low-alloyed steel. A105 grade is well weldable steel.

Application: grade used for transport of crude oil and gas, in petrochemical plants, power plants, pressure tanks etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH

More information about fittings and nipples you may find here>>

Other sizes of NPT BSP BSPT Rc Rp nipples are also available on request. If you have any questions contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
