Flange 1'' SLIP ON B16.5 A105 150lbs

Availability: on sale

Dispatched within: 24 hours

Gross price: €18.55

incl. 23% TAX, excl. shipping costs

Regular price:

18.55

Net price: €15.08

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12814A

Description

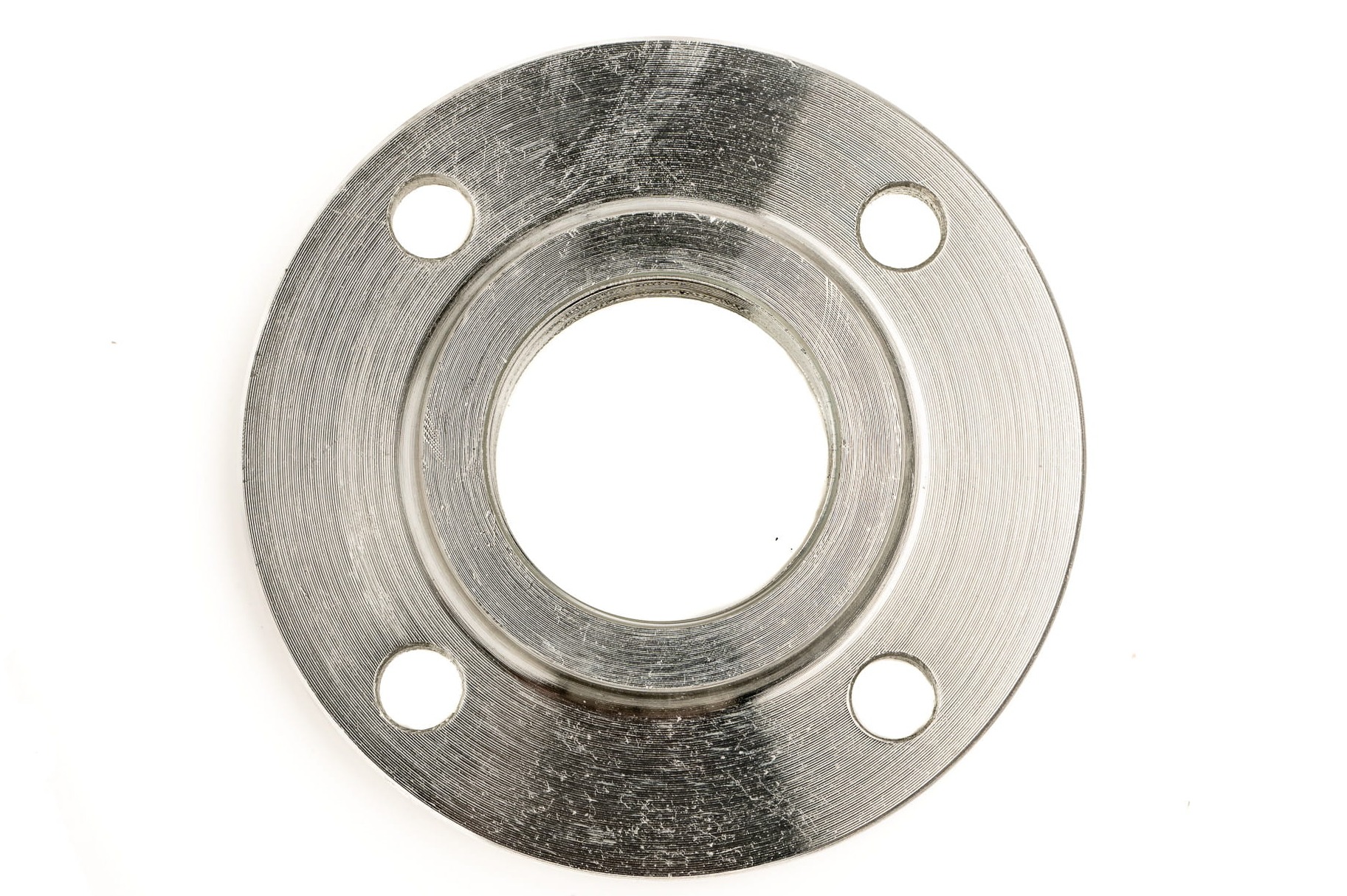

Flange 1'' SLIP-ON B16.5 A105 150lbs

size: 1''
pressure: 150lbs
ASME B16.5
flange type: SLIP-ON
flange for welding
grade: A105 / P280GH
flange with atestation 3.1
price for 1pc
application: in industrial installations, pipelines, or equipment construction

Other name: Flange 1'' SLIP ON B16.5 A105 150lbs for welding on pipe flange SO slip-on

Information

Flange SLIP-ON - it is a flange for welding. How to welding the flange? We slide it onto the pipe. They are minimally wider, so that the pipe slides in. We weld it on the bottom and on top of the flange. It is made according to the American standard B16.5.

When welding, keep the space between the end of the pipe and the flange to avoid damage to the flange face. As shown in the figure.

Steel grade A105 - is a carbon steel undoubtedly often used in pipeline components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

More about flanges can be found here>>

We also offer flanges and steel rings in other dimensions. If you have any questions, contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Manufacturing Standard	ASME Standards
Flange Type	Slip-On (SO)
Steel Grade	A105
Material	Carbon Steel
Size	DN25 ~ 1'' ~ 33,7mm
