Cast iron tee 1'' x 3/8''

Availability: on sale

Dispatched within: 24 hours

Gross price: €6.89

incl. 23% TAX, excl. shipping costs

Regular price:

6.89

Net price: €5.60

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11104J

Description

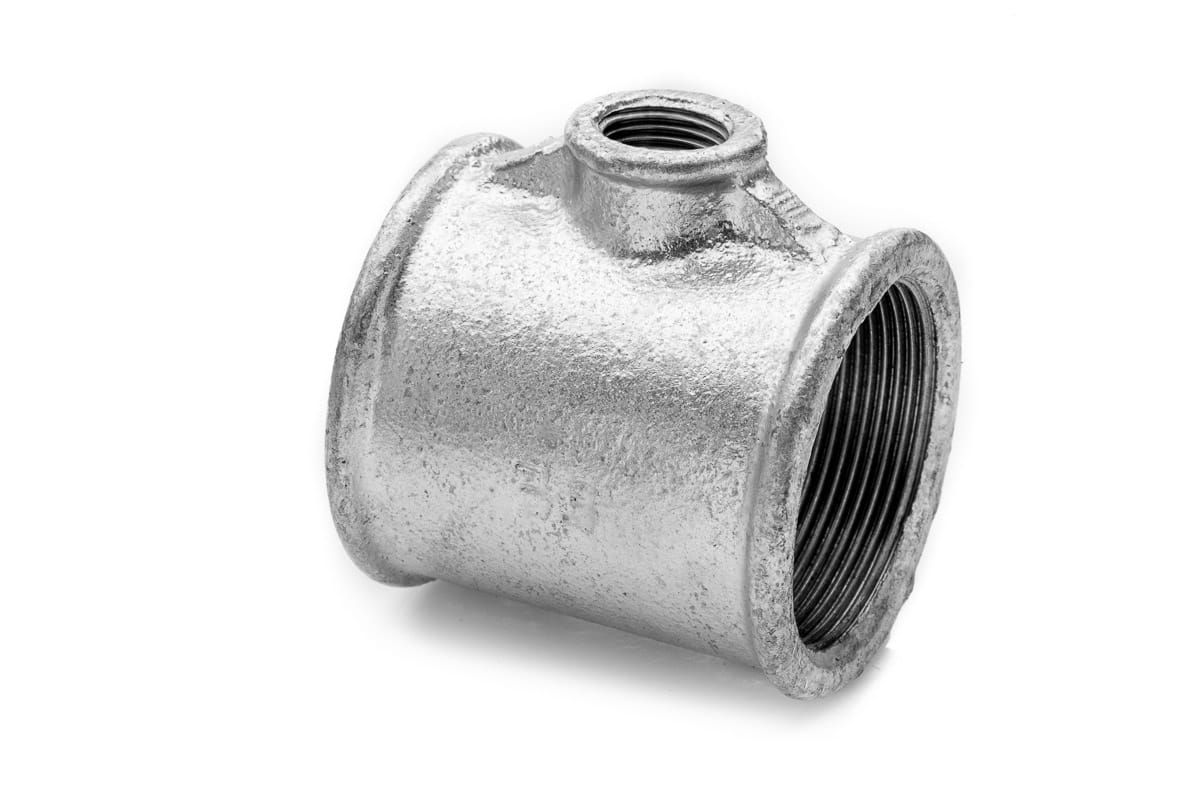

Cast iron tee 1'' x 3/8''

Specifications:

size: 1'' x 3/8''
right and left thread: 1'' (thread diameter is 30,3 ÷ 30,8 mm)

top thread: 3/8'' (thread diameter is 14,9 ÷ 15,4 mm)
type: Straight tee with threads: internal x internal x internal
other designations: No. 25 - Code 130
material: Galvanized Cast Iron
coating: Galvanized
thread type: BSP, also known as G, Rp, straight cylindrical
manufactured according to: EN 10242

Other name: equal tee, galvanized, for central heating 1'' x 3/8'' , cast iron C.O.

Galvanized Cast Iron Fittings

Galvanized cast iron fittings are widely used in all industrial sectors and in central heating installations. Their main advantages are cost-effectiveness and availability. They are suitable for installations with low requirements, for both cold and hot water.

Application of Galvanized Tees

Galvanized cast iron tees are used in water, hydraulic, and industrial installations. They enable easy changes in the direction of water flow and branching of the installation. They are a favorite among plumbers and are often used in central heating systems.

Material and construction malleable tees

The fittings are made of ductile iron. The surface is coated with hot-dip zinc, which protects against corrosion and weather conditions.

Thread specifications

Galvanized cast iron fittings have external tapered threads (R) and internal cylindrical threads (Rp), compliant with ISO 7/1 standards.

Marking:

The fittings are marked with their size.

Available Sizes of Tees:

1/8'' - 1/4'' - 3/8'' - 1/2'' - 3/4'' - 1'' - 1 1/4'' - 1 1/2'' - 2'' - 2 1/2'' - 3'' - 4''

We also offer cast iron fittings without galvanization (without coating).

More information about bends you may find here >>

Our offer includes also bends in other sizes. If you have any questions contact us. Call 0048 632614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Material	Cast Iron
Connection 1	1"
Connection 2	3/8"
Thread Type	BSP / G / Rp / Rc Thread
