Elbow 1" socket weld A105 cl.6000 90 degrees
Regular price:
Regular price:
product unavailable
add to wish list
![Pin It](http://pinterest.com/pin/create/button/?url=https://sklep.polberis.pl/en_US/p/Elbow-1-socket-weld-A105-cl.6000-90-degrees/12800&media=//sklep.polberis.pl/userdata/public/gfx/24356/Kolano-1-kl.-6000-kielichowe-SW-do-rury-fi-33%2C7-cisnienie-250-bar-P245GH-P285GH-do-spawania-socked-weld.jpg&description=Elbow 1" socket weld A105 cl.6000 90 degrees "Pin It")
Description

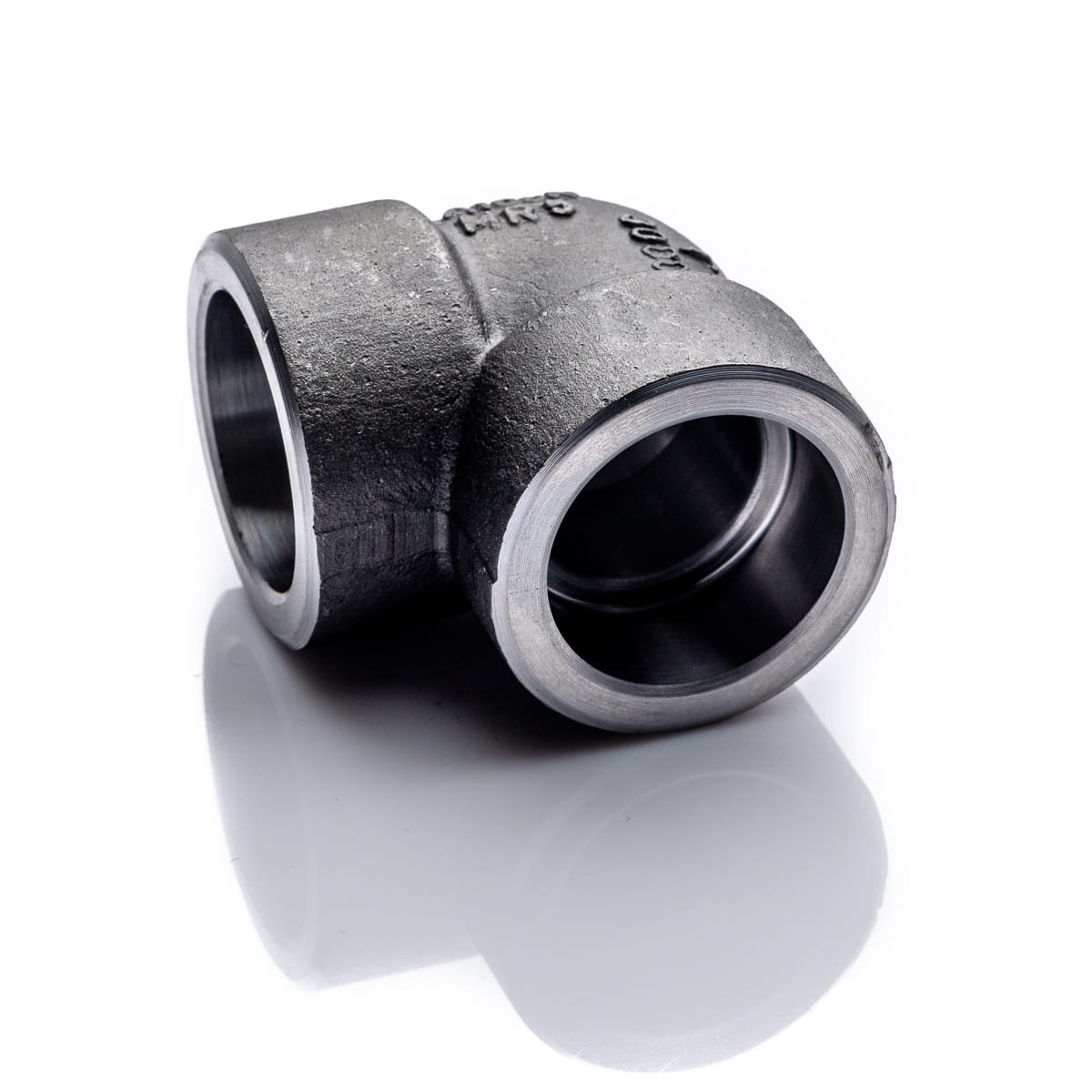

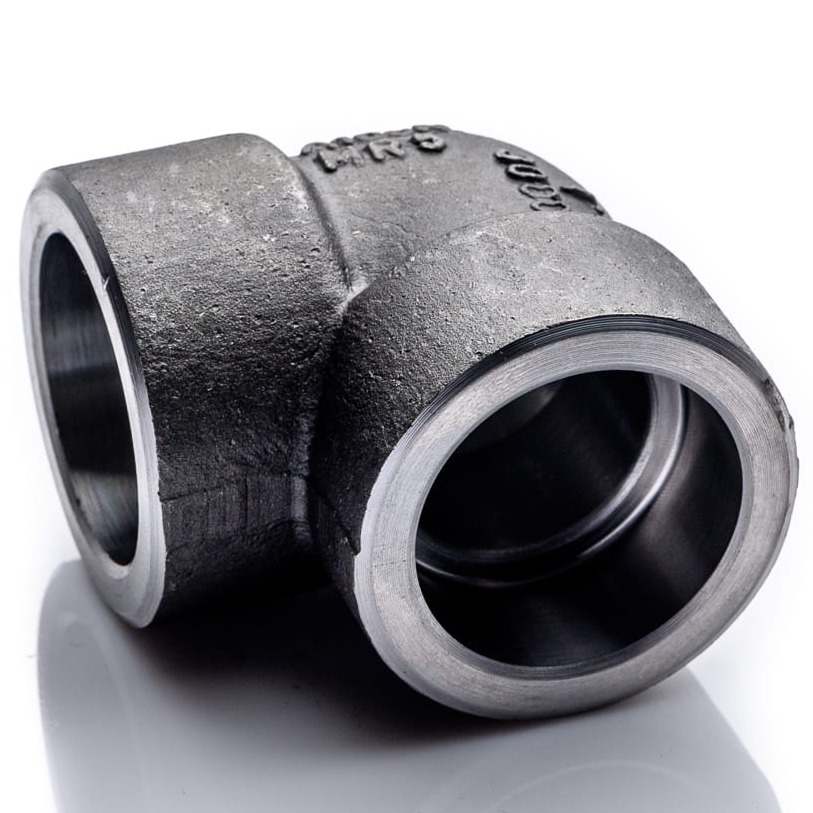

Elbow 1" socket weld A105 cl.6000 90 degrees
- size: 1"
- pressure class: 6000
- gatunek: A105 (stal kotłowa do spawania P245GH, P285GH)
- angle: 90 degrees
- Socket fittings for welding to ANSI B16.11 standard
- applications: boilers, high pressure installations, high temperature installations, refineries, marine industry
- certificate 3.1 on request
- origin: European Union
Other name: Elbow 1" socket weld A105 cl.6000 90 degrees bell elbow - elbow with socket - socket weld elbow - SW elbow fittings carbon steel A105N P235GH P265GH S355JR elbow 1'' socket weld A105 cl.6000
Elbow 1" socket weld A105 cl.6000 90 degrees
Information
Socket Weld (SW) fittings belong to the group of “high-pressure fittings” where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.
Steel grade A105 – it is carbon steel very often used for components of the pipelines, flanges and fittings. This grade of carbon steel is used for operation in ambient temperatures and higher, and operation in pressure systems. It has goods machining properties as in the case of each low-alloyed steel. Weldable steel.
The grade used in socket weld fittings, elbows, tees, joint kits, unions, flanges, joints etc.
Application: grade used for transport of crude oil and gas, in petrochemical plants, power plants, etc.
Properties similar to grades: : 1.0460 C22.8 P245GH P265GH
More information you will find here >>
Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
