Half coupling 3/4" NPT cl. 3000 A105

Półmufa 34 kl. 3000 NPT A105 stalowa DN20 do spawania łącznik mufowy do rur P245GH P285GH halfcoupling.jpg

Availability: on sale

Dispatched within: 14 days

Gross price: €3.08

incl. 23% TAX, excl. shipping costs

Regular price:

3.08

Net price: €2.50

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 9116E

Description

Half coupling 3/4" NPT cl. 3000 A105

size: 3/4'' (thread diameter: 23,7 ÷ 24,1mm)
thread type: NPT (conical)
pressure rating: 3000 lbs / 206 bar
material: carbon steel ASTM A105
steel for welding
certificate 3.1 at the request of the customer (free of charge)
application: industry, pressure tanks, machinery production, hydraulic systems, external systems, for crude oil and gas industry
origin: European Union

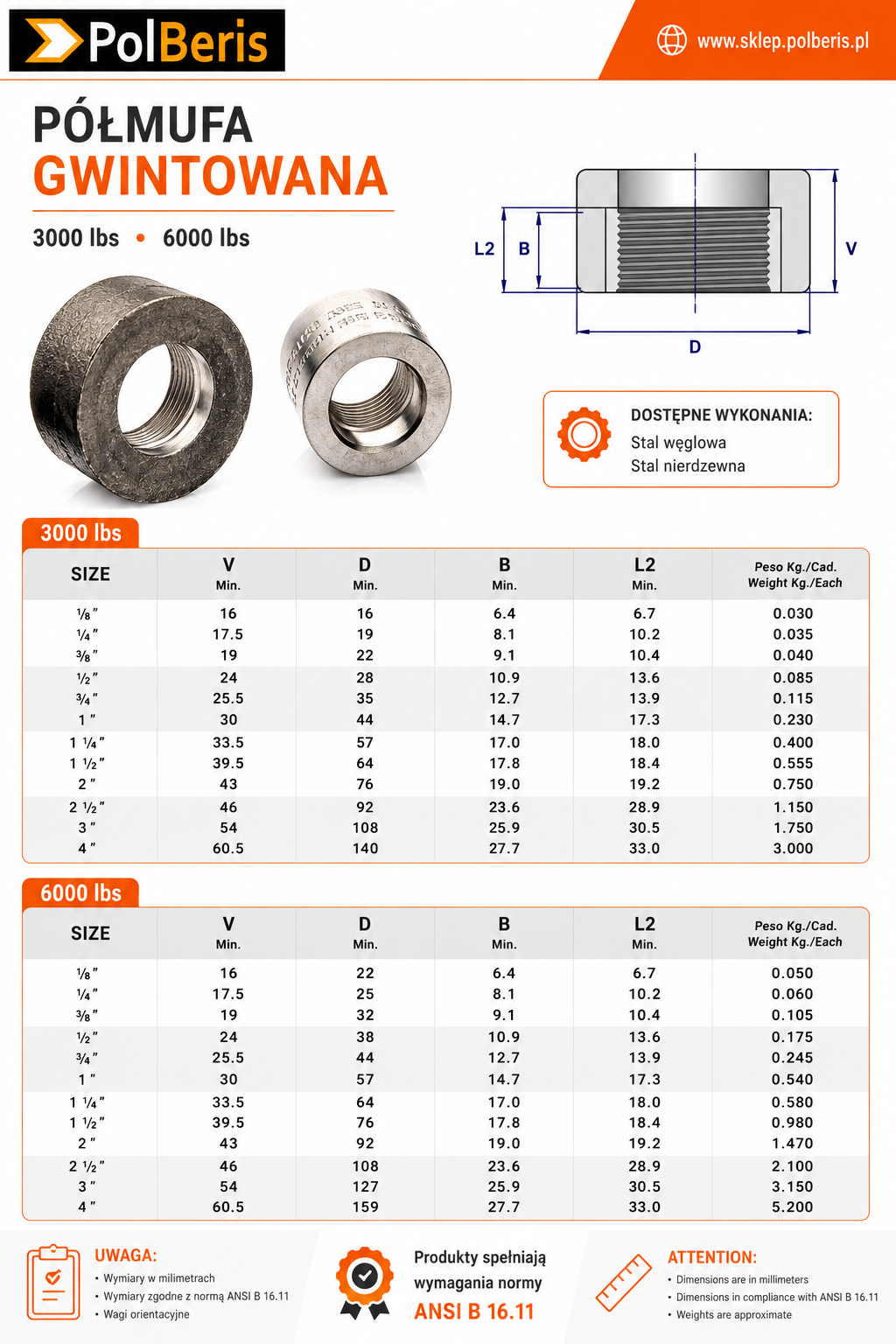

D= 35mm

V= 25,5mm

L2= 13,9mm

Other name: half coupling 3/4'' NPT A105 cl.3000 threaded fitting high-pressure adapter NPT tapered thread welding socket straight coupling carbon steel

Information

Half coupling 3/4'' NPT cl.3000 A105 - belongs to the threaded fittings "high-pressure fittings". The half couplings are available in all inch sizes. Each coupling is stamped with size, grade, melt and pressure class. It guarantees the safety and durability of the installation. All threaded fittings are certified 3.1.

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR

The couplings ensure the safety and durability of the system.

Additional information:

grade on the A105 certificate (P280GH, P245GH according to EN10222-2)
size, class, grade, melt are stamped on the coupler
on the certificate PED 97/23/CE & PED 2014/68/EU
execution according to ASME/18 -ASTM/14 SA/A105 Sect II Part A
thread is not made through the whole coupler, with NPT thread this is not feasible

More about half couplings, you may find here>>

Our offer includes a wide range high-pressure half couplings and fittings. If you have any questions contact us. Call +48 632614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
