Cap 1'' XS SCH80 ASTM A234 WPB ASME B16.9
Regular price:
Regular price:
product unavailable
add to wish list
Description

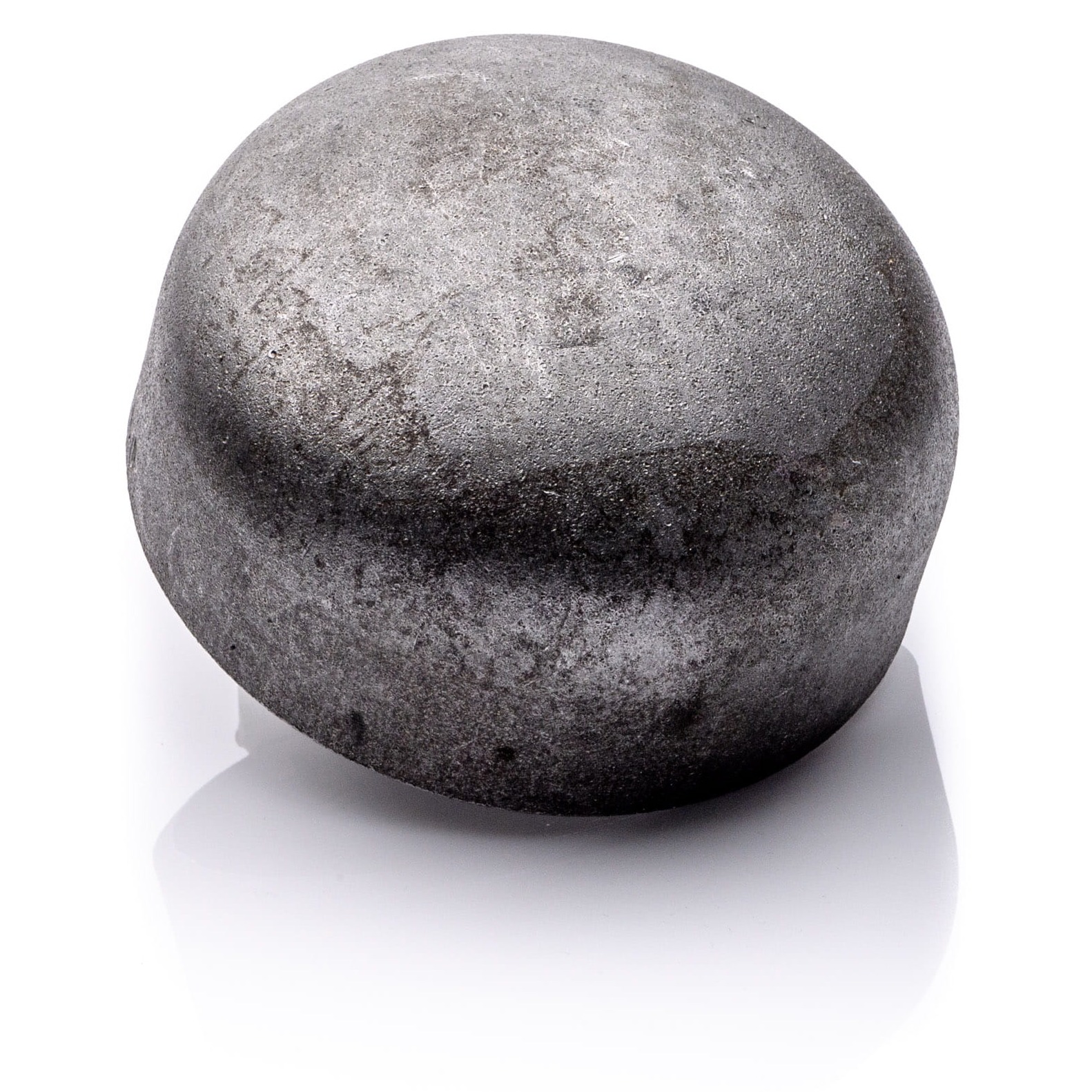

Cap 1'' XS SCH80 ASTM A234 WPB ASME B16.9
- Size: 1''
- Wall thickness: XS / SCH80
- Material: ASTM A234 WPB boiler steel
- Excellent weldability
- Manufactured according to: ASME B16.9
- Applications: closing and sealing the ends of steel piping systems
Alternative Name: Cap 1'' XS SCH80 ASTM A234 WPB ASME B16.9, butt weld pipe cap, welding cap, carbon steel pipe cap, end cap, boiler steel cap, pipe end closure.
Information
Cap 1'' XS SCH80 ASTM A234 WPB ASME B16.9 is a butt weld pipe cap designed to close the ends of steel pipelines. It is welded directly to the pipe, providing a strong, permanent, and leak-tight end closure for pressure piping systems.
A234 WPB Steel
ASTM A234 WPB is a carbon steel grade intended for medium- and high-temperature service. It is the standard material used for manufacturing butt weld pipe fittings and is widely used in industrial piping systems worldwide. Equivalent grades include K18, A106, and St45.8.
The designation WPB stands for:
- W – Weldable
- P – Pressure service
- B – Minimum specified yield strength
A234 WPB is one of the most widely used materials for carbon steel pressure piping systems.
Advantages of ASTM A234 WPB
- Excellent weldability
- Good cold-forming properties
- Good hot-forming properties
We also offer pipe caps in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or send your enquiry to biuro@polberis.pl.
Cap 1'' XS SCH80 ASTM A234 WPB ASME B16.9 is also available in other sizes from our product range.
Learn more about pipe caps here >>
