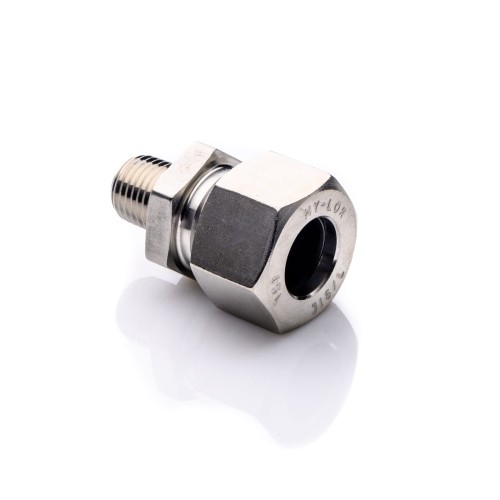

Screw-in fitting 1/4'' NPT for pipe 10mm

Screw-in fitting 1/4'' NPT for pipe 15mm

Availability: on sale

Dispatched within: 24 hours

Gross price: €14.65

incl. 23% TAX, excl. shipping costs

Regular price:

14.65

Net price: €11.91

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 11644D

Description

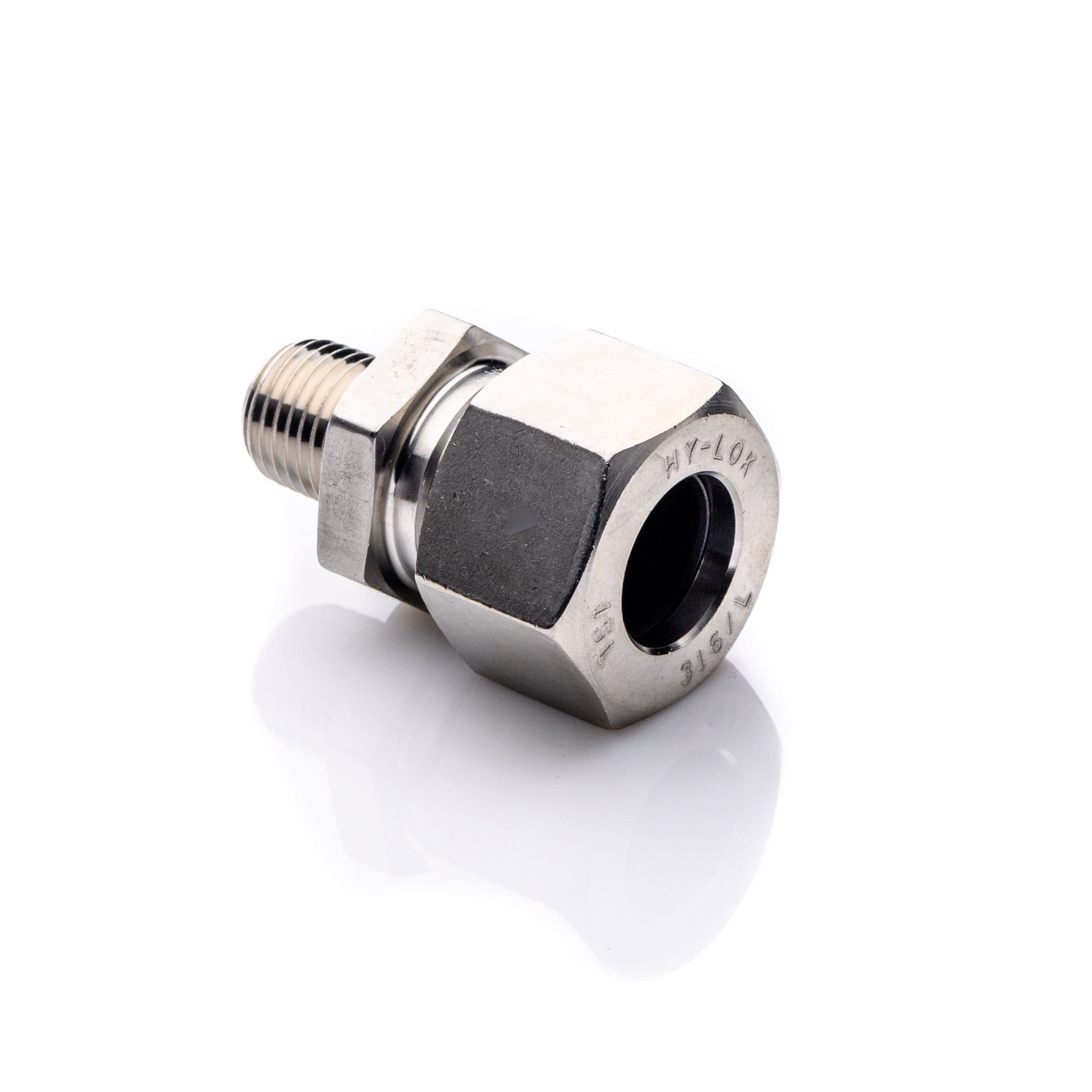

Screw-in fitting 1/4'' NPT for pipe 10mm

size: fits to pipe (hose) ϕ 10
cone 24 degrees
material: stainless steel
connector 1: male thread 1/4'' NPT (sealed on the thread)
connector 2: for pipe (hose) ϕ 10 mm
in the set: nipple + 1 nut + 1 barrel
sealing type: with cutting ring
execution acc. to the standard DIN 2353 ISO 8434-1
pressure: 315 bar
application: industrial systems, gas systems

Other name: Screw-in fitting 1/4'' NPT for pipe 15mm compression with barrel thread connector with a nut and cutting ring for hose or pipe of metric diameter

Information

Steel grade 316Ti - is a stainless steel with the addition of titanium and also with a low carbon content. It can be used in highly corrosive areas. It is very similar to 316 steel in terms of chemical composition and mechanical properties. The addition of titanium is intended to reduce intergranular corrosion when heated in the temperature range of 425-815°C.

Steel 1.4571 has an average carbon content of 0.06%, chromium 17%, nickel 12%, molybdenum 2%, titanium - less than 1%.

Other name: AISI316Ti 1.4571. SS316Ti X6CrNiMoTi 17-12-2

Applications of steel 1.4571: food industry, brewing industry, means of transport, ship tanks, for storage of liquefied petroleum gas (LPG), potrochemical industry, petroleum industry, pulp and paper industry, mining industry.

Among the advantages of this grade is certainly that it is a non-magnetic steel with excellent ductility, impact strength, excellent weldability, good toughness, and has a wide operating temperature range.

Since the tapered thread (NPT) is formed by a helical cut on the outer or inner tapered surface, a tight connection is ensured without the need for additional sealing.

Undoubtedly, the advantage of compression fittings among which is the Screw-in fitting 1/4'' NPT for pipe 10mm, is that you can reuse them, with proper installation. On the other hand, if you remove them, make sure you reduce the pressure in the system.

How to install a compression fitting on a tube?

Clean the tube from dirt and any burrs
Slide the nut and the ring (barrel) onto the end of the tube
Slide the tube into the socket of the fitting and turn the nut by hand
Then tighten the nut with a wrench for 1 or 1 1/4 turns ( depending on the size). To do this, it is convenient to mark yourself a dot on the nut with a marker so that you can be sure that you are tightening the nut correctly. You can use a flat wrench or a frog to do this.

Our offer includes also other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl

More information about fittings and nipples you may find here>>

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
