Nipple 1/4'' NPT A350 LF2 cl.3000

Availability: on sale
Dispatched within: 24 hours
Gross price: €7.62
incl. 23% TAX, excl. shipping costs
7.62
Net price: €6.20
excl. 23% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Pin It

Description

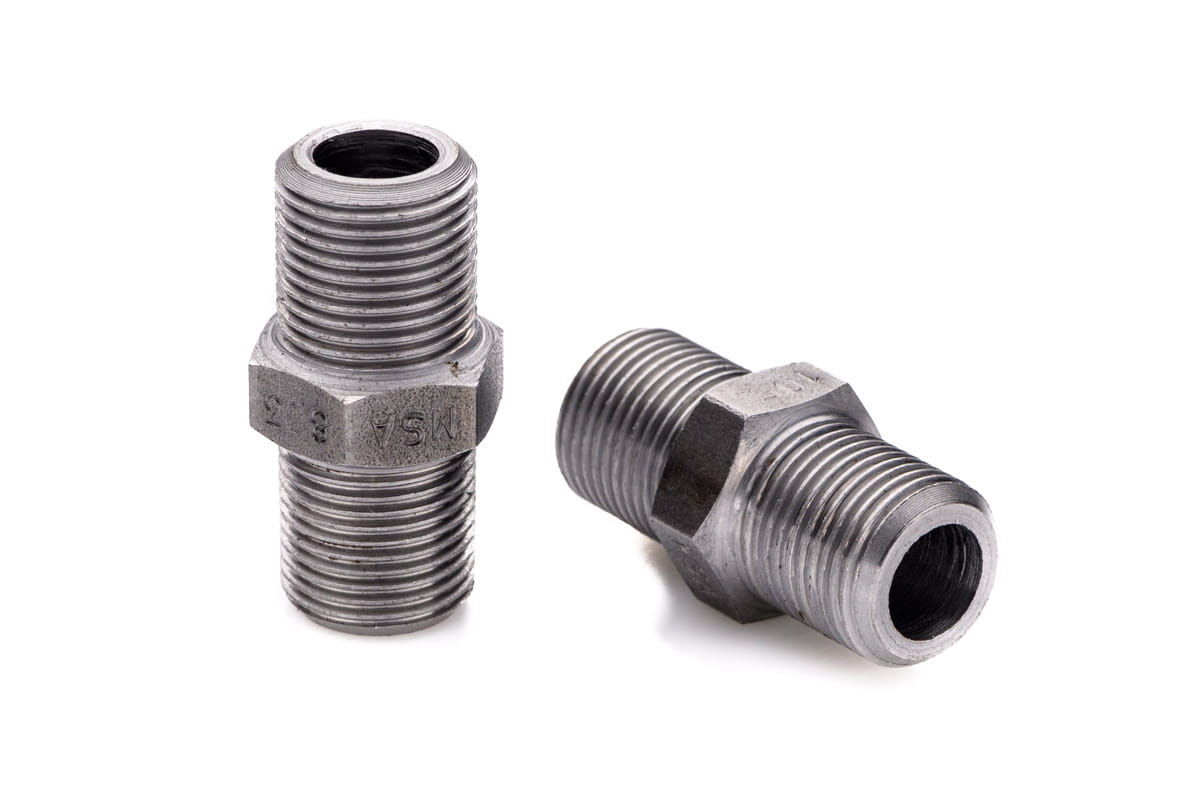

Nipple 1/4'' NPT A350 LF2 cl.3000

  • size: 1/4'' (thread diameter: 12,9 ÷ 13,1mm)
  • tapered thread NPT American
  • material: carbon steel A350LF2 (properties P355NH S355J2 low temperature, high pressure)
  • steel for welding
  • pressure rating: 3000 lbs / 206 bar
  • temperature application range: from -46°C to +343°C
  • impact testing at - 46 °C
  • certificate 3.1 at the request of the customer (free of charge)
  • application: industry, pressure tanks, machinery production, hydraulic systems, external systems, for crude oil and gas industry
  • execution acc. to ASME B16.11, BS3799-74, ANSI/ASME B1.20.1-2013, PED 97/23/EC
  • origin: European Union



dimension B [mm] = 8

dimension A [mm] = 16

dimension W [mm] = 36

dimension C [mm] = 6

dimension E [mm] = 15

Other name: Nipple 1/4'' NPT A350 LF2 cl.3000 two-sided nipple fitting connector adapter steel male thread male fitting BSP Rp double zinc plated P355GH A350LF2 carbon steel

Information


Nipple 1/4'' NPT A350 LF2 cl.3000 - belongs to a group of threaded fittings,“high-pressure couplings”. The nipples are available in all inch sizes. They ensure the safety and durability of the system. All threaded fittings have 3.1 certificates.

Steel grade A350 LF2 – high-quality steel, used for forged fittings, flanges, valves and connectors. Intended mainly for operation in low temperatures and systems with high requirements. Weldable steel. Suitable for use at temperatures to -20°F (LF1) -50°F (LF2) and -150°F (LF3).

  • A/SA350-LF2 CL1 / CL2
  • A/SA350-LF3 CL1

Properties similar to grades: S355J2 1.0570 A333 Grade 2 P355NH

Application: industry, pressure tanks, machinery production, hydraulic systems, external systems, for crude oil and gas industry

Our offer includes also nipples and fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl

More information about fittings and nipples you may find here>>

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
