Coupling 1/2'' BSP A350 LF2 cl.3000

Availability: on sale
Dispatched within: 24 hours
Gross price: €7.80
incl. 23% TAX, excl. shipping costs

Regular price:

7.80
Net price: €6.34
excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list
Pin It

Description

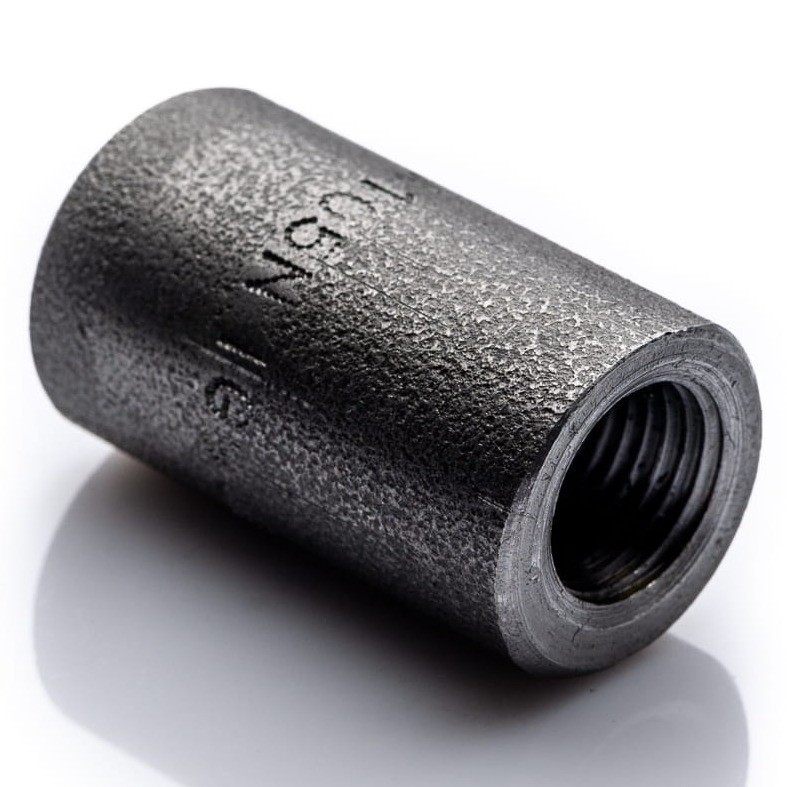

Coupling 1/2'' BSP A350 LF2 cl.3000

  • size: 1/2'' (thread diameter: 18,6 ÷ 19mm)
  • thread type: BSP (standard, otherwise known as cylindrical, straight, pipe, Rp, G)
  • material: carbon steel A350LF2 (properties P355NH S355J2 low temperature, high pressure)
  • steel for welding
  • pressure rating: 3000 lbs / 206 bar
  • temperature application range: from -46°C to +343°C
  • impact testing at - 46 °C
  • certificate 3.1 at the request of the customer (free of charge)
  • application: industry, pressure tanks, machinery production, hydraulic systems, external systems, for crude oil and gas industry
  • origin: European Union

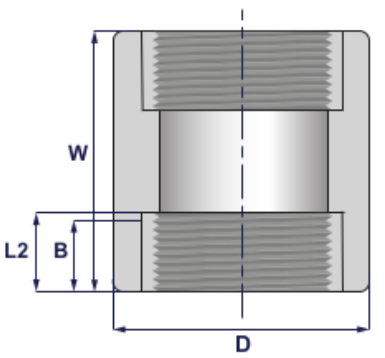

  • dimension W = 48mm
  • dimension D = 28mm
  • thickness of the wall = 4,8mm
  • material on the certificate SA/A350 LF2 (properties similar like: P355NL1 P355NH P355QH L360NB 1.0566 1.0562 A420-WPL6 A333-Gr.6 StE 355)
  • PED 97/23/EC - ISO 9001 B16.11-2011 BS3799-74, ANSI/ASME B1.20.1-2013 MR0175-2009/ISO 15156 / MSS SP25-L.E.

Other name: threaded coupling Carbon Steel class 3000 Inch Pipe BSP Rp BSPP G tapered forged ASTM A350LF2 thrd fittings female threat F coupling 1'' BSP A350 LF2 cl.3000





Steel grade A350 LF2 – high-quality steel, used for forged fittings, flanges, valves and connectors. Intended mainly for operation in low temperatures and systems with high requirements. Weldable steel. Suitable for use at temperatures to -20°F (LF1) -50°F (LF2) and -150°F (LF3).

  • A/SA350-LF2 CL1 / CL2
  • A/SA350-LF3 CL1

Properties similar to grades: S355J2 1.0570 A333 Grade 2 P355NH

Application: industry, pressure tanks, machinery production, hydraulic systems, external systems, for crude oil and gas industry

Marking: each coupling is stamped with size, grade, melt and pressure rating. Sometimes also with the type of thread (execution and marking is in compliance with the applicable standards).



Our offer includes also couplings and fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl

More information about couplings and fittings you may find here>>

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.

Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
