Angle union 2'' 90 degrees 316

Śrubunek kątowy 2'' stożkowy gat. 316 nierdzewny 90 stopni gwint BSP holender GW-GW

Availability: on sale

Dispatched within: 24 hours

Gross price: €38.87

incl. 23% TAX, excl. shipping costs

Regular price:

38.87

Net price: €31.61

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11424F

Description

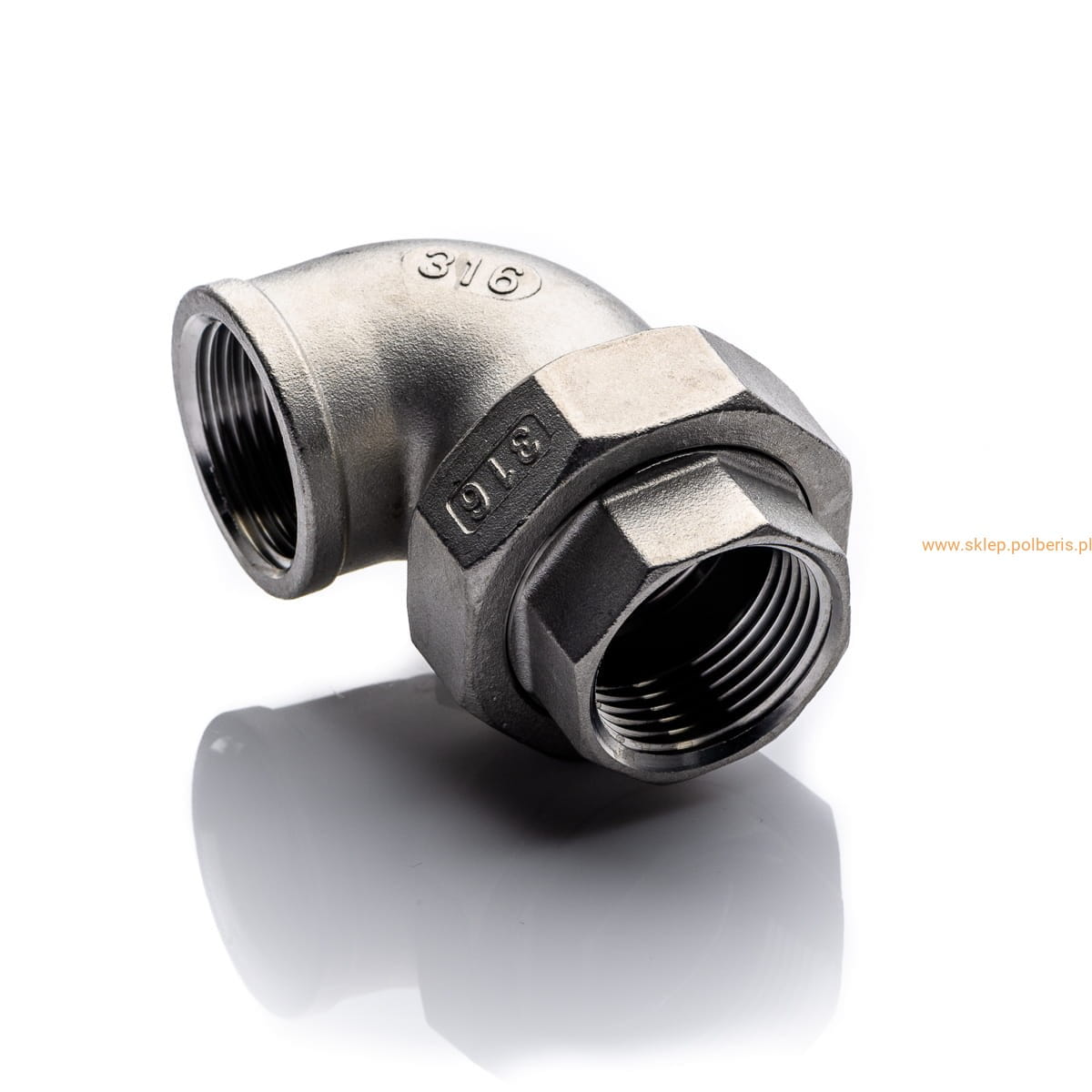

Angle union 2'' 90 degrees 316

size: 2'' (dimension: 56,5 ÷ 56,8mm)
material: stainless steel 316
conical seal (metal-to-metal)
90 degree angle
thread: BSP (standard Polish)
manufacturing: according to standards UNI EN ISO 226 UNI EN ISO 228 ISO 7/1 DIN 2999
application: hydraulic installations, central heating
on request: sanitary certificate

Other name: Angle union 2'' 90 degrees 316 : 11424F, Angle screw 2'' taper 316 grade stainless 90 degrees BSP thread holender GW-GW double coupling female thread acid inox standard polish

Information

Grade 316 / 316L - is undoubtedly a very popular stainless steel (austenitic) with high corrosion resistance. It has unquestionably excellent welding and forming properties. The initial steel produced for the paper industry, as it has been shown to be highly resistant to sulfur compounds used in paper processing. Certainly due to its anti-corrosion properties, 316 austenitic steel, is the most widely used steel of the corrosion-resistant group. It is noteworthy that this grade is superior to grade 304 / 304L.

Without a doubt, among the advantages of this grade of steel, it should be mentioned that it is a non-magnetic steel, with excellent ductility, impact strength, excellent weldability, good strength as well, to work in a wide temperature range.

Other name: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L X2CrNiMo17-12-2

Stainless screws, including Angle union 2'' 90 degrees 316, are generally used in all industries and in central heating systems. They are used to connect fittings, pumps, industrial equipment, pipes, fittings, etc. Stainless steel 316 from which they are made prevents corrosion and withstands high temperatures.

More information about unions you may find here >>

Our offer includes also unions in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Shape	Angle
Size	2''
Material	Stainless Steel
Connection Type 1	BSP / G / Rp / Rc / BSPT Thread
Connection Type 2	BSP / G / Rp / Rc / BSPT Thread
