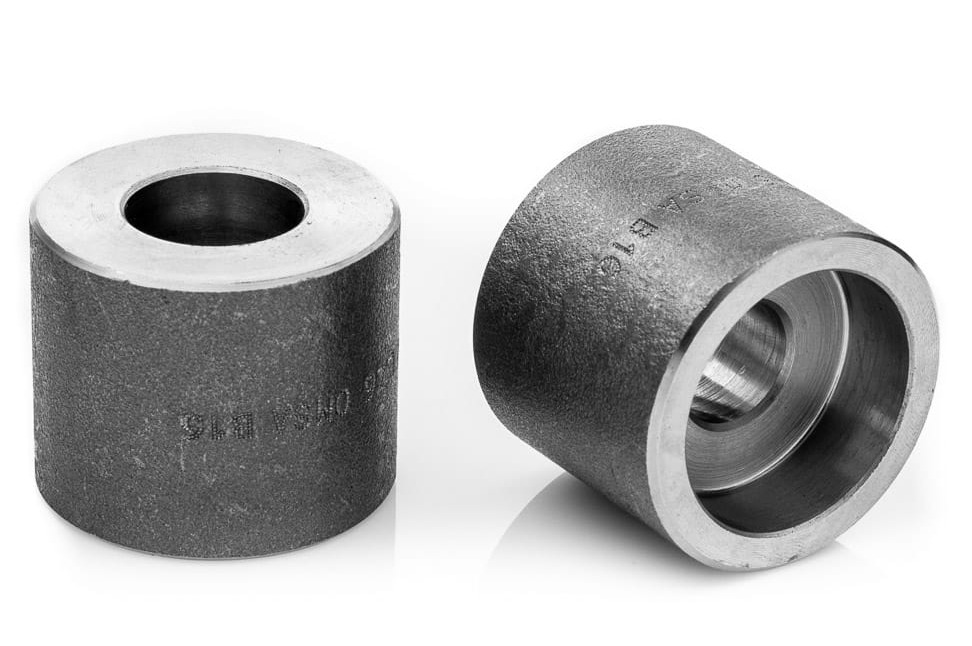

Coupling 1'' - 1/2'' socket weld A350 LF2 cl.3000

Availability: on sale
Dispatched within: 24 hours
Gross price: €12.84
incl. 23% TAX, excl. shipping costs

Regular price:

12.84
Net price: €10.44
excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list
Pin It

Description

Coupling1'' - 1/2'' socket weld A350 LF2 cl.3000

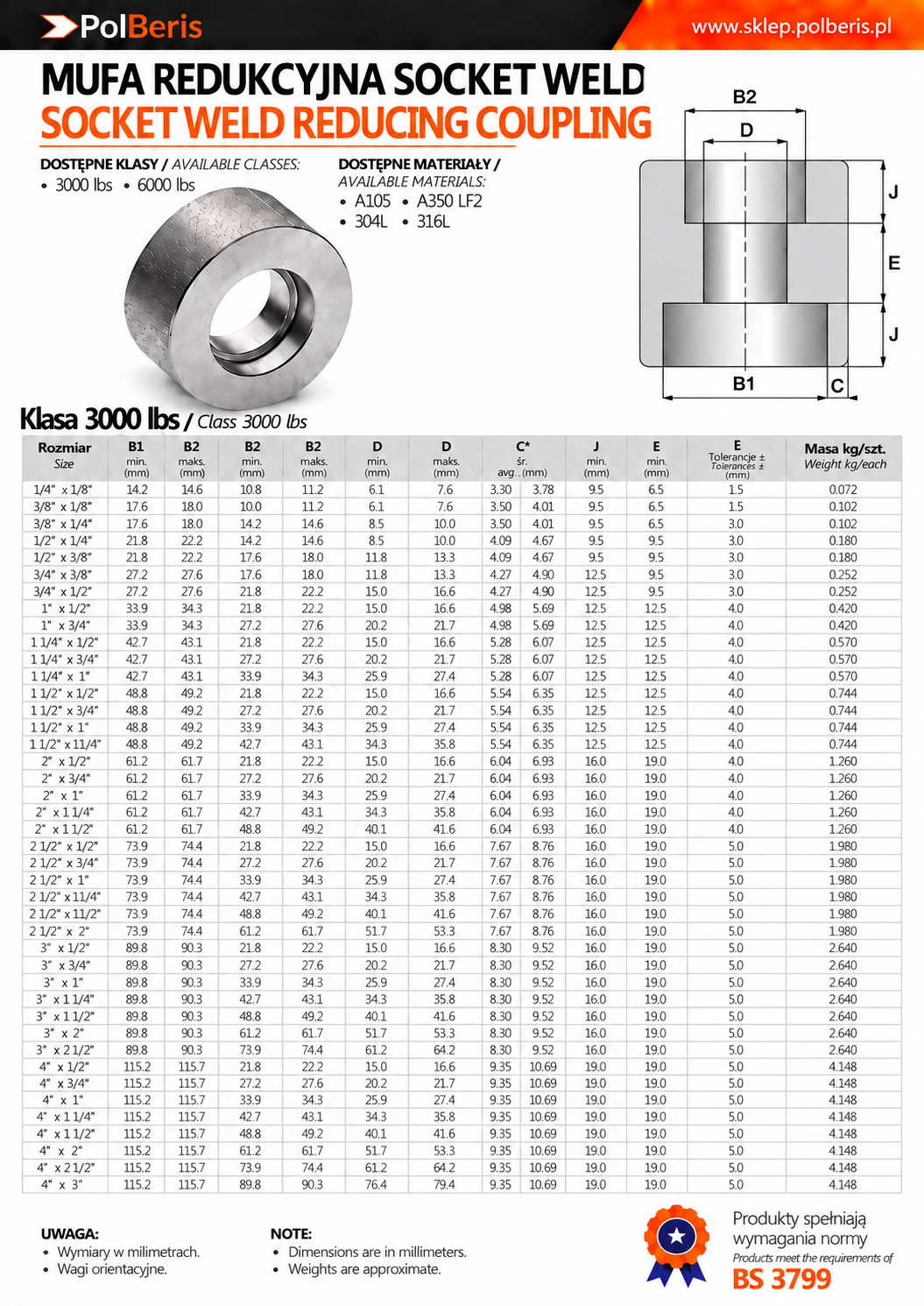

  • size: 1'' - 1/2''
  • dimension B2 = 22mm
  • dimension B1 = 34mm
  • material: A350 LF2 (equivalent to P355GH P355NH)
  • temperature: -46 -+350 stop. C
  • for welding
  • socket fittings for welding to ANSI B16.11 standard
  • pressure class: 3000lbs (206bar)
  • certification 3.1 on request (free of charge)
  • application: industrial installations, metallurgy, marine industry, refineries, boilers
  • origin: European Union

Inna nazwa: Coupling 1'' - 1/2'' socket weld A350 LF2 cl.3000 SW złączka wysokociśnieniowa kształtki kielichowe do wspawania łącznik mufowy do rur stal kotłowa P245GH P285GH

Information


Coupling 1'' - 1/2'' socket weld A350 LF2 cl.3000 belongs to the group of "high-pressure couplings", where the pipe is welded in a groove (pocket). The pocket welded to the pipe forms an airtight installation structure. The Socket Weld (SW) system guarantees the safety, durability and inseparability of the installation. With SW fittings, we can easily select the installation pressure. Each fitting is stamped with size, grade, melt and pressure class. All SW fittings are certified 3.1.

Advantages: the pipe does not need beveling for welding. Socket Weld fittings do not require special preparation, and are an alternative to threaded fittings.

Marking: each fitting is stamped with size, grade, melt and pressure class. Sometimes also the type of thread (execution and estimation are in accordance with the applicable standards).

Steel grade A350 LF2 - low-alloy steel, used for forged fittings, flanges, valves and couplings. Mainly intended for low-temperature operation. Weldable steel. Suitable for use at temperatures as low as -20°F (LF1) -50°F (LF2) and -150°F (LF3).

A/SA350-LF2 CL1 / CL2
A/SA350-LF3 CL1
Properties similar to grades: S355J2 1.0570 A333 Grade 2

Rating: each fitting is stamped with size, grade, melt and pressure class.

More information you will find here >>

Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
