Socket Weld Elbow 1" P355 LF2 Class 3000 45°

Kolano 1'' socket weld P355 LF2 kl.3000 45st

Availability: on sale

Dispatched within: 24 hours

Gross price: €11.38

incl. 23% TAX, excl. shipping costs

Regular price:

11.38

Net price: €9.25

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12713A

Description

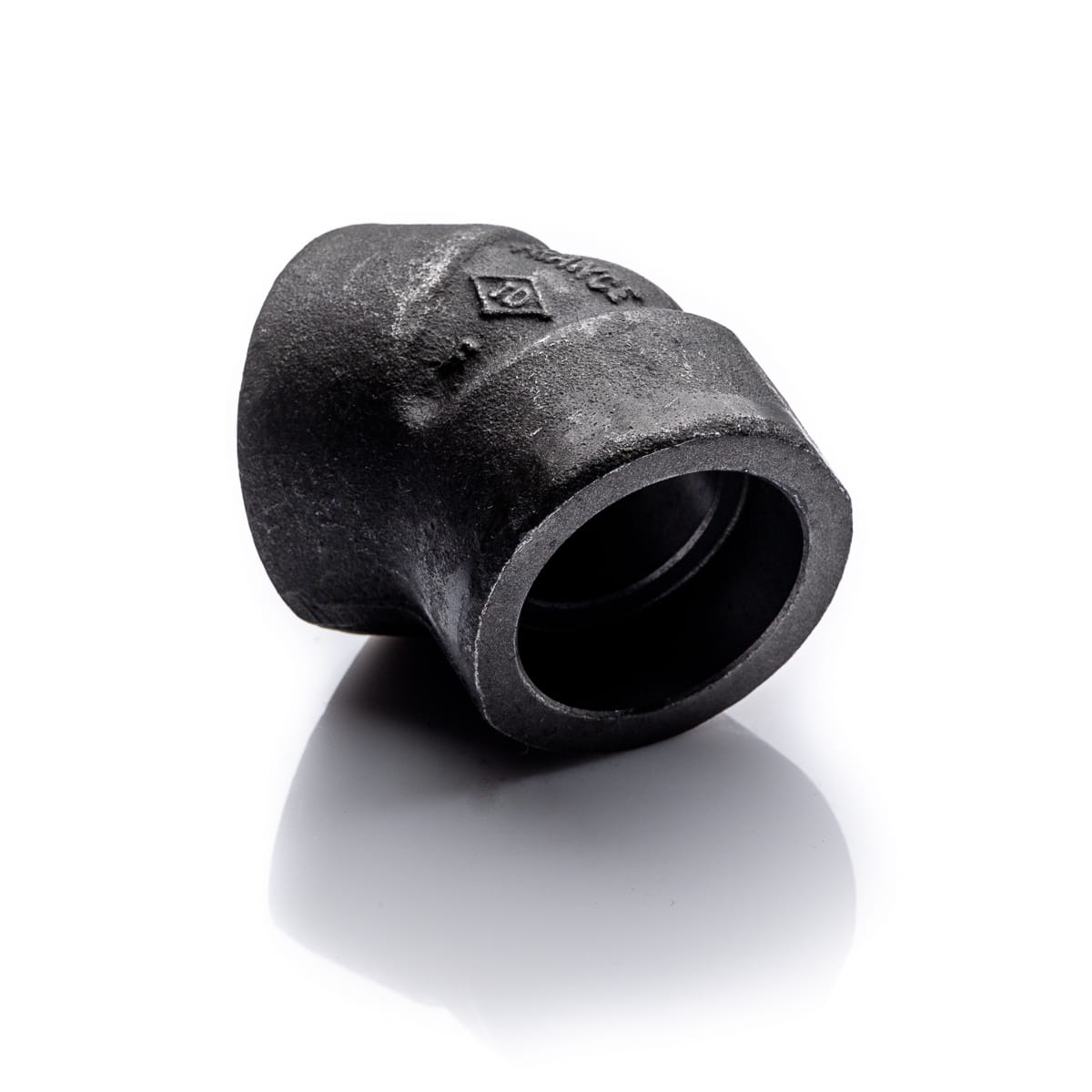

Socket Weld Elbow 1" P355 LF2 Class 3000 45°

Size: 1" (for DN25 pipe – 33.7 mm)
Pressure class: Class 3000 (206 bar)
Connection: Socket Weld (SW)
Material: ASTM A350 LF2 Class 1 (equivalent properties: P355NL1, P355NH, P355QH, L360NB, 1.0566, 1.0562, A420 WPL6, A333 Grade 6, StE355)
Impact tested at: -46°C
Heavy-wall high-pressure fitting
Steel suitable for low-temperature service
Suitable for welding
Manufactured according to: ANSI B16.11
Applications: Steel industry, marine industry, power generation, boilers, turbines, pressure vessels, industrial installations, demanding process systems, outdoor installations
3.1 material certificate available on request (free of charge)
Origin: European Union

Alternative Name

Socket Weld Elbow 1" P355 LF2 Class 3000 45°, SW Elbow, Socket Weld Fitting, High-Pressure Elbow, ASTM A350 LF2 Elbow, P355NH Elbow, S355J2 Socket Weld Elbow

Information

The 1" Socket Weld Elbow P355 LF2 Class 3000 45° belongs to the group of high-pressure Socket Weld fittings, where the pipe is inserted into the socket before welding. The welded socket creates a permanent, leak-tight connection. The Socket Weld (SW) system provides excellent strength, safety, and durability, making it ideal for high-pressure piping systems.

The socket design keeps the pipe securely positioned during welding, making installation easier and producing a stronger weld capable of withstanding higher pressures. All Socket Weld fittings are available with a 3.1 material certificate.

Material

ASTM A350 LF2 is a low-alloy forged steel designed for fittings, flanges, valves, and connectors operating at low temperatures. It is suitable for service down to:

LF1: -20°F
LF2: -50°F
LF3: -150°F

The material offers excellent weldability and impact resistance.

Comparable Material Grades

S355J2
1.0570
A333 Grade 2
P355NH
P355QH
P355NL1

Marking

Each fitting is permanently marked with:

Size
Material grade
Heat number
Pressure class

Advantages

High-pressure rating (206 bar)
Suitable for low-temperature service
Heavy-wall construction
Excellent weldability
Socket Weld connection
3.1 material certificate available

Applications

Pressure piping systems, power plants, boilers, turbines, refineries, offshore installations, marine industry, steelworks, pressure vessels, and demanding industrial applications.

We also offer a wide range of Socket Weld fittings in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Learn more about Socket Weld fittings here >>

Technical data

Bend Angle	45 Degrees
Radius	Other
Steel Grade	A350 LF2
Material	Carbon Steel
Size	DN25 ~ 1'' ~ 33,7mm
