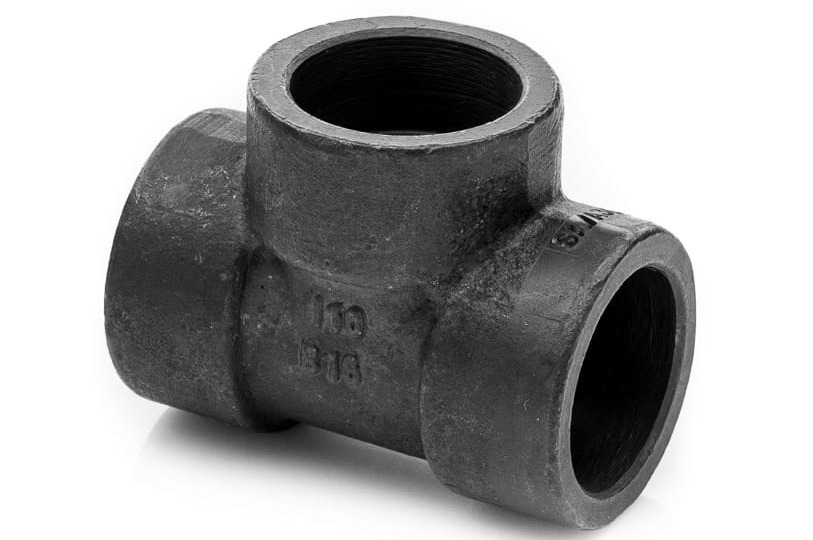

Tee 1/2'' socket weld P355 LF2 cl.3000

Tee 1/2'' socket weld P355 LF2 cl.3000

• size: 1/2''
• pressure class: 3000psi (206bar)
• thread type: socket weld "SW" (no thread, welding tee)
• material: SA350 LF2 CL1 (steel with similar properties: P355NL1 P355NH P355QH L360NB 1.0566 1.0562 A420-WPL6 A333-Gr.6 StE 355
• Impact test at -46°c
• thick-walled high-pressure tee
• steel grade resistant to minus temperatures
• weldable steel
• execution according to AISI B16.11 standard
• application: metallurgy, marine industry, power industry, boilers, turbines, pressure vessels, industrial installations, installations with high requirements, outdoor installations
• 3.1 certificate on request (free of charge)
• origin: European Union

Other name: Tee 1/2'' socket weld P355 LF2 cl.3000 Tee FFF SW socket weld fitting welding fitting S355J2 pressure tee inch socked weld P355NH A350 LF2

Information

Steel grade A350 LF2 - low-alloy steel, used for forged fittings, flanges, valves and couplings. Mainly intended for low-temperature operation. Weldable steel. Suitable for use at temperatures as low as -20°F (LF1) -50°F (LF2) and -150°F (LF3).

A/SA350-LF2 CL1 / CL2 A/SA350-LF3 CL1
Properties similar to grades: S355J2 1.0570 A333 Grade 2 P355NH P355QH P355NL1

Tee 1/2'' socket weld P355 LF2 cl.3000 (SW) belongs to the group of "high-pressure fittings", where the pipe is welded in a groove (pocket). The pocket welded to the pipe forms a tight structure of the installation. The Socket Weld (SW) system guarantees the safety, durability and inseparability of the installation. Such welding is highly praised by welders. The pipe during welding is inserted into the pocket and does not slip which gives better freedom. The weld can also withstand higher pressures. With SW fittings, we can easily select the pressure of the installation. All SW fittings are certified 3.1.

Marking: each fitting is stamped with size, grade, melt and pressure class.

More information you will find here >>

Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
