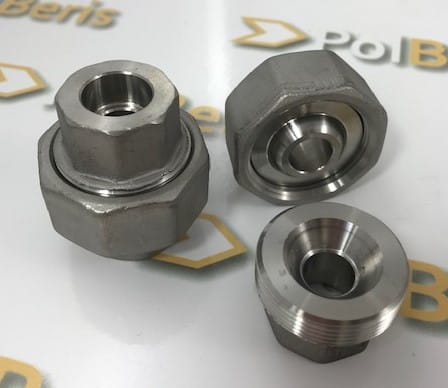

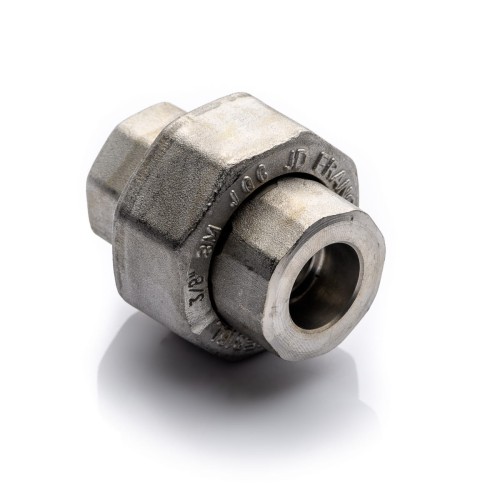

Union 1/2'' socket weld 304L cl.3000

Availability: on sale
Dispatched within: 14 days
Gross price: €40.21
incl. 23% TAX, excl. shipping costs

Regular price:

40.21
Net price: €32.69
excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list
Pin It

Description

Union 1/2'' socket weld 304L cl.3000

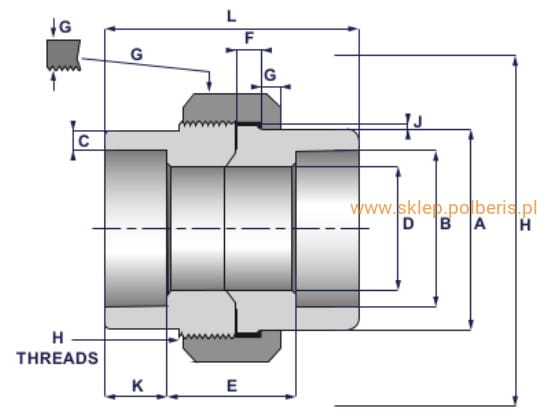

  • size: 1/2''
  • L=49mm
  • B= 21,7mm - 22,2mm
  • material: stainless steel for welding 304L / SS304L
  • pressure rating: 3000lbs (206bar)
  • union for welding acc. to MSS SP-83
  • conical sealing: metal - metal
  • high pressure union
  • intended use: boilers, industrial pressure systems, metallurgical engineering, sea industry, refineries
  • certificate 3.1 at the request of the customer (free of charge)
  • origin: European Union



Other names: Union 1/2" socket weld 304L cl.3000 1.4301 inox stainless steel screw connection forged B16.11 fitting for pipe pressure 3000 206bar

Information


Union 1/2'' socket weld 304L cl.3000 - belong to the group of “high-pressure fittings” where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.

Steel grade 304/304L – it is standard stainless steel (SS 304L). The most versatile and most often used, available in a wide range of products. Has excellent forming and welding properties.

Application: corrosive conditions, chemical industry, food industry, architecture, automotive industry

Other name: 1.4301 1.4306 1.4307 AISI304L

Other sizes available: 1/8’’ – ¼’’ – 3/8’’ –  ½’’-  ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’

Application: refineries, metallurgical engineering, sea industry, high-pressure systems, systems with high requirements, for high temperature A105, for low temperature LF2, boilers, pressure tanks, hydraulic systems, external systems, for crude oil and gas industry.

More information about socket weld fittings you will find here>>

Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
