Elbow 1/4" socket weld A105 cl.3000 90 degrees

Availability: on sale

Dispatched within: 24 hours

Gross price: €3.95

incl. 23% TAX, excl. shipping costs

Regular price:

3.95

Net price: €3.21

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 9103A

Description

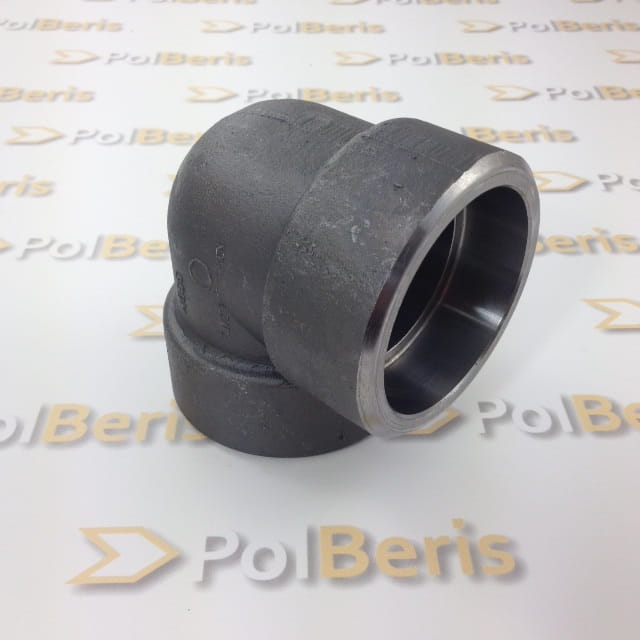

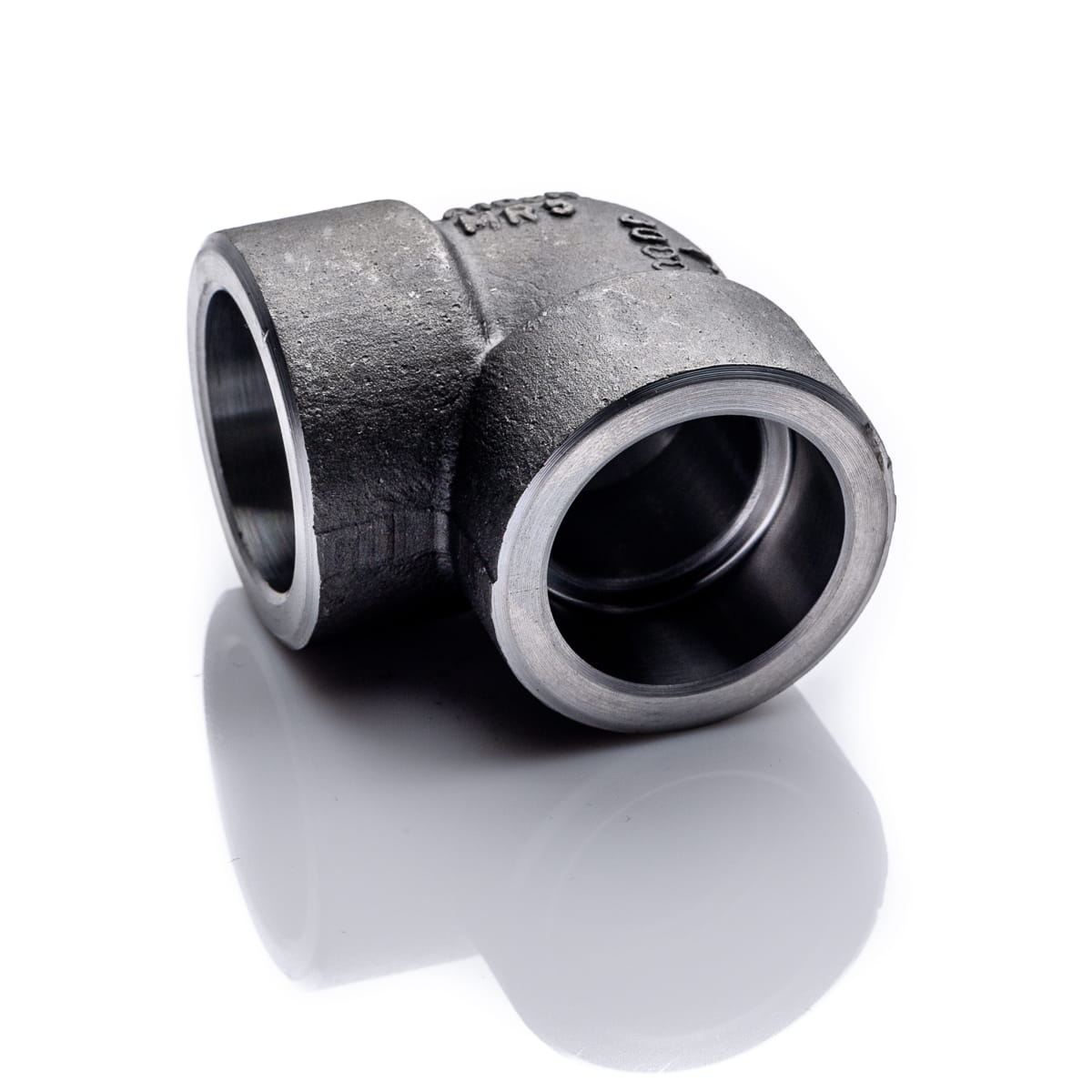

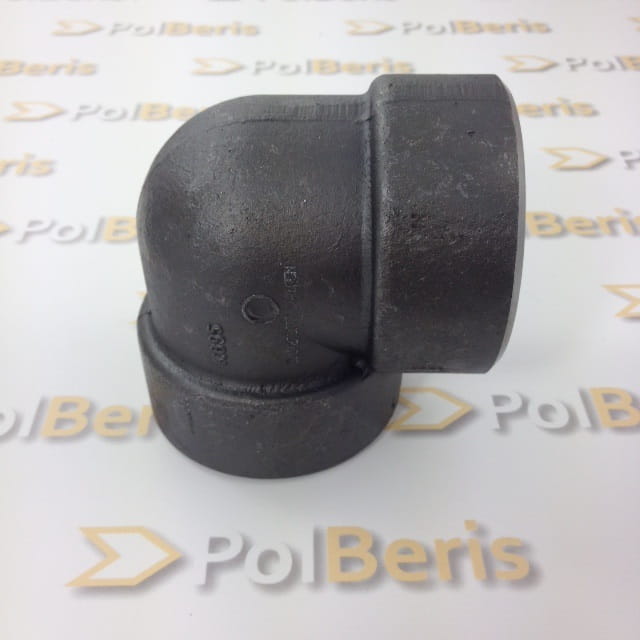

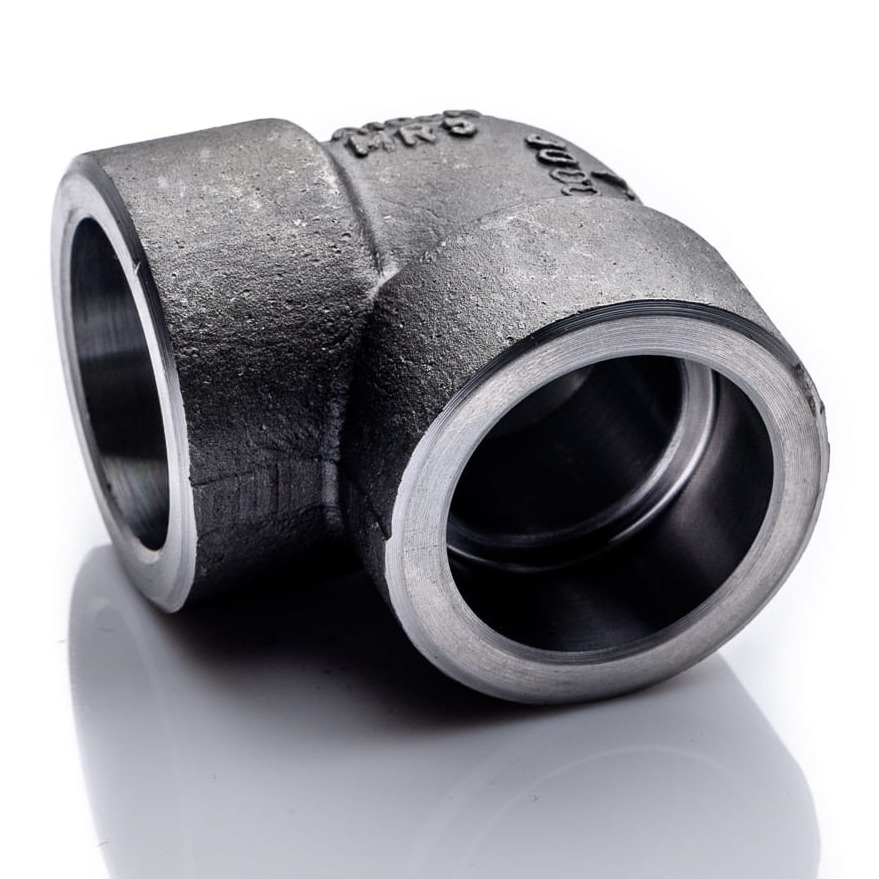

Elbow 1/4" socket weld A105 cl.3000 90 degrees

size : 1/4'' (DN8 = 13,5mm)
fits the pipe with a diameter of approx. 13,5mm
elbow for welding with socket weld "SW"
angle: 90 degrees
material: carbon steel A105 (P245GH, P280GH carbon steel for high temperatures, for high pressure)
pressure rating: 3000
pressure: 3000 Psi / 206 Bar
intended use: boilers, industrial pressure systems, metallurgical engineering, sea industry, refineries
bell fittings for welding acc. to ANSI B16.11
certificate 3.1 at the request of the customer (free of charge)
origin: European Union

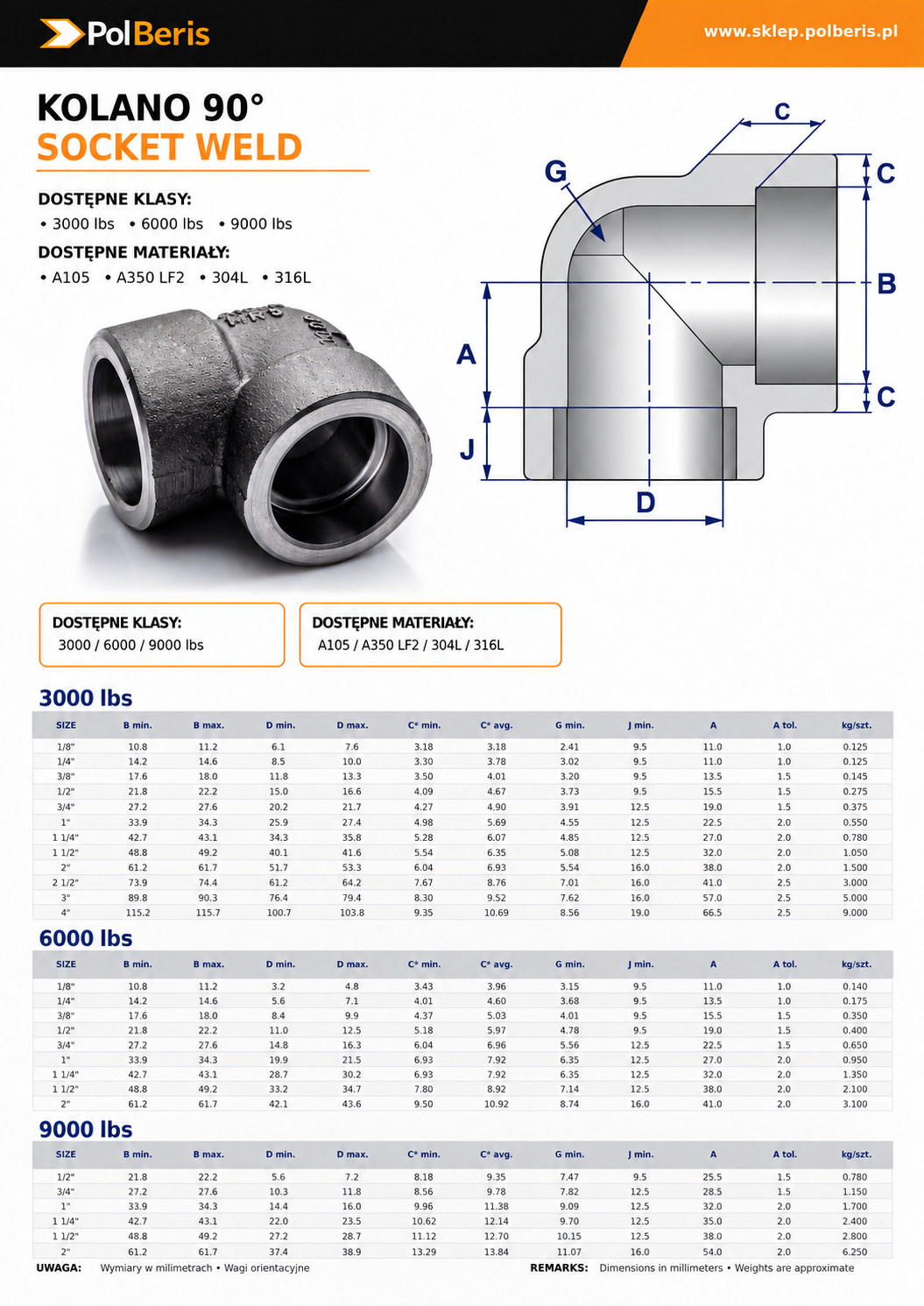

B = 1/4" (13,5 mm)

Other names: Elbow 1/4" socket weld A105 cl.3000 90 degrees bell elbow - elbow with socket - socket weld elbow - SW elbow fittings carbon steel A105N P235GH P265GH S355JR

Elbow 1/4" socket weld A105 cl.3000 90 degrees

Information

Socket Weld (SW) fittings belong to the group of “high-pressure fittings” where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.

Steel grade A105 – – it is carbon steel very often used for components of the pipelines, flanges and fittings. This grade of carbon steel is used for operation in ambient temperatures and higher, and operation in pressure systems. It has goods machining properties as in the case of each low-alloyed steel. Weldable steel.

The grade used in socket weld fittings, elbows, tees, joint kits, unions, flanges, joints etc.

Application: grade used for transport of crude oil and gas, in petrochemical plants, power plants, etc.

Properties similar to grades: : 1.0460 C22.8 P245GH P265GH

More information you will find here >>

Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Bend Angle	90 Degrees
Radius	Other
Steel Grade	A105
Material	Carbon Steel
Size	DN8 ~ 1/4'' ~ 13,5mm
