Elbow 1'' socket weld P355 LF2 cl.3000 90 degrees
Regular price:
Regular price:
product unavailable
add to wish list
Description

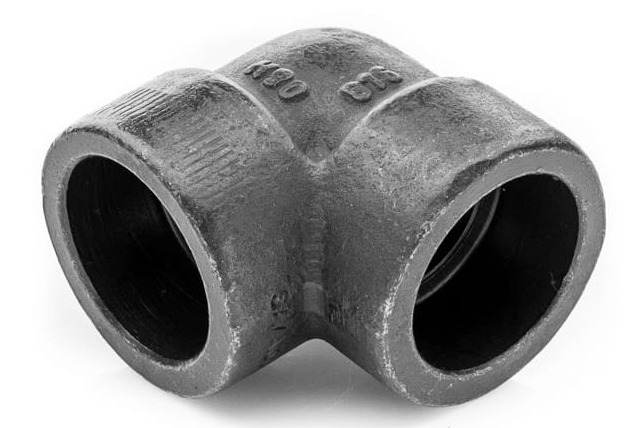

Elbow 1'' socket weld P355 LF2 cl.3000 90 degrees
- size: 1'' (tj. for the pipe DN25 33,7mm)
- pressure rating: 3000psi (206bar)
- elbow for welding with socket weld "SW"
- material: carbon steel A350LF2 (properties P355NH S355J2 P355NL1 P355QH L360NB 1.0566 1.0562 A420-WPL6 A333-Gr.6 StE 355 low temperature, high pressure)
- temperature application range: from -46°C to +343°C
- impact testing at - 46 °C
- high-pressure elbow
- socket weld fittings for welding acc. to AISI B16.11
- intended use: boilers, industrial pressure systems, metallurgical engineering, sea industry, refineries
- certificate 3.1 at the request of the customer (free of charge)
- origin: European Union
Other names: Elbow 1'' socket weld P355 LF2 cl.3000 90 degrees bell elbow - elbow with socket - socket weld elbow - SW elbow fittings carbon steel S355JR socked weld
Steel grade A350 LF2 – high-quality steel, used for forged fittings, flanges, valves and connectors. Intended mainly for operation in low temperatures and systems with high requirements. Weldable steel. Suitable for use at temperatures to -20°F (LF1) -50°F (LF2) and -150°F (LF3).
- A/SA350-LF2 CL1 / CL2
- A/SA350-LF3 CL1
Properties similar to grades: S355J2 1.0570 A333 Grade 2 P355NH
Application: industry, pressure tanks, machinery production, hydraulic systems, external systems, for crude oil and gas industry
Elbow 1'' socket weld P355 LF2 cl.3000 90 degrees belong to the group of Socket Weld SW where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.
More information you will find here >>
Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
