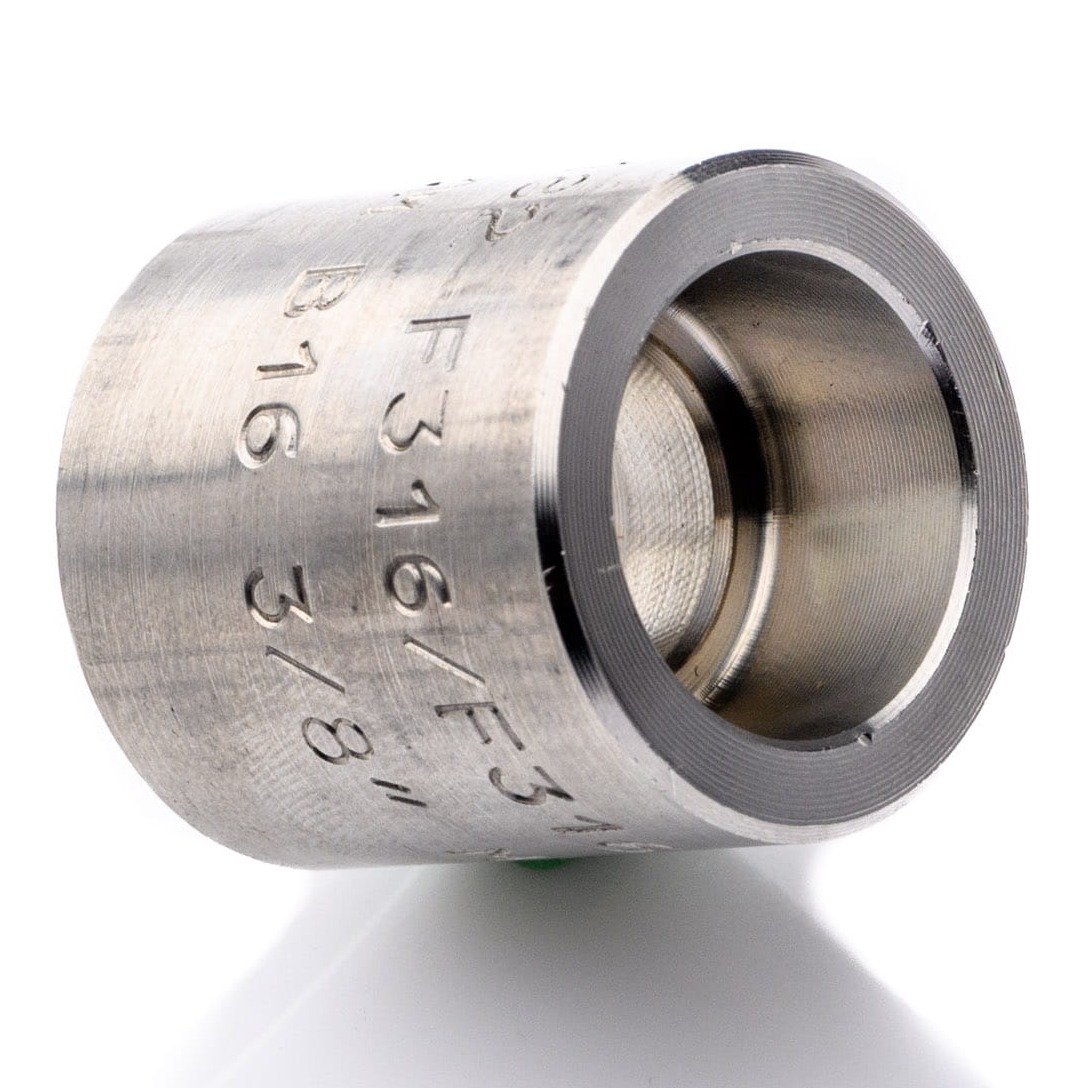

Coupling 3/8" socket weld 316L cl.3000

Mufa 38 3000 SW 316L nierdzewna kielichowa 17,2mm do spawania łącznik mufowy do rur 38'' nierdzewna kwasoodporna.jpg

Availability: on sale

Dispatched within: 24 hours

Gross price: €7.66

incl. 23% TAX, excl. shipping costs

Regular price:

7.66

Net price: €6.23

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 105B

Description

Coupling 3/8" socket weld 316L cl.3000

size: 3/8'' (fits pipe 17,2mm)
B=17,2mm
Weldable socket fitting to ANSI B16.11 standard
material: 316L
stainless steel ideal for welding
pressure class: 3000
certification 3.1 on request (free of charge)
application: industrial installations, metallurgy, marine industry, refineries, boilers
origin: European Union

Other name: Coupling 3/8" socket weld 316L cl.3000 stainless steel welding socket coupling for pipe SW coupling for pipe connection16 pressure class 3000

Information

Coupling 3/8'' socket weld 316L cl.3000 - belong to the group of “high-pressure fittings” where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.

Advantages: the pipe does not require beveling for welding. Socket Weld fittings do not require special preparation, and are an alternative to threaded fittings.

Description: each fitting is stamped with size, grade, melt and pressure class. Sometimes also the type of thread (the manufacture and rating is in accordance with current standards).

Steel grade 316 / 316L – this is a very popular stainless steel with high resistance to corrosion. It characterizes with great welding and forming properties.

Other name of 316/316L steel: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L

Applications of 316 steel: heat exchangers, pharmaceutical equipment, dairy, brewing industry, marine fittings, coastal architecture, food industry.

Advantages of 316 / 316L material: non-magnetic steel, excellent ductility, excellent impact strength, excellent weldability, good strength, wide operating temperature range

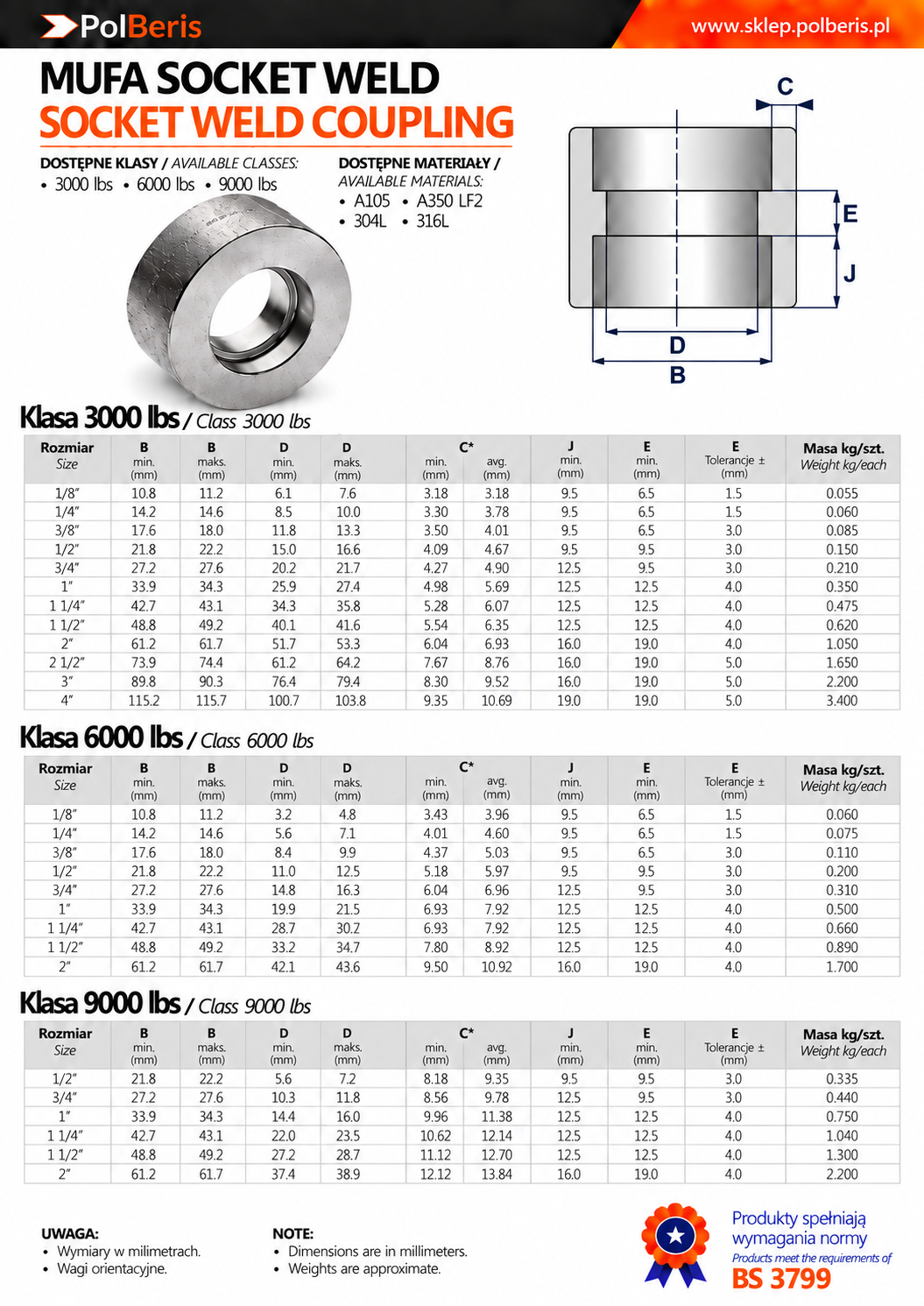

Other sizes available: 1/8’’ – ¼’’ - 3/8’’ - ½’’- ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’ – 3 ½’’ - 4’’

More information about socket weld fittings you will find here>>

Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
