Reducing Tee 1" x 3/4" Socket Weld P355 LF2 Class 3000
Regular price:
Regular price:
product unavailable
add to wish list
![Pin It](http://pinterest.com/pin/create/button/?url=https://sklep.polberis.pl/en_US/p/Reducing-Tee-1-x-34-Socket-Weld-P355-LF2-Class-3000/13922&media=//sklep.polberis.pl/userdata/public/gfx/26485/Trojnik-1-SW-P355-LF2-kl.3000-A350-Z6K_6352.jpg&description=Reducing Tee 1" x 3/4" Socket Weld P355 LF2 Class 3000 "Pin It")
Description

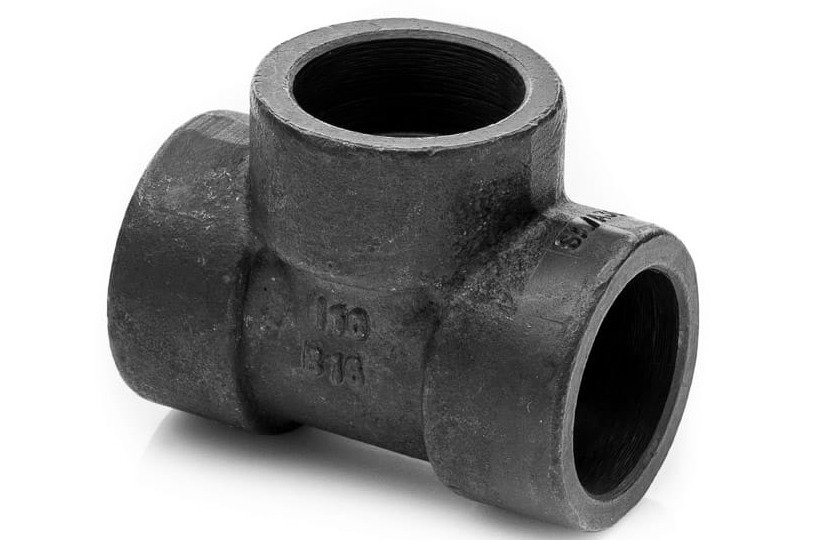

Reducing Tee 1" x 3/4" Socket Weld P355 LF2 Class 3000
- size: 1" × 3/4"
- pressure class: 3000 PSI (206 bar)
- connection type: Socket Weld "SW" (no thread, welding fitting)
- material: SA350 LF2 CL1 (steel with similar properties: P355NL1, P355NH, P355QH, L360NB, 1.0566, 1.0562, A420-WPL6, A333-Gr.6, StE355)
- impact test at -46°C
- heavy-wall high-pressure tee
- steel grade suitable for low-temperature service
- weldable steel
- manufactured according to ASME B16.11
- application: steel industry, marine industry, power generation, boilers, turbines, pressure vessels, industrial installations, demanding industrial systems, outdoor installations
- 3.1 certificate available on request (free of charge)
- origin: European Union
Alternative Name: Reducing Tee 1" x 3/4" Socket Weld P355 LF2 Class 3000 Tee FFF SW Socket Weld Fitting Welding Fitting S355J2 High Pressure Tee Inch Socket Weld P355NH A350 LF2
Information about the LF2 Steel Tee
A350 LF2 is a low-alloy steel used for forged fittings, flanges, valves and connectors. It is primarily intended for low-temperature service and offers excellent weldability. Suitable for temperatures down to -20°F (LF1), -50°F (LF2) and -150°F (LF3).
A/SA350-LF2 CL1 / CL2
A/SA350-LF3 CL1
Similar material grades: S355J2, 1.0570, A333 Grade 2, P355NH, P355QH, P355NL1.
Reducing Tee 1" × 3/4" Socket Weld P355 LF2 Class 3000 (SW) belongs to the family of high-pressure fittings where the pipe is welded into a socket. The welded socket forms a leak-tight piping system. The Socket Weld (SW) system provides safety, durability and permanent joint integrity.
This welding method is highly appreciated by welders because the pipe is inserted into the socket and remains properly aligned during welding, providing easier handling and improved joint quality. Socket Weld joints are also capable of withstanding higher operating pressures. SW fittings make pressure class selection simple, and all Socket Weld fittings are available with a 3.1 certificate.
Marking: each fitting is stamped with the size, material grade, heat number and pressure class.
More information you will find here >>
Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
