Nipple union 1/2'' BSP A105 kl.3000
Regular price:
Regular price:
product unavailable
add to wish list
Description

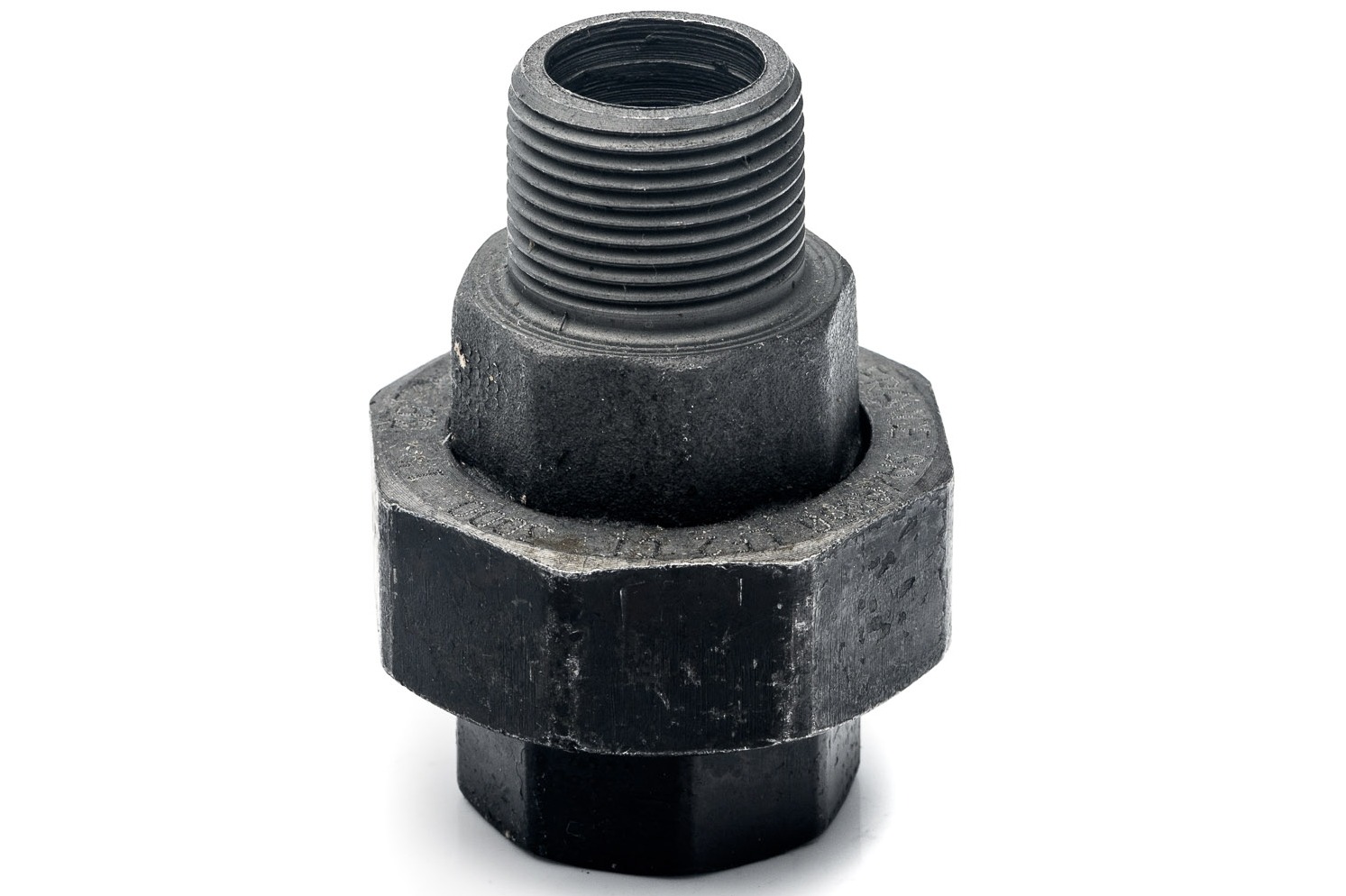

Nipple union 1/2'' BSP A105 kl.3000
- size: 1/2''
- external thread diameter 20.5 ÷ 20.9mm
- internal thread diameter 18.6 ÷ 19mm
- thread: BSP (standard Polish)
- material: boiler steel A105 (P245GH, P285GH)
- pressure class: 3000Psi i.e. 206 bar
- dimensions in accordance with MSS SP-83
- sealing: metal-to-metal (cone)
- applications: industry, metallurgy, refineries, boilers, tanks, installations with high requirements
- characteristics: for high pressure, for high temperature
- 3.1 certificate on request (free of charge)
- Origin: European Union

Other name: Nipple union 2'' BSP A105 kl.3000 carbon steel boiler screw thick-walled approved steel double-connector for high pressure, for high temperature MSS SP-83
Information
Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.
Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.
Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR
More information about unions can be found here>>
Our offer includes a wide range of high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
