Half coupling 1 1/2" socket weld A105 cl.3000
Regular price:
Regular price:
product unavailable
add to wish list
![Pin It](http://pinterest.com/pin/create/button/?url=https://sklep.polberis.pl/en_US/p/Half-coupling-1-12-socket-weld-A105-cl.3000/13038&media=//sklep.polberis.pl/userdata/public/gfx/27003/Polmufa-1-12-socket-weld-A105-kl.3000.jpg&description=Half coupling 1 1/2" socket weld A105 cl.3000 "Pin It")
Description

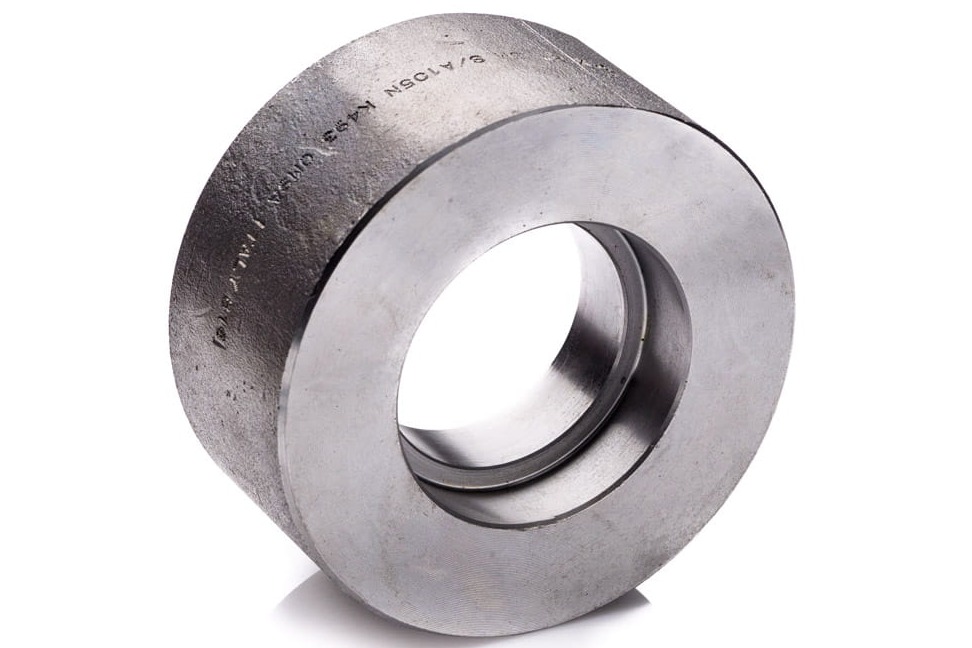

Half coupling 1 1/2" socket weld A105 cl.3000
- size: 1 1/2''
- dimension B = 48,8 - 49,2mm
- Fits Pipe 1 1/2'', i.e., 48.3 mm, DN40
- No Thread - the socket is for welding
- Pressure Class: 3000 (206 bar)
- Material Grade: A105 (Boiler Steel for Welding P245GH, P285GH)
- Welding Connector for Pipes
- Applications: Boilers, high-pressure installations, high-temperature installations, refineries, marine industry, metallurgy
- Certificate 3.1 upon customer request (free of charge)
- Origin: European Union
Information
The 1 1/2'' Socket Weld A105 Class 3000 Half-Socket belongs to the category of "high-pressure fittings," where the pipe is welded into the socket (recess). The socket welded to the pipe creates a leak-proof structure in the installation. The Socket Weld (SW) system guarantees safety, durability, and inseparability of the installation. With SW fittings, it is easy to select the pressure for the installation. Each fitting is marked with its size, grade, heat number, and pressure class. All SW fittings come with a 3.1 certification.
Advantages
- The pipe does not require bevelling for welding. Socket Weld fittings do not require special preparations and serve as an alternative to threaded fittings.
Marking
Each fitting is marked with its size, grade, heat number, and pressure class. It may also include the type of thread (the execution and marking comply with applicable standards).
Steel Grade A105
Steel Grade A105 is a carbon steel frequently used in piping components and fittings, such as the Socket Weld SW 1 1/2'' A105 3000. This carbon steel grade is used in pressure installations at ambient temperatures and above. It has good machinability, similar to other low-alloy steels. Grade A105 is well-weldable.
Applications
This grade is used for the transmission of oil and gas, in petrochemicals, power plants, pressure vessels, etc.
Similar Properties to Grades:
1.0460, C22.8, P245GH, P265GH, P285GH
You can find more about socket fittings here>
Other sizes of socket weld SW fittings are also available upon request. If you have any questions, please contact us. Call us at 63/2614202 or send an inquiry to the email: biuro@polberis.pl.
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
Technical data
| Coupling Type | Half Coupling |
| Material | Carbon Steel |
| Pressure | Pressure Range 101–250 bar |
| Connection 1 | 1 1/2'' |
| Thread Type – Connection 1 | Socket Weld (SW) |
| Connection 2 | 1 1/2'' |
| Thread Type – Connection 2 | For Welding |
