Cap 1'' socket weld 304L cl.3000
Regular price:
Regular price:
product unavailable
add to wish list
Description

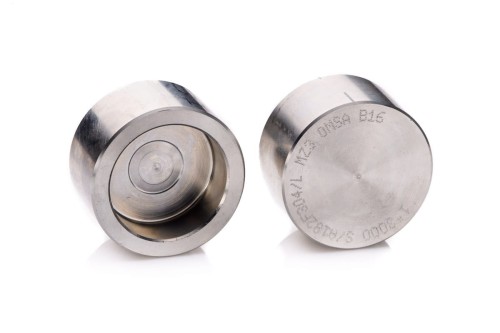

Cap 1'' socket weld 304L cl.3000

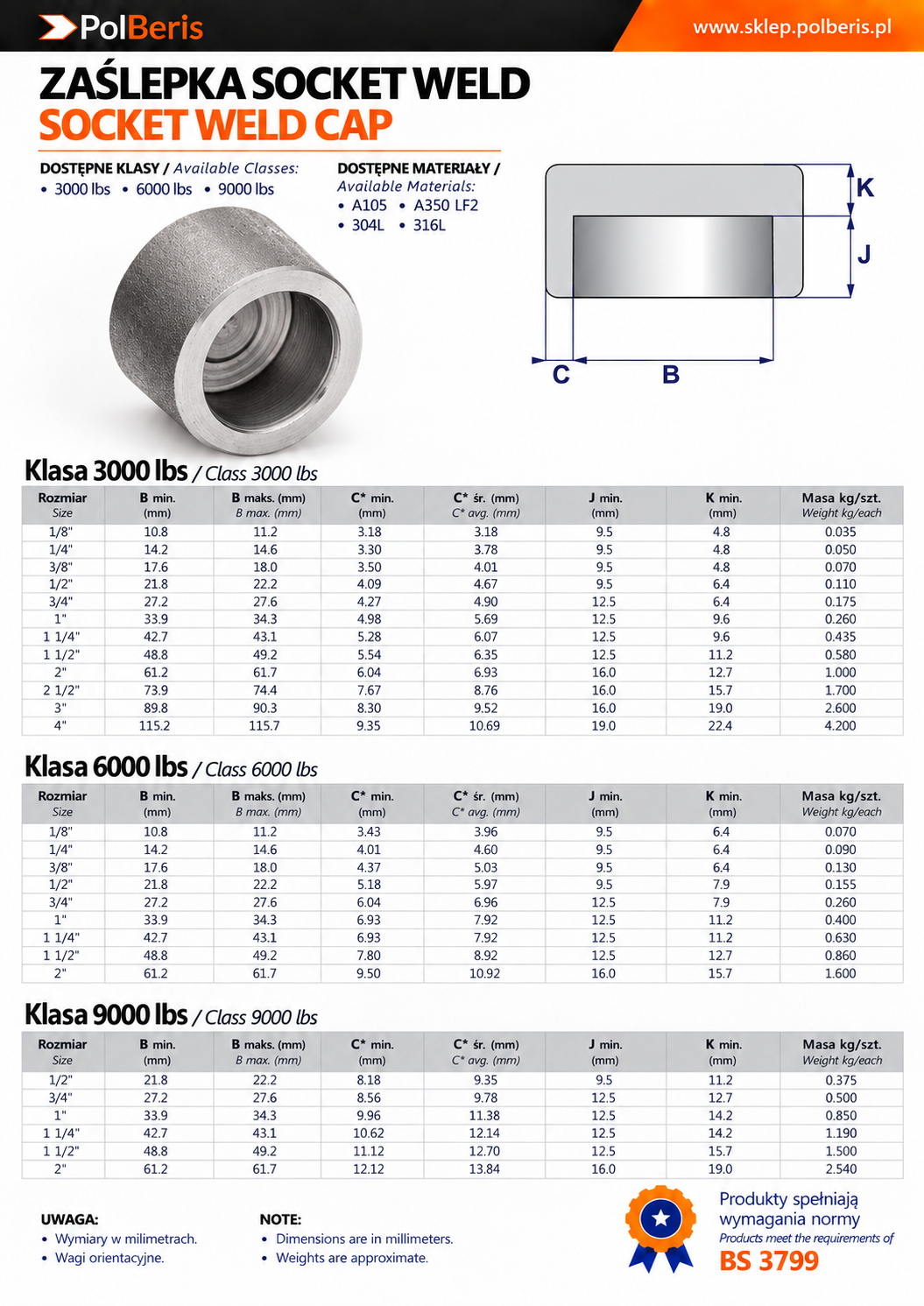

- size: 1'' (diameter inside 30,3÷30,8mm)
- material: stainless steel for welding 304L / SS304L
- pressure rating: 3000lbs (206bar)
- stainless steel for welding
- socket weld fitting (SW)
- steel plug used for safe closure of the pipes
- high pressure cap
- intended use: boilers, industrial pressure systems, metallurgical engineering, sea industry, refineries, pressure tanks, systems with high requirements
- certificate 3.1 at the request of the customer (free of charge)
- origin: European Union
Other names: Cap 1" socket weld 304L cl.3000 cap for welding, steel bottom, round cap, socket weld end cap, cap socket weld, bottom, 304L, 1.4404, SW
Information
Cap 1'' socket weld 304L cl.3000 - steel plug used for safe closure of the system. Used for systems with high requirements, industry, food production etc.
Socket Weld fittings (SW) belong to the group of “high-pressure fittings” where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.
Advantages: pipe does not require bevelling for welding. Socket Weld fittings do not require special preparations, they are an alternative for threaded union pieces.
Steel grade 304/304L – it is standard stainless steel (SS 304L). The most versatile and most often used, available in a wide range of products. Has excellent forming and welding properties.
Application: corrosive conditions, chemical industry, food industry, architecture, automotive industry
Other name: 1.4301 1.4306 1.4307 AISI304L
More information about socket weld caps you will find here>>
Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
