Gasket DN80/2 PN40 AF300
Regular price:
Regular price:
product unavailable
add to wish list
Description

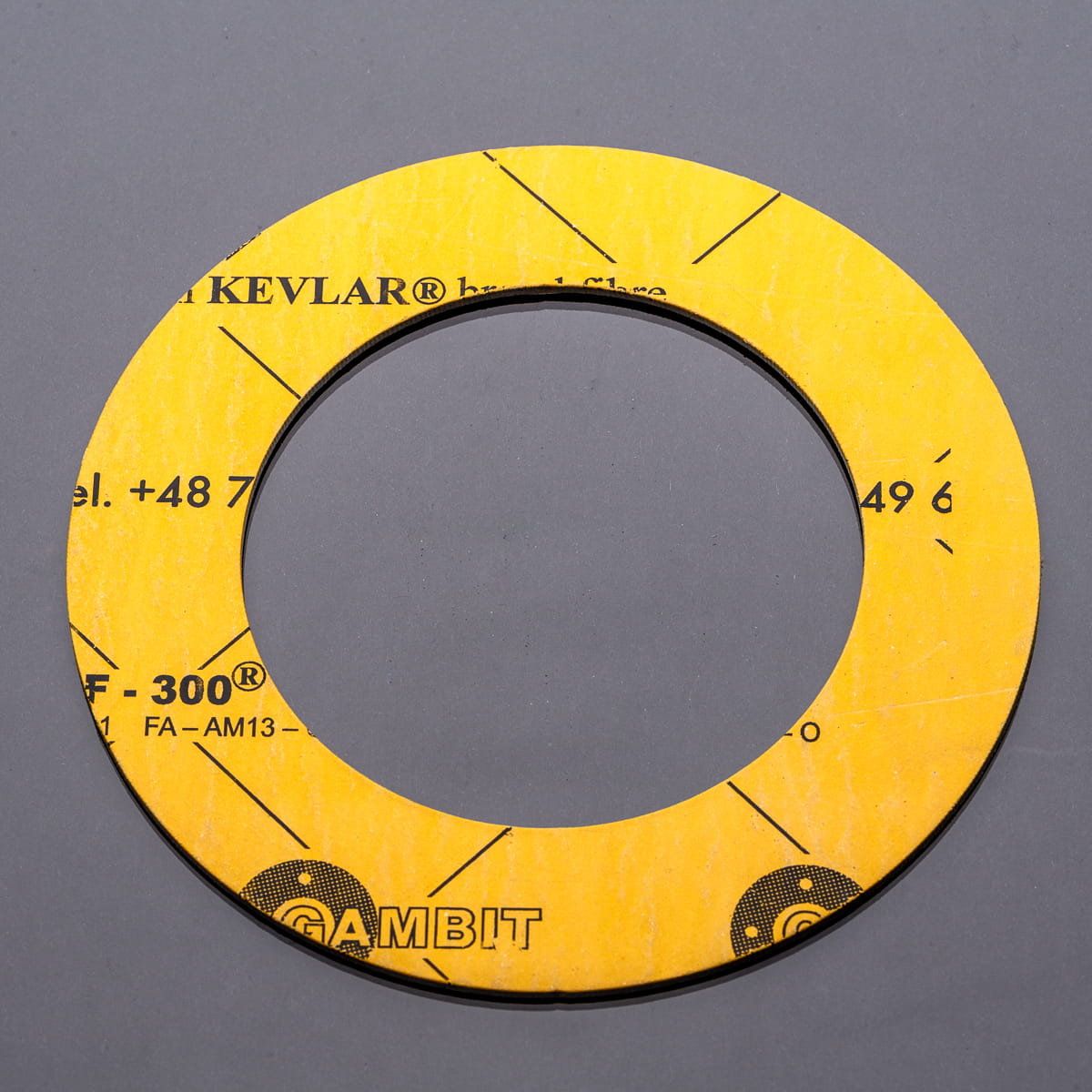

Gasket DN80/2 PN40 AF300
- size: DN80
- pressure rating: PN40
- thickness: 2 mm
- material: GAMBIT AF-300 sealing sheet – made from aramid and mineral fibers with a mixture of NBR, NR, and SBR rubbers
- maximum short-term operating temperature: 320°C
- maximum continuous operating temperature: 280°C
- maximum continuous operating temperature with steam: 220°C
- medium: water, steam, salt solutions, weak acids and alkalis

Application: Gasket DN80/2 PN40 AF300
Flexible sealing sheet that adapts to flange surface curvature and irregularities.
Recommended for water and steam installations in heating, energy, and municipal systems.
The sheet is resistant to brake and cooling fluids, making it suitable for automotive applications.
- Maximum operating pressure: 10 MPa
Example dimensions of IBC type gaskets (flat without holes, EN 1514-1, PN10):
- DN10 PN10 – 18x46x2 mm
- DN15 PN10 – 22x51x2 mm
- DN20 PN10 – 27x61x2 mm
- DN25 PN10 – 34x71x2 mm
- DN32 PN10 – 43x82x2 mm
- DN40 PN10 – 49x92x2 mm
- DN50 PN10 – 61x107x2 mm
- DN65 PN10 – 77x127x2 mm
- DN80 PN10 – 89x142x2 mm
- DN100 PN10 – 115x162x2 mm
- DN125 PN10 – 141x192x2 mm
- DN150 PN10 – 169x218x2 mm
- DN175 PN10 – 190x248x2 mm
- DN200 PN10 – 220x273x2 mm
- DN225 PN10 – 240x302x2 mm
- DN250 PN10 – 273x328x2 mm
- DN300 PN10 – 324x378x2 mm
- DN350 PN10 – 356x438x2 mm
Gaskets are made to order.
More about gaskets you may find here>>
We offer a wide range of seals and O-rings. If you are looking for a seal of a different grade or dimension that is not available in our store, please write to us. Our email: biuro@polberis.pl, phone: 632614202. We will prepare a quote for you.
If you want to know how much you will pay for transport to your country, write us an email: biuro@polberis.pl. We will send you an offer. If you have a European VAT number and don't want to pay TAX, write to us for an offer. Please free feel to contact us for any information
Technical data
| Size | DN80 ~ 3'' |
