Gasket 8 × 15 × 2 mm AF300 Yellow

Availability: on sale

Dispatched within: 24 hours

Gross price: €0.77

incl. 23% TAX, excl. shipping costs

Regular price:

0.77

Net price: €0.62

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 10741Y

Description

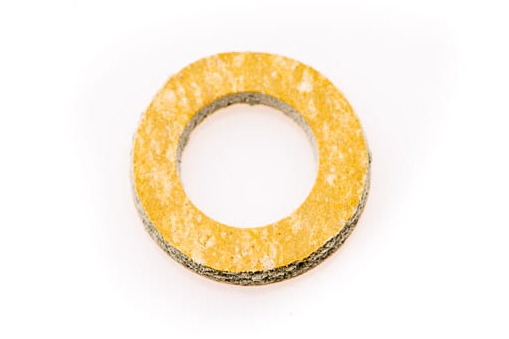

Gasket 8 × 15 × 2 mm AF300 Yellow

Dimensions: 8 × 15 × 2 mm
Inner diameter: 8 mm
Outer diameter: 15 mm
Thickness: 2 mm
Material: GAMBIT AF-300 compressed gasket sheet manufactured from aramid fibres, mineral fibres and a blend of NBR, NR and SBR rubber
Maximum peak temperature: +320°C
Maximum continuous operating temperature: +280°C
Maximum continuous steam temperature: +220°C
Compatible media: Water, steam, salt solutions, mild acids and alkalis

Alternative Name

Gasket 8 × 15 × 2 mm AF300 Yellow, AF300 Flat Gasket, Compressed Fibre Gasket, Industrial Sealing Gasket, Yellow Fibre Gasket, Flat Washer Gasket

Information

The 8 × 15 × 2 mm AF300 gasket is manufactured from GAMBIT AF-300 compressed gasket sheet, designed for sealing flange and mechanical joints operating with water, steam and mild chemical media. Its flexible construction adapts to uneven sealing surfaces, providing reliable sealing performance in industrial and heating systems.

Material

GAMBIT AF-300 is manufactured from aramid fibres, mineral fibres and a blend of NBR, NR and SBR rubber, providing excellent flexibility, durability and sealing performance.

Advantages

Maximum peak temperature: +320°C
Continuous operating temperature: +280°C
Continuous steam temperature: +220°C
Maximum operating pressure: 10 MPa
Excellent flexibility
Adapts to sealing surface irregularities
Resistant to brake and coolant fluids
Suitable for industrial and automotive applications

Applications

Suitable for:

Water installations
Steam systems
District heating
Power generation
Municipal utilities
Automotive industry
Cooling systems
Brake fluid applications

Compatible Media

Recommended for:

Water
Steam
Salt solutions
Mild acids
Mild alkalis

Custom Manufacturing

Gaskets are manufactured to order.

Typical IBC flat gasket dimensions according to EN 1514-1 PN10 are available from DN10 to DN350, including custom dimensions on request.

DN10 PN10 18X46X2mm
DN15 PN10 22X51X2mm
DN20 PN10 27X61X2mm
DN25 PN10 34X71X2mm
DN32 PN10 43X82X2mm
DN40 PN10 49X92X2mm
DN50 PN10 61X107X2mm
DN65 PN10 77X127X2mm
DN80 PN10 89X142X2mm
DN100 PN10 115X162X2mm
DN125 PN10 141X192X2mm
DN150 PN10 169X218X2mm
DN175 PN10 190X248X2mm
DN200 PN10 220X273X2mm
DN225 PN10 240X302X2mm
DN250 PN10 273X328X2mm
DN300 PN10 324X378X2mm
DN350 PN10 356X438X2mm

We also offer this product in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.
