Elbow 1 1/4'' socket weld 316L cl.3000 90 degrees

Kolano 1.1/4'' socked weld 316L kl.3000 90st.

Availability: on sale

Dispatched within: 24 hours

Gross price: €60.39

incl. 23% TAX, excl. shipping costs

Regular price:

60.39

Net price: €49.10

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 9857H

Description

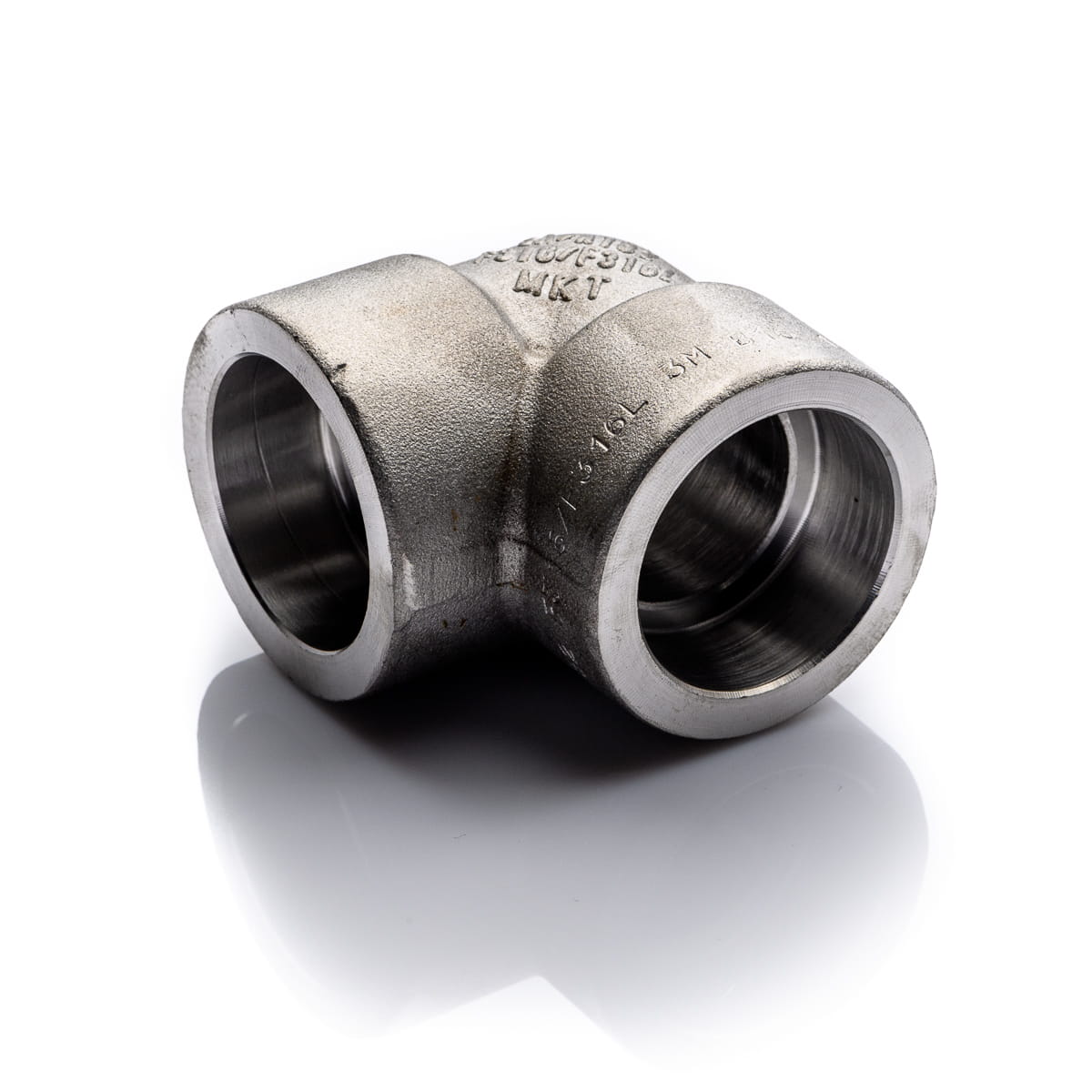

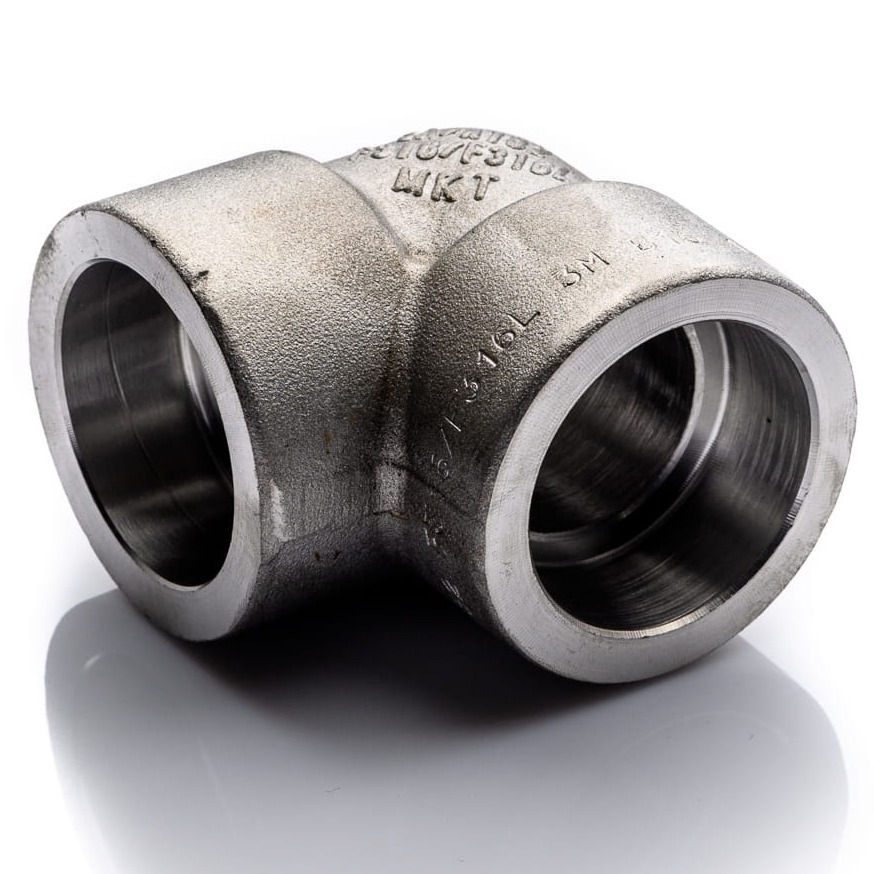

Elbow 1 1/4'' socket weld 316L cl.3000 90 degrees

size: 1.1/4''
dimmension B= min. 42,7mm - max. 43,1mm
angle: 90 stopni
elbow for welding Socket Weld "SW"
pressure rating: 3000lbs (206bar)
material: 316 / 316L - stainless steel for welding
application: industrial high-pressure systems, high temperature systems, refineries, sea industry, food industry, iron and steel industry, systems with high requirements, ships, hydraulic systems
socket weld fittings for welding acc. to ANSI B16.11
certificate 3.1 at the request of the customer (free of charge)
origin: European Union

Other names: Elbow 1 1/4" socket weld 316L cl. 3000 90 degrees bell elbow elbow with socket weld elbow SW elbow 316L SS316 1.4404 inch inox ankle 90 degrees fitting fittings stainless steel

Information

Elbow 1 1/4'' socket weld 316L cl.3000 90 degees belong to the group of Socket Weld SW where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.

Advantages: pipe does not require bevelling for welding. Socket Weld fittings do not require special preparations, they are an alternative for threaded union pieces.

Other sizes available: 1/8’’ – ¼’’ - 3/8’’ - ½’’- ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’ – 3 ½’’ - 4’’

Steel grade 316 / 316L – this is a very popular stainless steel with high resistance to corrosion. It characterizes with great welding and forming properties.

Other name: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L

Application: socket weld fittings, bell elbows, tees, reducers, flanges, pipes, rods, metal sheets, flat bars, valves, tank ends, heat exchangers, pharmaceutical equipment, dairy equipment, brewing industry, sea armature, off-shore architecture, food industry.

More information about socket weld fittings you will find here>>

Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Bend Angle	90 Degrees
Radius	Other
Steel Grade	316L
Material	Stainless Steel
Size	DN32 ~ 1 1/4'' ~ 42,4mm
