Cast iron elbow 1/2'' 90 deg

Availability: on sale

Dispatched within: 24 hours

Gross price: €0.95

incl. 23% TAX, excl. shipping costs

Regular price:

0.95

Net price: €0.77

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 10320D

Description

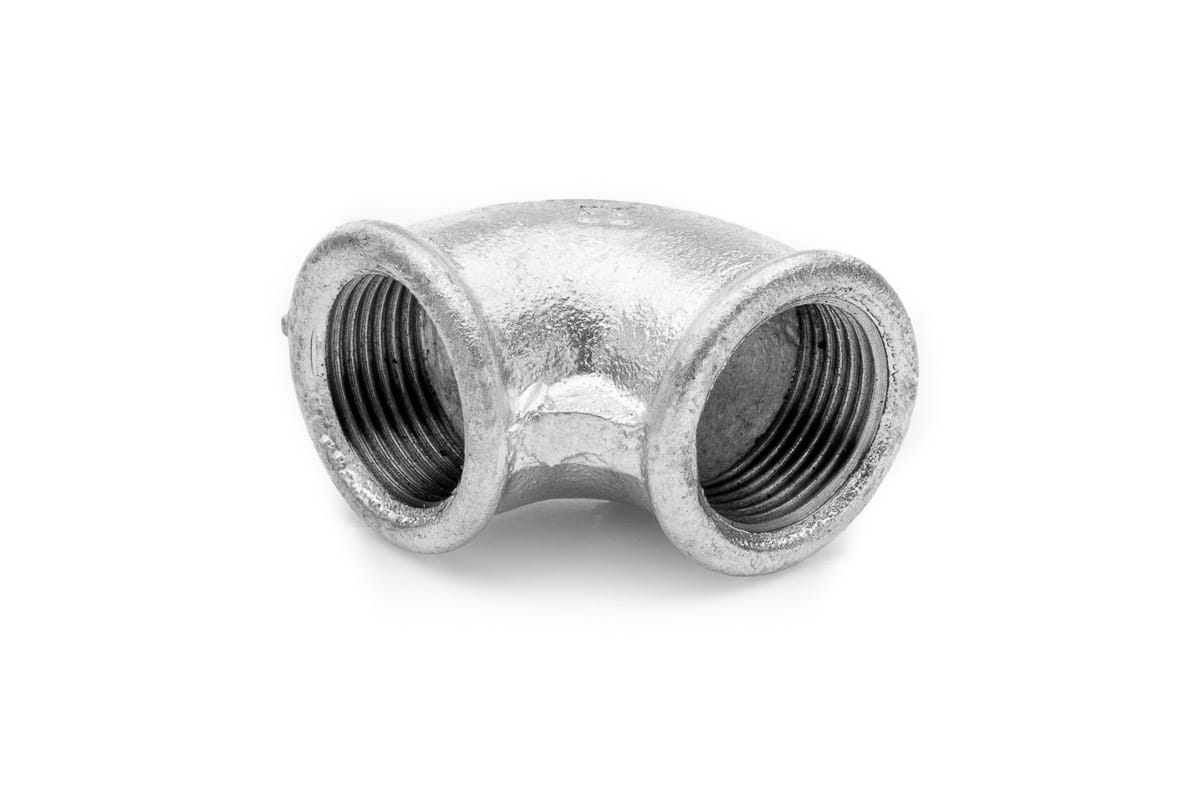

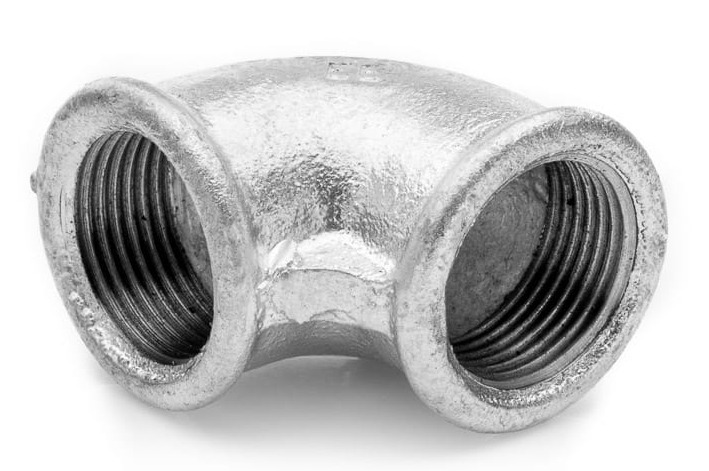

Cast iron elbow 1/2'' 90 deg

Specifications:

size: 1/2'' (thread diameter is 18.6 ÷ 19 mm)
material: hot-dip galvanizing cast iron
angle: 90 Degrees
Internal threads
thread type: BSP, also known as G, Rp, cylindrical straight, female thread
other names: No. 6 / Code 90
PN / ISO Number: A1

Other name: galvanized cast iron elbow 1/2'' 90deg connector screw-in adapter equal passage connector GW AA internal thread for water BSP band malleable

Applications of Galvanized Cast Iron Elbow

Galvanized cast iron fittings are widely used in all industrial sectors and in central heating installations. Their main advantages are price and availability. They are suitable for installations with low requirements, for both cold and hot water.

The galvanized cast iron elbow is a commonly used component in various industrial and construction installations. Here are the main applications of galvanized cast iron elbows:

Galvanized cast iron elbows are widely used in:

Hydraulic Installations: Essential for connecting pipes in hydraulic systems.
Industrial Applications: Utilized in various industrial environments where solid connections are required.
Central Heating Systems: Ideal for directing fluid flow in heating installations.

Construction of Galvanized Cast Iron Elbows

Galvanized cast iron fittings are manufactured according to the EN10242 standard.

The surface is covered with hot-dip zinc, providing protection against corrosion and weather conditions.

Galvanized cast iron fittings have external tapered threads (R) and internal cylindrical threads (Rp), compliant with ISO 7/1 standards.

Marking:

Fittings are marked with their size.

Available Sizes:

1/8'' - 1/4'' - 3/8'' - 1/2'' - 3/4'' - 1'' - 1 1/4'' - 1 1/2'' - 2'' - 2 1/2'' - 3'' - 4''.

The galvanized cast iron elbow is a versatile component that finds application in various industries. Due to its corrosion resistance and high durability, it is an ideal choice for water supply, sewage, heating, and chemical installations.

What type of thread does the malleable elbow Have?

The malleable elbow features a thread that is very popular, namely BSP, also known as Rp, G, or straight cylindrical.

More information about bends you may find here >>

Our offer includes also bends in other sizes. If you have any questions contact us. Call 0048 632614202 or send an inquiry to email: biuro@polberis.pl
