Nipple 1/2'' BSP A105 cl.3000

Nypel 1/2 BSP 6-kątny klasa 3000 A105 stalowy.jpg

Availability: on sale

Dispatched within: 24 hours

Gross price: €6.84

incl. 23% TAX, excl. shipping costs

Regular price:

6.84

Net price: €5.56

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 10121A

Description

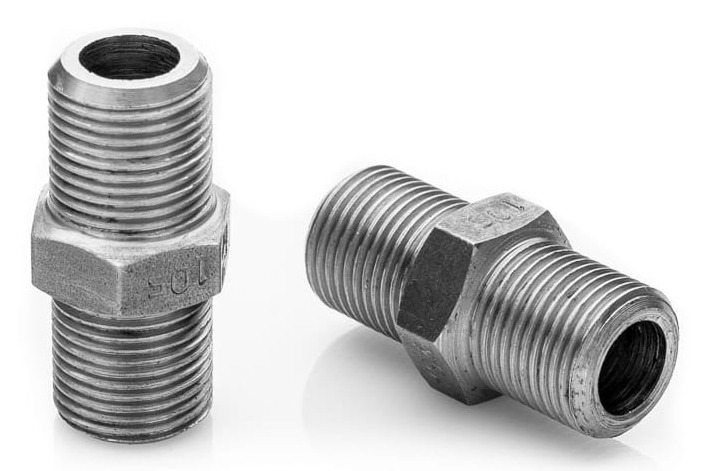

Nipple 1/2'' BSP A105 cl.3000

size: 1/2'' (DN10)
external threads
material: A105 (carbon steel for high temperature, high pressure, equivalent to P245GH, P265GH, P285GH)
thread type: BSP (i.e., standard Polish, otherwise known as straight cylindrical, tubular, inch, Rp, G)
pressure class: 6000 (i.e. 413bar)
steel excellent for welding
at the request of the customer attestation 3.1 (free of charge)
application: pressure installations, boilers, ships, heavy industry
origin: European Union

size B [mm] = 14

size A [mm] = 22

size W [mm] = 48

size C [mm] = 8

size E [mm] = 20

Other name: Nipple 1/2'' BSP A105 cl.3000: 10121A, connector high pressure steel adapter for high temperature HEX Nipple boiler P245GH P265GH P285GH

Information

Nipple 1/2" BSP A105 cl.3000 - belongs to threaded fittings “high-pressure couplings”. The nipples are available in all inch and metric sizes. They are resistant to high pressures. They ensure the safety and durability of the system. .

Each fitting has a stamped size, grade, melt and pressure class. Sometimes also the type of thread (manufacture and estimation is in accordance with the applicable standards).

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR

Our offer includes also nipples and fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl

More information about fittings and nipples you may find here>>

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
