Coupling 1'' BSP 206bar 304L
Regular price:
Regular price:
product unavailable
add to wish list
Description

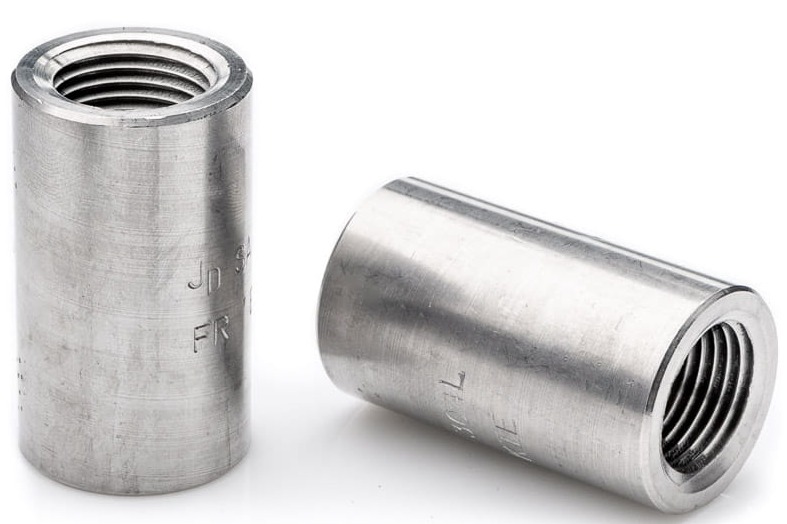

Coupling 1'' BSP 206bar 304L 1.4307
- size: 1'' (thread diameter: 30,3 ÷ 30,8mm)
- material: stainless steel 304/304L (1.4307)
- thread type: G (otherwise known as cylindrical, straight, Rp, G, BSP, BSPP)
- dimension B = 60mm
- dimension L = 44mm
- pressure class: 3000lbs (206bar)
- high-pressure thick coupling
- ideal steel for welding
- certificate 3.1 at the request of the customer (free of charge)
- origin: European Union
Other name: threaded coupling stainless steel Inch Pipe BSP Rp BSPP SS304 304L thrd fittings female threat F 304 1.4301 inox adapter
Coupling 1'' BSP 206bar 304L – allows to connect two ends of the installation or to connect a device. Couplings are for high duty fastening applications. Avaliable in inches thread.
Steel grade 304/304L – it is standard stainless steel (SS 304L). The most versatile and most often used, available in a wide range of products. Has excellent forming and welding properties. Very popular stainless steel. It is standard stainless steel (SS 304L) resistant to corrosion.
Application: corrosive conditions, chemical industry, food industry, architecture, automotive industry etc.
Other name: 1.4301 1.4306 1.4307 AISI304L
Application: pharmaceutical equipment, dairy equipment, brewing equipment, sea armature, off-shore architecture, food industry, industrial machinery, agricultural machinery, automotive industry.
Advantages of the 304/304L grade: non-magnetic steel, ideal ductility, great impact resistance, great weldability, good resistance, a wide operating temperature range.
Marking: each coupling is stamped with size, grade, melt and pressure rating. Sometimes also with the type of thread (execution and marking is in compliance with the applicable standards).
The couplings ensure the safety and durability of the system.
More about couplings, you may find here>>
Our offer includes a wide range high-pressure couplings and fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.
Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
