Union 1/2'' BSP A105 206bar

Availability: on sale

Dispatched within: 24 hours

Gross price: €17.73

incl. 23% TAX, excl. shipping costs

Regular price:

17.73

Net price: €14.42

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 10503I

Description

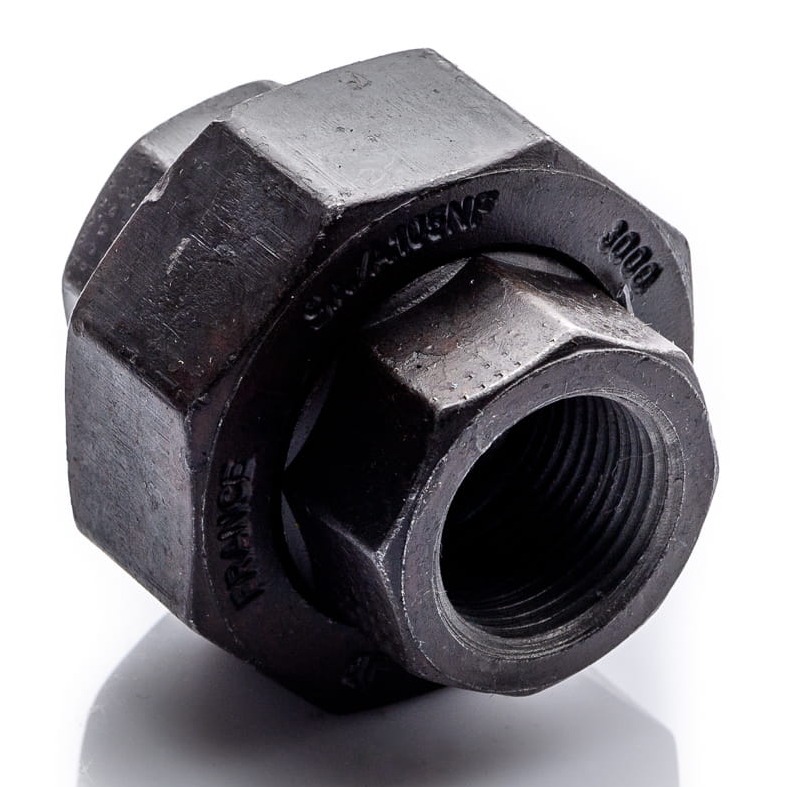

Union 1/2'' BSP A105 206bar

size: 1/2'' (thread diameter is 18,6 ÷ 19mm)
length L = 49,2mm
dimension A = 27.69mm
thread type: BSP (standard Polish, otherwise known as G, BSPP, Rp, straight cylindrical, tubular)
material: boiler steel A105 (P245GH, P285GH)
pressure class: 3000Psi (206bar)
dimensions according to MSS SP-83
application: industry, metallurgy, refineries, boilers, tanks
characteristics: for high pressure, for high temperature
3.1 certificate on request (free of charge)
Origin: European Union

Other name: Union 1/2'' BSP A105 206bar carbon steel boiler screw thick-walled approved steel double-connector for high pressure, for high temperature MSS SP-83

Information

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR

More information about unions can be found here>>

Our offer includes a wide range of high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Shape	Straight
Size	1/2''
Material	Carbon Steel
Connection Type 1	BSP / G / Rp / Rc / BSPT Thread
Connection Type 2	BSP / G / Rp / Rc / BSPT Thread
