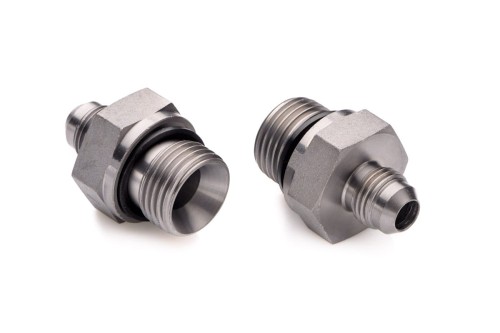

Steel nipple 1/2'' BSP - 7/16'' UNF JIC fitting
Regular price:
Regular price:
product unavailable
add to wish list
Description
Steel nipple 1/2'' BSP - 7/16'' UNF JIC fitting
- thread A: 1/2”, thread type BSP, that is standard Polish, otherwise known as cylindrical, straight, Rp, G
- thread B: 7/16'', thread type UNF
- diameter of thread A: 1/2'' is: 20,5 ÷ 20,9mm
- sealing A: internal cone 60 degrees, ED seal
- diameter of thread B: 7/16'' is: 10,9 ÷ 11,1mm
- sealing B: external cone JIC (74 degrees)
- material: galvanized steel
- high-pressure coupling coupling
- precise execution
- application: industry, agricultural and construction machinery, lifting and transport equipment, power hydraulics

Other name: Steel nipple 1/2'' BSP - 7/16'' UNF JIC fitting two-sided nipple fitting connector adapter steel male thread male-female fitting UNF UN JIC cone
Information
Steel nipple 1/2'' BSP - 7/16'' UNF JIC fitting - it belongs to a group of threaded fittings,“high-pressure fittings”. The nipples are available in all inch sizes. They ensure the safety and durability of the system.
Our offer includes also nipples:
- straight; reducing
- threaded on both sides, threaded on one side
- material: carbon steel, stainless steel
- coating: without coating; galvanized, hot-dip galvanized, for welding
- thread types: metric ”M” – inch “G” – BSP – BSPP – BSPT – NPT – UN – UNF – JIC – Rc – Rp – straight – taper
- shape: hex; round
- with 3.1 certificate, with PZH certificate
- non-standard - acc. to the customer’s drawing
Our offer includes also nipples and fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl
More information about fittings and nipples you may find here>>
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
