THREADOLET 1/2''x2''-2 1/2'' BSP A105 cl.3000

Availability: on sale

Dispatched within: 2-3 weeks

Gross price: €15.78

incl. 23% TAX, excl. shipping costs

Regular price:

15.78

Net price: €12.83

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12882K

Description

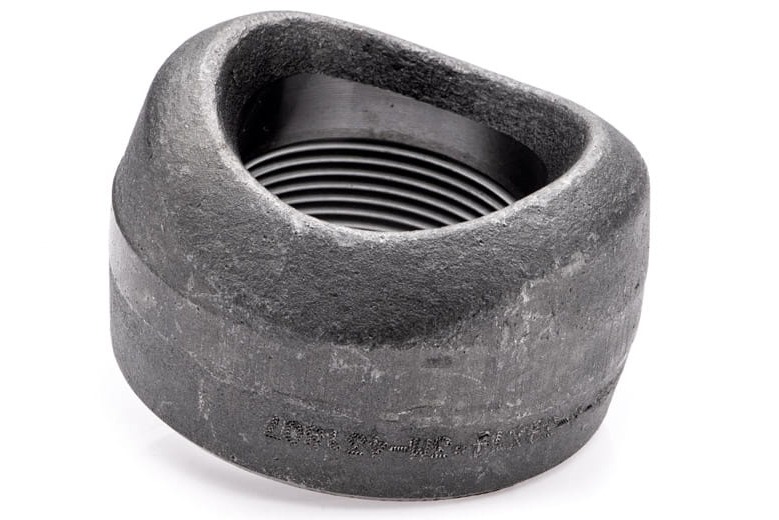

THREADOLET 1/2''x2''-2 1/2'' BSP A105 cl.3000

size: 1/2''x2''-2 1/2''
connection with thread size 1//2" BSP - for welding on pipe 2''-2 1/2"
thread: BSP (standard polish, a.k.a BSPP, straight cylindrical, tubular, G, Rp)
steel grade: A105 (equivalent to: P245GH P265GH P285GH)
pressure class: 3000lbs (206bar)
steel good fro welding
dimensions acc to. MSS SP 97
application: high-pressure industrial installations, high-temperature installations, pressure vessels, central heating installations.
certificate 3.1 on request (free of charge)

Threadolet BSP

B = standard thread 1/2''

A = pipe from 2'' to 2 1/2''

Other name: THREADOLET 1/2''x2''-2 1/2'' BSP A105 cl.3000 threadolet weld shaper tredolet screwbranches BSP internal threads A105 connector for welding olet

Information

THREADOLET 1/2''x2''-2 1/2'' BSP A105 cl.3000 belongs to the group of steel taps ( Olet ) type: veldolet, thredolet, sockolet, boss, couplet, latrolet is an alternative way of connecting pipes. Olets are pre-shaped to the curvature of the lead pipe so that they can be easily welded to the pipe and make a branch. They provide good flow and optimal stress distribution. Taps are typically used in high-pressure and high-temperature applications.

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR

More information about threadolets and olets you may find here >>

Our offer includes also threadolets in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Branch Fitting Type	Threadolet
Material	Carbon Steel
Size	1/2''
Connection Type	BSP / G / BSPT / Rp / Rc Thread
