Cross 1/2'' socket weld A105 cl.3000

Availability: on sale

Dispatched within: 24 hours

Gross price: €15.18

incl. 23% TAX, excl. shipping costs

Regular price:

15.18

Net price: €12.34

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12127B

Description

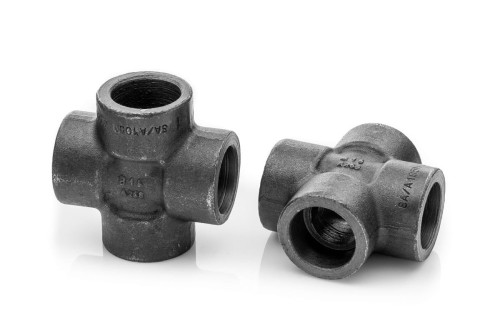

Cross 1/2'' socket weld A105 cl.3000

size: 1/2''
fits pipe: DN15 fi 21,7-22,2mm
welding cross with keyway socket weld "SW"
thread: SW (Socket Weld - no thread, cross for welding)
pressure class: 3000lbs (206bar)
Grade: A105 (P245GH, P280GH carbon steel for high temperature, high pressure).
application: metallurgy, marine industry, power industry, boilers, turbines, pressure vessels, industrial installations
steel excellent for welding
socket fittings for welding to ANSI B16.11 standard
certification 3.1 on request (free of charge)
origin: European Union

Inna nazwa: Cross 1/2" socket weld A105 cl3000: 12127B high pressure cross connectors for installation pipe DN20 3000lbs 206bar grade A105 socket fitting for welding

Information

Cross 1/2'' socket weld A105 cl.3000 belongs to the group of "high-pressure connectors", where the pipe is welded in a groove (pocket). The pocket welded to the pipe forms a tight structure of the installation. The Socket Weld (SW) system guarantees the safety, durability and inseparability of the installation. Such welding is highly praised by welders. The pipe during welding is inserted into the pocket and does not slip which gives better freedom. The weld can also withstand higher pressures. With SW fittings, we can easily select the pressure of the installation. Each fitting is stamped with size, grade, melt and pressure class. All SW fittings are certified 3.1.

Steel grade A105 - is a carbon steel very often used in pipeline components, flanges and fittings. This grade of carbon steel is used for work at ambient temperatures and above, and for work in pressure installations. It is a well-weldable steel.

The grade is used in socket fittings, elbows, tees, crosses, bolts, flanges, couplings, etc.

Application: grade used for oil and gas transmission, petrochemicals, power plants, ships, central heating installations, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH

More information about bushings and reductions you may find here >>

Our offer includes also crosses and fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

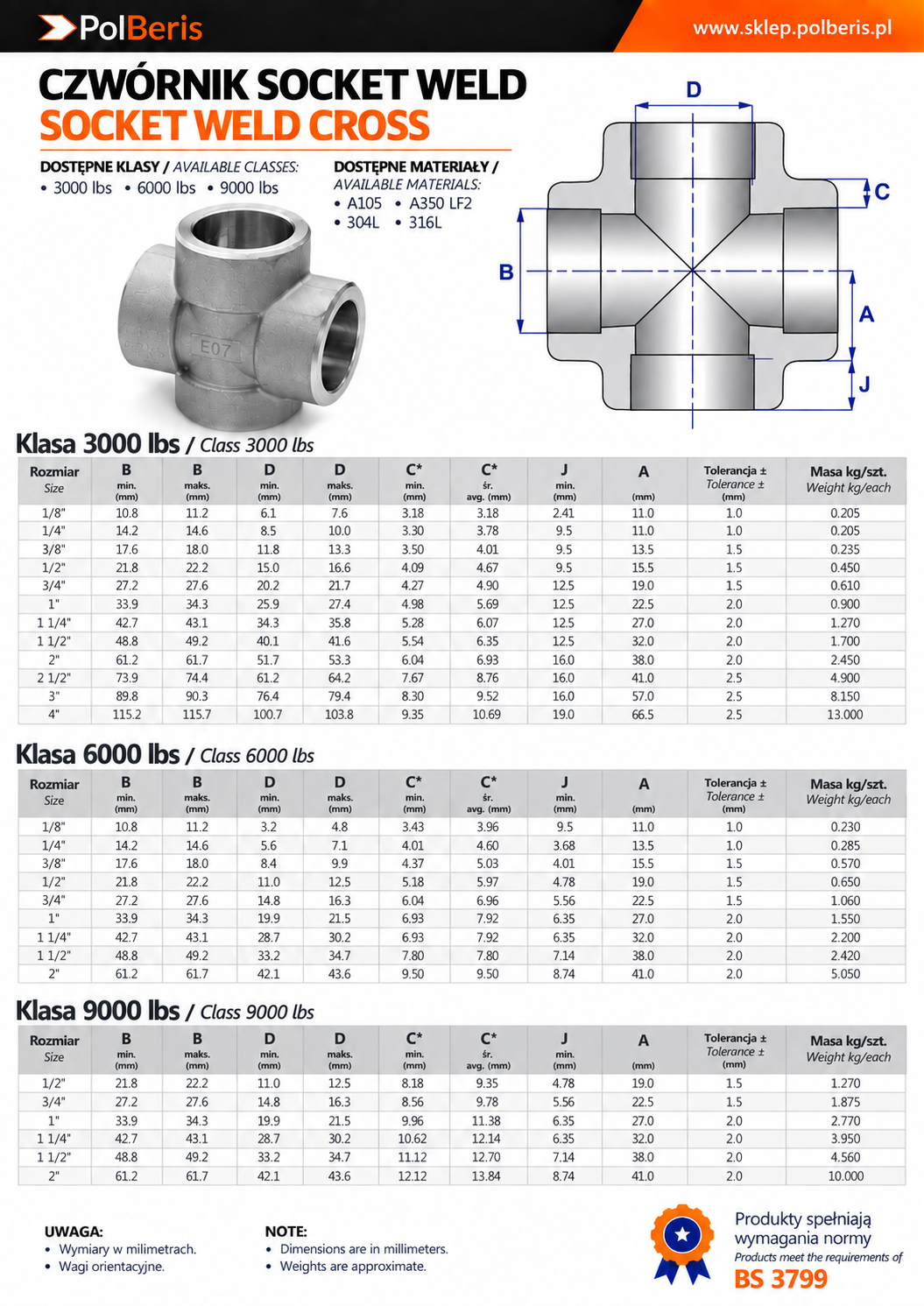

Technical data

Pressure	Pressure Range > 50 bar
Thread Type	Socket Weld (SW)
Size	1/2''
Material	Carbon Steel
