Reduction coupling 2 1/2'' x 3'' NPT 3000 A105
Regular price:
Regular price:
product unavailable
add to wish list
Description

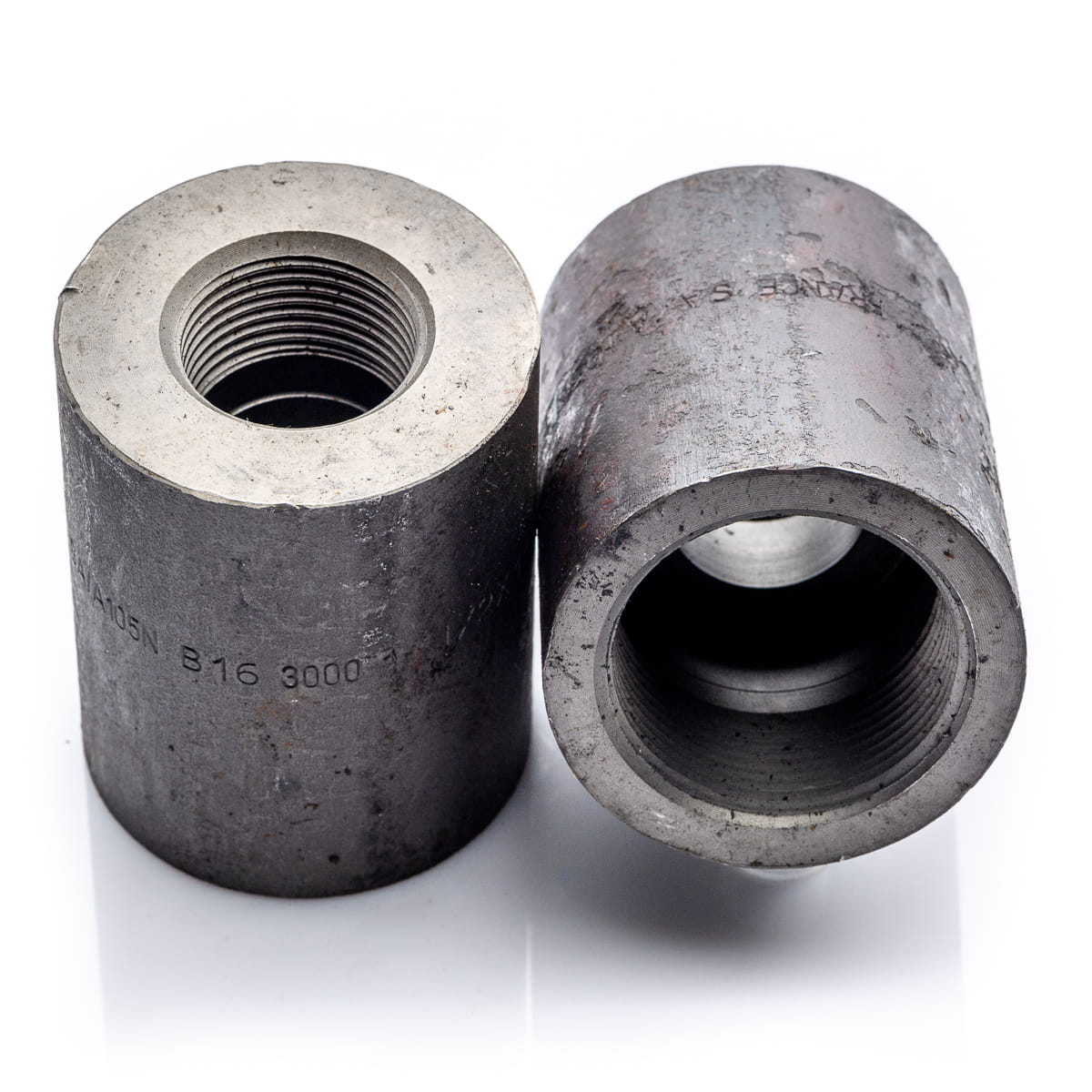

Reduction coupling 2 1/2'' x 3'' NPT 3000 A105
- internal threads: G 2 1/2'' x 3''
- thread type: NPT (conical)
- pressure class: 3000 (i.e. 206bar)
- carbon steel A105N (P285GH, P245GH)
- steel for welding

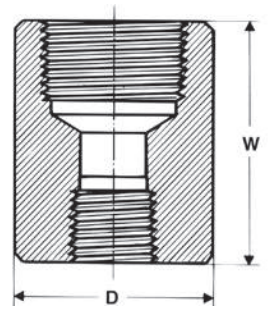

- D dimension: 111.39mm
- W dimension: 108.55mm
- application: high requirements installations, boilers, high pressure installations, high temperature installations, refineries, marine industry
- execution according to standard: ANSI B16.11
- 3.1 certificate on request (free of charge)
- origin: European Union
Other name: Reduction coupling 2 1/2'' x 3'' NPT 3000 A105 threaded fitting high-pressure adapter NPT tapered thread welding socket straight coupling carbon coupling
Information
Reduction coupling 2 1/2'' x 3'' NPT 3000 A105 - belongs to the threaded fittings "high-pressure fittings". The couplings are available in all inch sizes. Each coupler is stamped with size, grade, melt and pressure class. It guarantees the safety and durability of the installation. All threaded fittings are certified 3.1.
Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.
Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.
Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR
The couplings ensure the safety and durability of the system.
Additional information:
- grade on the A105 certificate (P280GH, P245GH according to EN10222-2)
- size, class, grade, melt are stamped on the coupler
- on the certificate PED 97/23/CE & PED 2014/68/EU
- execution according to ASME/18 -ASTM/14 SA/A105 Sect II Part A
- thread is not made through the whole coupler, with NPT thread this is not feasible
More about couplings, you may find here>>
Our offer includes a wide range high-pressure couplings and fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
