Union 1 1/4'' socket weld A105 cl.3000
Regular price:
Regular price:
product unavailable
add to wish list
Description

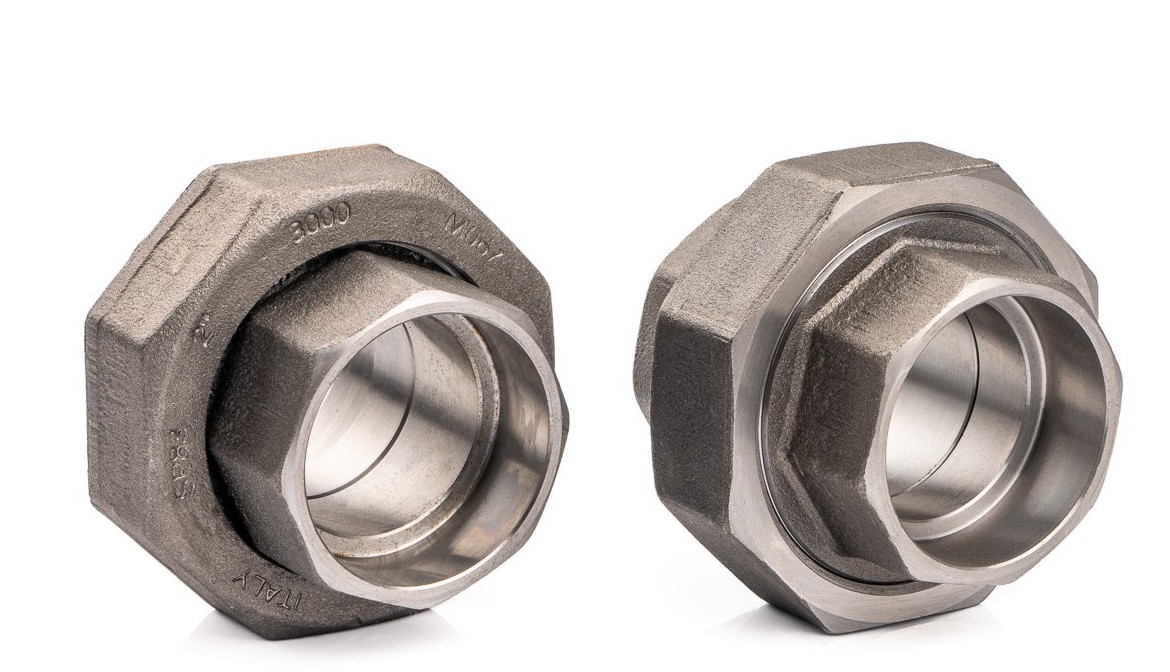

Union 1 1/4'' socket weld A105 cl.3000
- size: 1 1/4'' (fits pipe 42,4mm)
- lengthL = 71,1mm
- size B = 42,5mm-43,0mm
- material: carbon steel A105 (P245GH, P285GH)
- pressure class: 3000Psi (206bar)

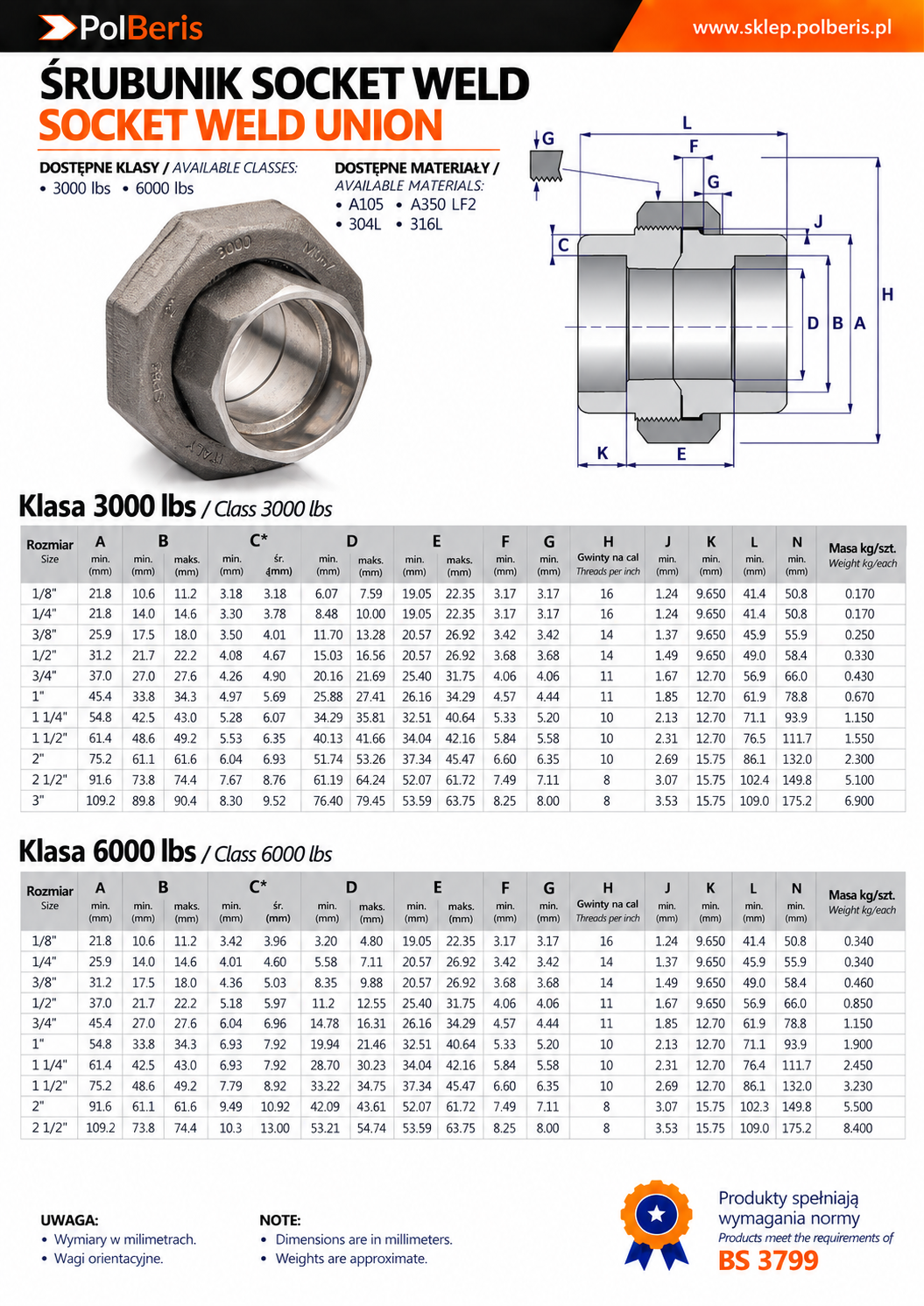

- dimensions in accordance with the MSS SP-83 standard
- sealing: metal-to-metal (cone)
- union for welding
- applications: industry, metallurgy, refineries, boilers, tanks
- characteristics: for high pressure, for high temperature
- 3.1 certificate on request (free of charge)
- Origin: European Union


Other name: Union 1 1/4'' socket weld A105 cl.3000 MSS SP-83 welding cup high-pressure boiler dutchman UNION P245GH P285G internal threads F-F steel #3000 socket weld double-connector
Information:
Union 1 1/4'' socket weld A105 cl.3000 belongs to the group of "high-pressure connectors", where the pipe is welded in a groove (pocket). The pocket welded to the pipe forms a tight structure of the installation. The Socket Weld (SW) system guarantees the safety, durability and inseparability of the installation. Such welding is highly praised by welders. The pipe during welding is inserted into the pocket and does not slip which gives better freedom. The weld can also withstand higher pressures. With SW fittings, we can easily select the pressure of the installation. Each fitting is stamped with size, grade, melt and pressure class. All SW fittings are certified 3.1.
Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.
Properties similar to the grades: 1.0460 C22.8 P245GH P265GH
More information about unions you may find here>>
Our offer includes also fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
