Steel elbow 7/16'' JIC - 1/4" BSP
Regular price:
Regular price:
product unavailable
add to wish list
Description

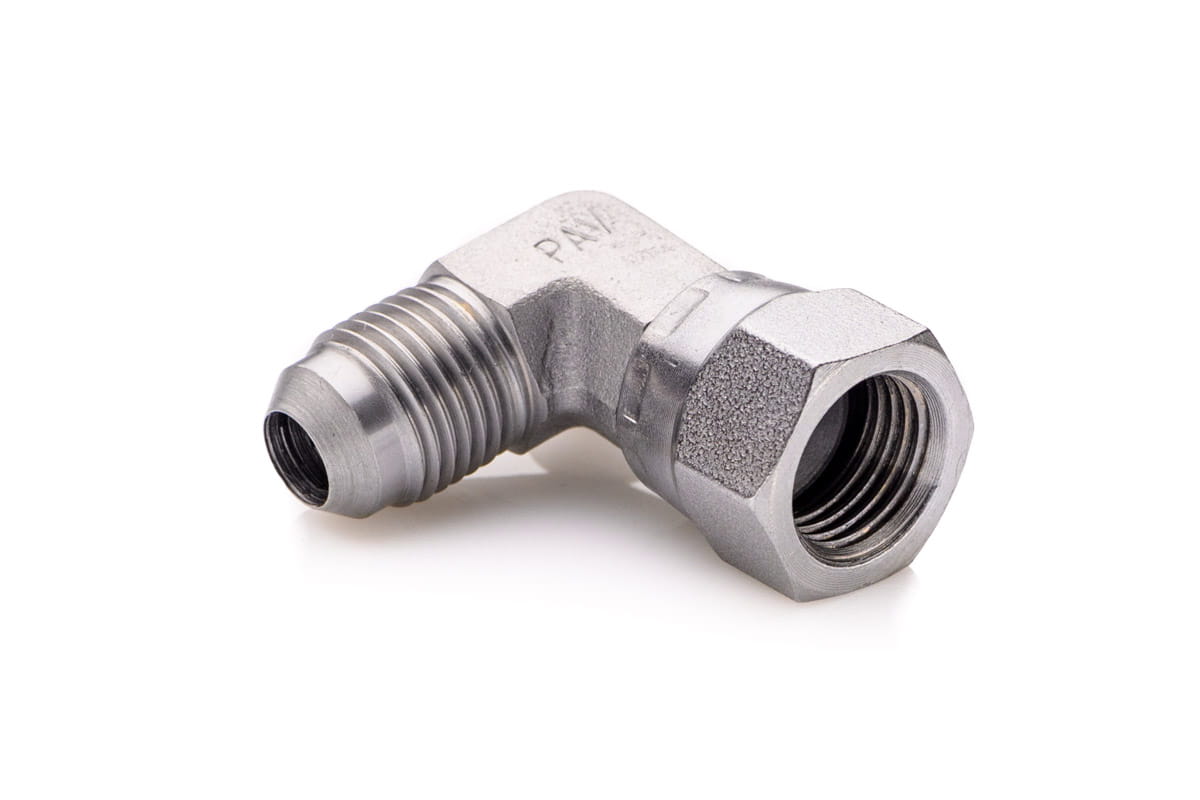

Steel elbow 7/16'' JIC - 1/4" BSP
- Size: 7/16'' - 1/4''
- Type of thread: 7/16'' UNF JIC
- Type of thread: 1/4'' BSP
- Threads: external-internal
- Angle: 90 degrees
- Material: steel
- Coating: galvanized steel
- High-pressure hydraulic fitting
- Precise execution
- Application: industry, agricultural machines, construction equipment, lifting and transport devices
HJ-EVW-09 W90AJ06HJ 9760386

Alternative name: 7/16'' JIC GZ - 1/4'' BSP GW elbow, 90 degrees, steel external-internal thread, angled adapter 9/16-9/16.
Information about steel elbow 7/16'' UNF JIC - 1/4'' BSP
The 7/16'' JIC GZ - 1/4'' BSP GW steel elbow is used for connecting hydraulic pipes and hoses. It is applicable in pressure equipment, agricultural machines, industry, and installations with high demands. The elbow can withstand high pressure and is suitable for most media. The protective coating safeguards the elbow against weather conditions.
Elbows are available in all imperial sizes. They can withstand high pressures, ensuring safety and durability of the installation.
The 90-degree angle of the steel elbow allows for efficient routing of pipes in confined spaces. The elbow is resistant to high pressure, making it an ideal solution in industry and construction.
Other sizes of threaded steel elbows (UNF, JIC) are also available upon request. If you have any questions, please contact us. Call us at 0048 632614202 or send an email to: biuro@polberis.pl.
You can find more about fittings, elbows, and nipples here >>
