Pipe nipple 1 1/4'' NPT 120mm A106

Availability: on sale

Dispatched within: 24 hours

Gross price: €12.07

incl. 23% TAX, excl. shipping costs

Regular price:

12.07

Net price: €9.82

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 10296B

Description

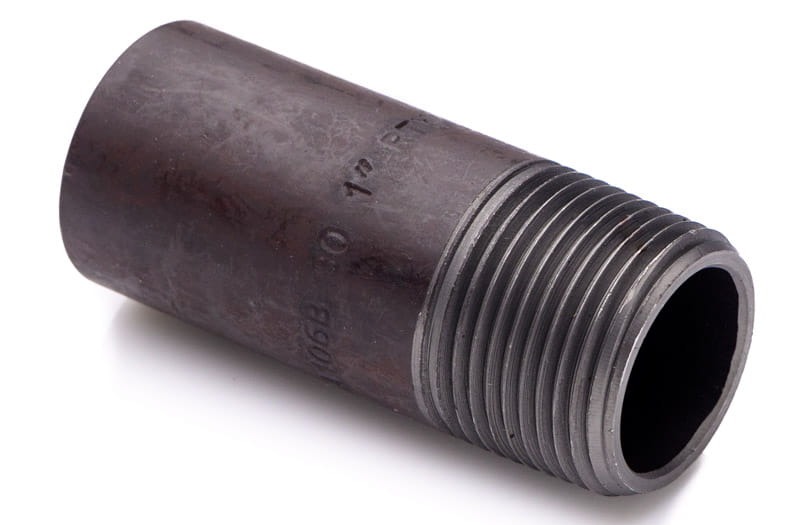

Pipe nipple 1 1/4'' NPT 120mm A106

size: 1 1/4'' (thread diameter is 41.4 ÷ 42mm)
thread: NPT (American conical)
length: 120mm
grade: A106 (equivalent to P265GH K18 ST.45.8 1.0405)
stub threaded on one side
boiler steel for welding
wall thickness: SCH40
application: high pressure industrial installations
execution according to: ASME B36.10-L.E, ASME B1.20.1-2013 SP25-2018 ASME/15 - ASTM/15 SA/A106 GrB Sect II Part A
Attestation 3.1 on request (free of charge)
origin: European Union

Other name: Pipe nipple 1 1/4'' NPT 120mm A106:, stiff nipple single threaded pipe threaded tube stub pipe nipple A106 SCH40 NPT (US conical) carbon steel for welding

Information

Carbon steel (CS) or unalloyed steel, is a material formed from a combination of carbon and iron. Significantly important is also the content of other elements such as boron or copper, which does not exceed the limits and is regulated by PN-EN 10020:2003.

Undeniably, it is a very popular steel used in large structures (bridges), elements of precision mechanics and, above all, in many items of everyday use.

It is noteworthy that carbon steel is easy to machine, weld, is not expensive and at the same time reliable.

Steel grade A106 - primarily a grade used for seamless pipes (also known as ASME SA106). Commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, ships, due to the fact that pipelines must transport fluids and gases with higher temperatures and high pressures.

Pipe nipple 1 1/4'' NPT 120mm A106 is made of steel, which is suitable for bending, bending and similar forming operations.

Since the tapered thread is formed by a helical cut on the outer or inner tapered surface, a tight connection is ensured without the need for additional sealing.

How to measure the thread? click here>>

Other dimensions are also available, and we offer nipples/spigots:

straight; reducing
double-threaded; single-threaded
material: carbon steel, stainless steel
coating: uncoated; galvanized, hot-dip galvanized, weldable
thread type: metric "M" - inch "G" - BSP - BSPP - BSPT - NPT - UN - UNF - JIC - Rc - Rp - straight - tapered
shape: hexagonal; round
with certificate 3.1, with PZH certificate
non-standard - according to customer's drawing

More information about fittings and nipples you may find here>>

Our offer includes also nipples in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

If you want to know how much you will pay for transport to your country. Write us an email: biuro@polberis.pl. We will send you an offer. You have a European VAT number and don't want to pay TAX. Write to us for an offer. Please free feel to contact us for any information.
