Union 1 1/4" SW x BSPP MT A105 cl.3000 207bar

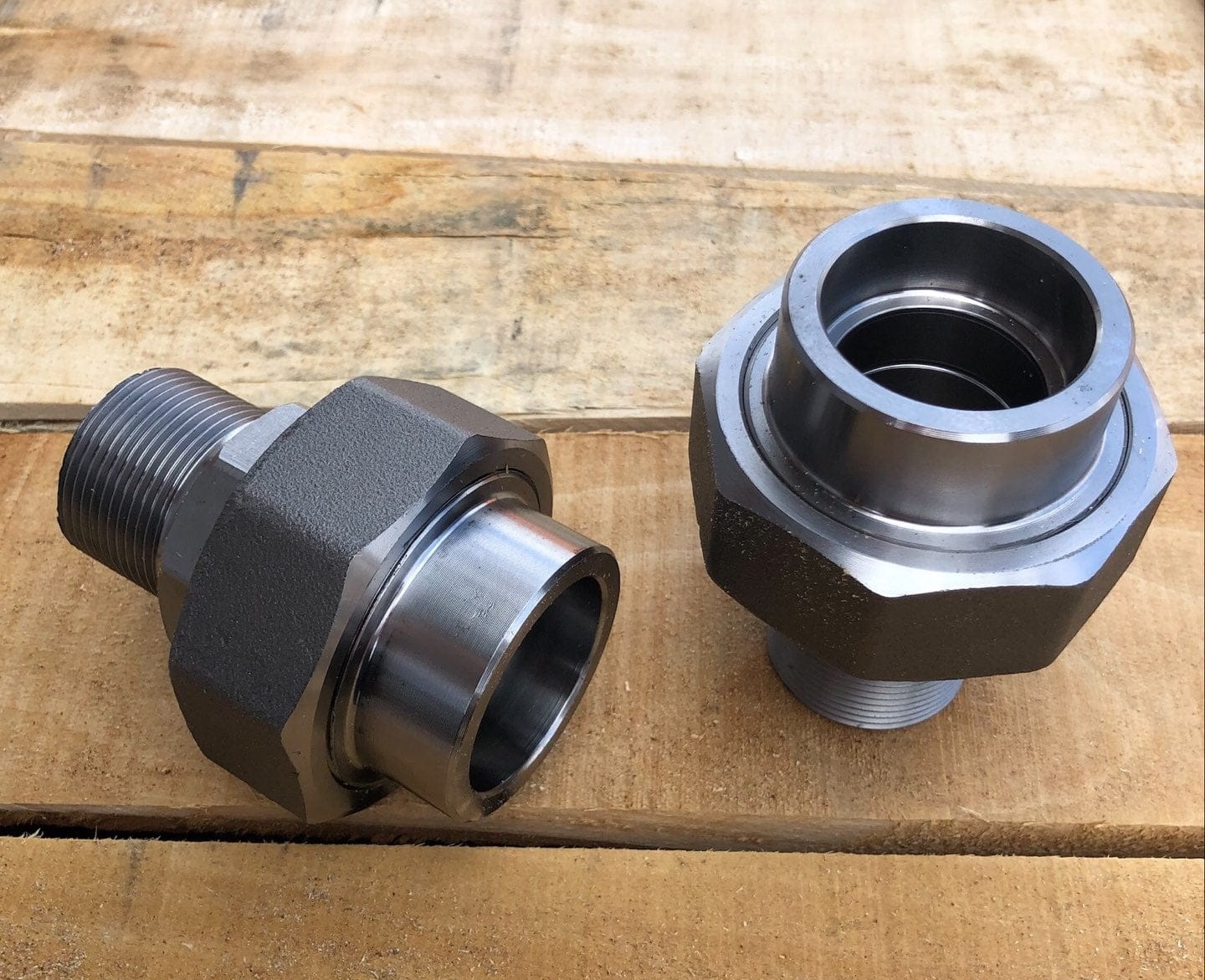

Union sw socket weld ISO-7 Rp BSPP BSP Śrubunek.jpg

Availability: last items

Dispatched within: 3-4 weeks

Gross price: €60.32

incl. 23% TAX, excl. shipping costs

Regular price:

60.32

Net price: €49.04

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12955

Description

Union 1 1/4" SW x BSPP MT A105 cl.3000 207bar

size: 1 1/4'' (fits pipe 42,40 mm)
material: carbon steel A105 (P245GH, P285GH)
pressure class: 3000Psi (206bar)
dimensions in accordance with the MSS SP-83 standard
sealing: metal-to-metal (cone)
union for welding
applications: industry, metallurgy, refineries, boilers, tanks
characteristics: for high pressure, for high temperature
3.1 certificate on request (free of charge)
Origin: European Union

Other name: Union 1 1/4" SW x BSPP MT A105 cl.3000 207bar MSS SP-83 welding cup high-pressure boiler dutchman UNION P245GH P285G internal threads F-F steel #3000 socket weld double-connector

Information:

Union 1 1/4" SW x BSPP MT A105 cl.3000 207bar belongs to the group of "high-pressure connectors", where the pipe is welded in a groove (pocket). The pocket welded to the pipe forms a tight structure of the installation.

The Socket Weld (SW) system guarantees the safety, durability and inseparability of the installation. Such welding is highly praised by welders. The pipe during welding is inserted into the pocket and does not slip which gives better freedom. The weld can also withstand higher pressures.

With SW fittings, we can easily select the pressure of the installation. Each fitting is stamped with size, grade, melt and pressure class. All SW fittings are certified 3.1.

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Properties similar to the grades: 1.0460 C22.8 P245GH P265GH

More information about unions you may find here>>

Our offer includes also fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Shape	Straight
Size	1 1/4''
Material	Carbon Steel
Connection Type 1	Weld End
Connection Type 2	BSP / G / Rp / Rc / BSPT Thread
