Steel elbow 9/16'' UNF with a nut
Regular price:
Regular price:
product unavailable
add to wish list
Description

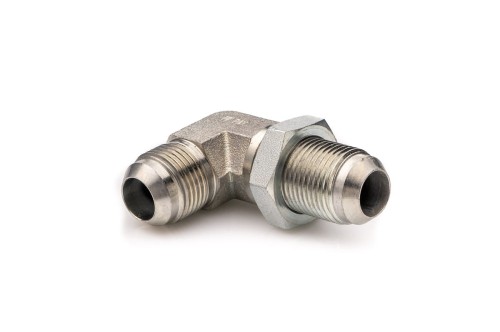

Steel elbow 9/16'' UNF with a nut
- Size: 9/16'' (thread diameter: 14 ÷ 14.3 mm)
- External threads
- Construction type: partition two-thread fitting
- Material: steel
- Angle: 90 degrees
- Seal: external cone 74 degrees
- Coating: galvanized steel
- High-pressure hydraulic fitting
- Precise execution
- Application: industry, agricultural machines, construction equipment, lifting and transport devices
W90O16HJ12 W90 OH J
SW90HJ

Alternative name: 9/16'' UNF elbow, 90-degree steel partition with a nut, adapter 9/16 UN/UNF.
More information about the 9/16'' steel elbow
The 9/16'' UNF steel partition elbow with a nut is used for connecting hydraulic pipes and hoses. It is applicable in pressure equipment, agricultural machines, industry, and installations with high demands. The elbow can withstand high pressure and is suitable for most media. The protective coating safeguards the elbow against weather conditions.
Elbows are available in all imperial sizes. They can withstand high pressures, ensuring safety and durability of the installation.
The 90-degree angle of the steel elbow allows for efficient routing of pipes in confined spaces. The elbow is resistant to high pressure, making it an ideal solution in industry and construction.
Other sizes of threaded steel elbows (UNF, JIC) are also available upon request. If you have any questions, please contact us. Call us at 632614202 or send an email to: biuro@polberis.pl.
You can find more about threaded fittings here>>
