Adapter 3/4'' UNF x 1/2'' BSP Male Steel

Availability: last items

Dispatched within: 24 hours

Gross price: €5.25

incl. 23% TAX, excl. shipping costs

Regular price:

5.25

Net price: €4.27

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 13559A

Description

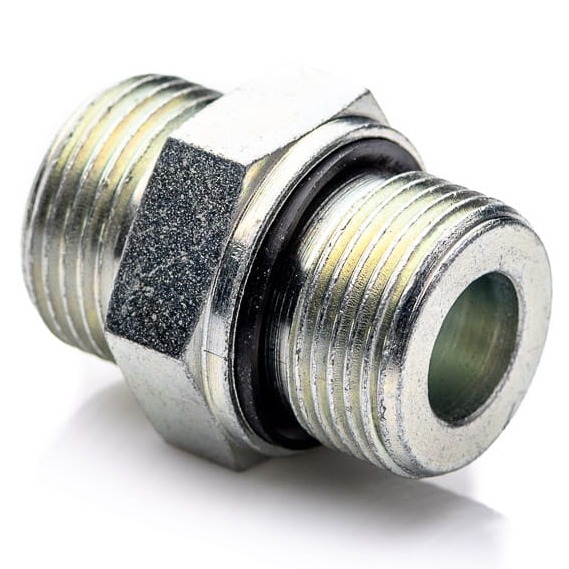

Adapter 3/4'' UNF x 1/2'' BSP Male Steel

Thread A: 3/4''-16 UNF
Thread B: 1/2'' BSP (standard BSP parallel thread, also referred to as G or Rp)
Material: Steel
Anti-corrosion protected
High-pressure hydraulic adapter
Precision manufactured
Applications: industry, agricultural machinery, construction machinery, lifting and transport equipment

Information

Steel Adapter 3/4'' UNF x 1/2'' BSP Male is a precision-manufactured high-pressure hydraulic fitting designed for reliable threaded connections. The adapter is protected against corrosion and is suitable for demanding industrial applications.

What is a UNF thread?

UNF threads have a finer thread pitch than UNC threads, meaning they have more threads per unit length. They are commonly used where greater precision and stronger threaded connections are required.

They are widely used in the automotive industry, aerospace industry, and various mechanical equipment.

How is a UNF thread designated?

UNF threads are identified using standardized dimensions that specify the thread diameter and thread pitch. For example, 3/4"-16 UNF indicates a thread diameter of 3/4 inch with 16 threads per inch (TPI).

We also offer steel threaded nipples and adapters in other sizes. If you have any questions, please contact us by email at biuro@polberis.pl or call +48 63 261 42 02.

Learn more about threaded nipples and adapters here >>

Steel Adapter 3/4'' UNF x 1/2'' BSP Male is also available in other sizes from our product range.

Technical data

Material	Carbon steel
Connection 1	3/4"
Thread type – Connection 1	UNF thread
Connection 2	1/2"
Thread type – Connection 2	BSP / G / Rp / Rc thread
