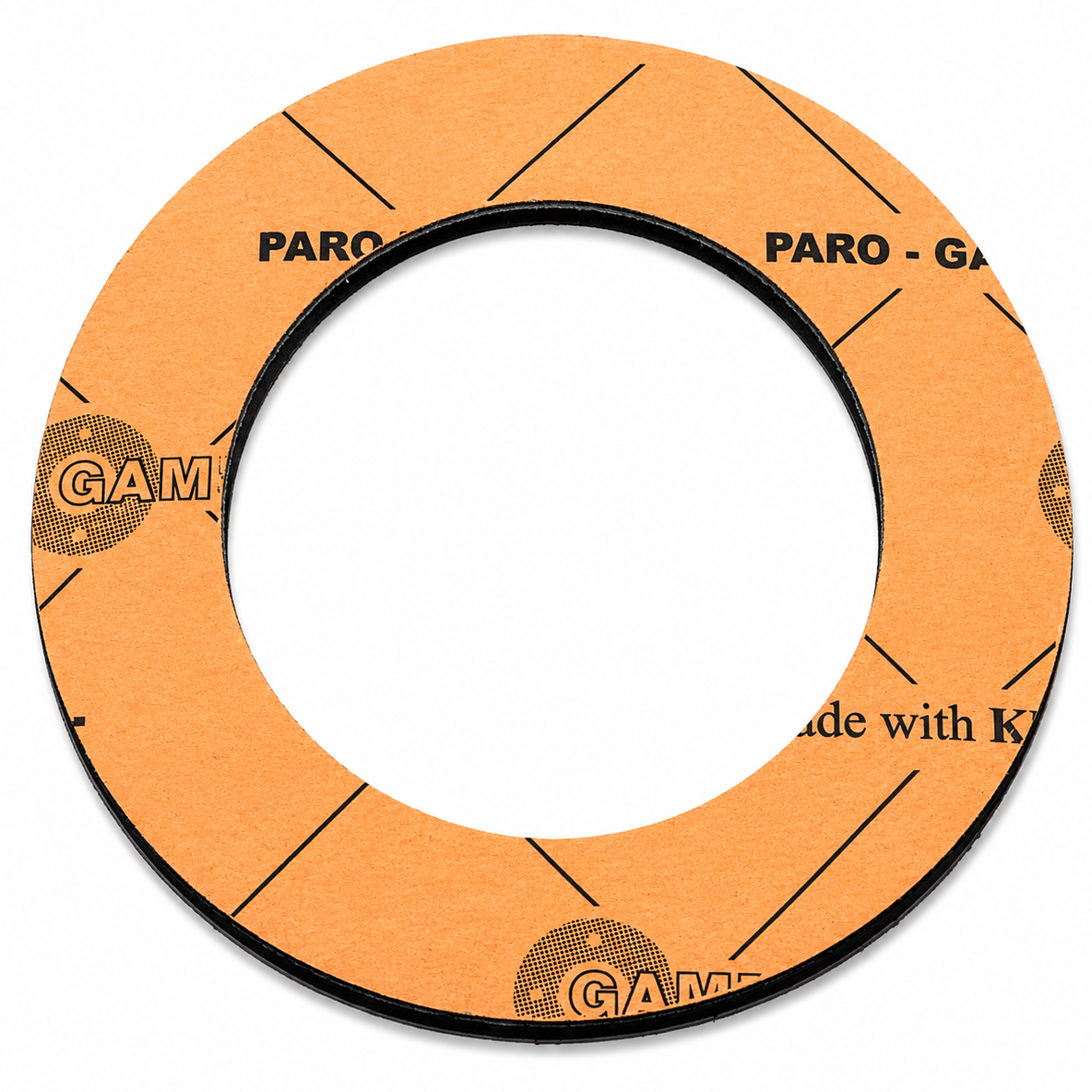

Gasket PARO-GAMBIT DN15 PN10–16 × 3 mm

• Size: DN15

• Thickness: 3 mm

• Pressure rating: PN10–16

• Material: PARO-GAMBIT

• Maximum operating temperature: +450°C

• Suitable media: hot water, oils, steam, hydrocarbons, and chemical compounds including methanol, ammonia, benzene, gasoline, wet chlorine, ethane, ethylene, Freon 12, Freon 22, and ethylene glycol

• Steel flange gasket

Information

PARO-GAMBIT gasket is a gasket sheet designed for steam installations.

• Maximum continuous operating temperature: 350°C

• Maximum continuous operating temperature in steam: 350°C

• Maximum working pressure: 10 MPa

Recommended media

Recommended for: steam, water, seawater, ethyl alcohol, methyl alcohol, ammonia, benzene, gasoline, dry chlorine, ethane, Freon 11 & 12, Freon 22, ethylene glycol, phosphoric acid, formic acid, acetic acid, sulphuric acid (20%), fuming sulphuric acid, hydrochloric acid (20%), soap, potassium permanganate, kerosene, mineral hydraulic oil, silicone oil, air, trichloroethylene, ammonium hydroxide, potassium hydroxide, sodium hydroxide, calcium hydroxide.

Test under operating conditions before use with: acetone, wet chlorine, chloroform, cyclohexanone, phenol, nitric acid (20%), nitric acid (40%), ethyl acetate, phosphate ester hydraulic oil.

Do not use with: aniline, sulphuric acid (65%), hydrochloric acid (36%).

Standard sheet sizes

• Sheet size: 1500 × 1500 mm

• Thicknesses: 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm

Custom gasket cutting

Available according to:

• EN 1514-1

• EN 12560-1

• ASME B16.20

• DIN 2690

• Customer technical drawings

• TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)

• SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)

• IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)

• Full dimensional range, including custom shapes

• Large segmented gaskets (puzzle type)

• Lead time: 2–5 days

How to install the gasket

• Check that the gasket is the correct size and material.

• Inspect the gasket for damage.

• Check that the flanges are not distorted.

• Clean the flange faces and fastening components (bolts, nuts, and washers).

• Align the flanges and bolt holes.

• Carefully insert and centre the gasket between the flanges.

• Do not use sealing compounds.

• Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.
