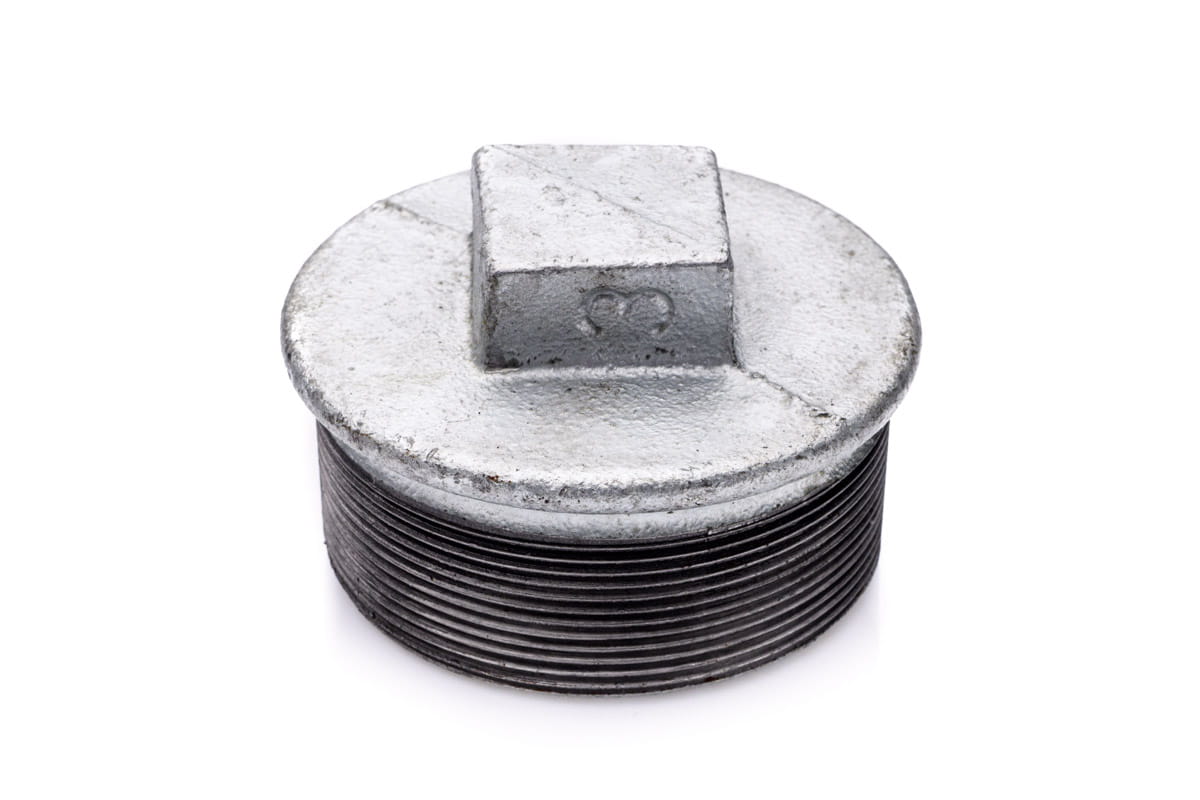

Cast iron plug 3/4''

Korek 3/4'' żeliwo ocynk z obrzeżem T9 zaślepka żeliwna.jpg

Availability: on sale

Dispatched within: 24 hours

Gross price: €1.31

incl. 23% TAX, excl. shipping costs

Regular price:

1.31

Net price: €1.06

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 9686E

Description

_{Cast iron plug 3/4''}

Specifications:

Size: 3/4'' (thread diameter is 26.1 ÷ 26.4 mm)
Model: T9 or alternatively known as No. 46 or No. 290
Dimension A: 32 mm
Type: Plug with an edge
Material: Cast Iron
Coating: Galvanized
Corrosion Resistance: The plug is protected with zinc coating, making it resistant to corrosion.
Application: Heating installations (C.O.), industrial installations

Other Names: Cast Iron Galvanized Plug, Cast Iron Cap, Plug with Square for Key - Galvanized Plug 3/4'' with T9 Edge

What is a Cast Iron Plug?

The Galvanized Plug 3/4'' with T9 Edge is used in hydraulic installations, central heating systems, industrial applications, and water supply systems. It prevents the leakage of liquids or gases and is used to seal the outlets of pipes. It sometimes also serves a protective function to ensure that no contaminants enter the installation.

Plug Edge, Model T9

This type of edge facilitates the installation of the plug, providing better seating and stability at the application site.

Information

Galvanized cast iron fittings and cast iron plugs are commonly used in all industrial sectors and in central heating installations. Their main advantages are cost-effectiveness and general availability. They are suitable for installations with low requirements for both cold and hot water.

The fittings are made of ductile iron, and their surface is protected with hot-dip zinc coating.

Galvanized cast iron fittings are manufactured in accordance with the EN10242 standard.

The surface is covered with hot-dip zinc, which protects against corrosion and weather conditions.

Galvanized cast iron fittings have external tapered threads R and internal cylindrical threads Rp, complying with ISO 7/1.

Marking:

The fittings are marked with their size.

Available Sizes: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', 2 1/2'', 3'', 4''.

Galvanized cast iron fittings are not available in metric dimensions.

The group of galvanized cast iron fittings includes: elbows, reducing elbows, tees, reducing tees, reducers, short bends, long bends, plugs, reducing plugs, caps with edges, cap without edges, T9 plugs, hex nipples with internal threads, hex reducing nipples, nipples with gaskets, tapered nipples, straight nipples, reducing nipples.

We also offer cast iron fittings without galvanization (without coating).

We also offer other sizes of galvanized cast iron plugs. If you have any questions, please contact us. Call us at 632614202 or write to us at the email: biuro@polberis.pl. We will prepare a price quote for you.
