Boss 3/4'' NPT 316L cl. 3000 B16.11

Availability: on sale

Dispatched within: 14 days

Gross price: €14.39

incl. 23% TAX, excl. shipping costs

Regular price:

14.39

Net price: €11.70

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12137B

Description

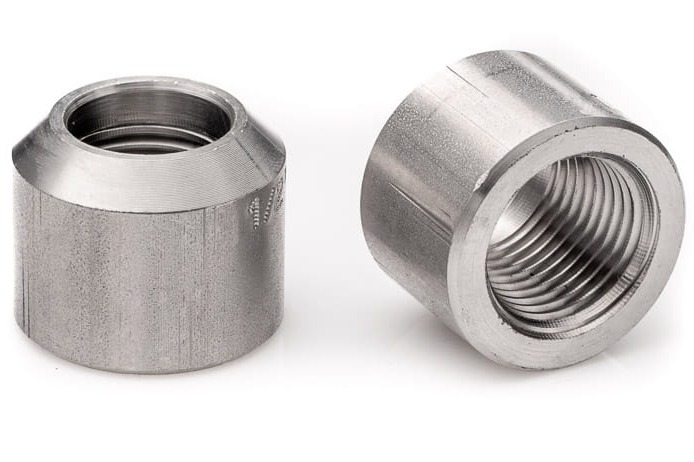

BOSS 3/4'' NPT 316L cl. 3000 B16.11

size: 3/4'' (thread diameter is 23,7 ÷ 24,1mm)
thread: NPT (american conical)
type: stainless steel 316L
pressure class: 3000 (206bar)
steel for welding
dimensions acc. to MSS SP 97
application: high-pressure industrial installations, for high temperature, connection to industrial equipment
atestation 3.1 on request (free of charge)
origin: European Union

dimension V = 25,5mm

dimension D = 35mm

Other name: Boss 3/4" NPT 316L cl.3000 B16.11 welding tapping connector pipe fitting chamfered and threaded pipe branch fitting for welding fitting for welding, bevelled and threaded NPT

Information

Steel grade 316 / 316L – this is a very popular stainless steel with high resistance to corrosion. It characterizes with great welding and forming properties.

Other name: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L

Application: pharmaceutical equipment, dairy equipment, brewing equipment, sea armature, off-shore architecture, food industry, industrial machinery, agricultural machinery, automotive industry.

Advantages of the 316/316L grade: non-magnetic steel, ideal ductility, great impact resistance, great weldability, good resistance, a wide operating temperature range.

You can find more about pressure fittings here>>

Our offer includes also fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Branch Fitting Type	Boss
Material	Stainless Steel
Size	3/4''
Connection Type	NPT Thread
