Graphite gasket DN250 PN16 gr 2mm

Availability: on sale
Dispatched within: 24 hours
Gross price: €13.78
incl. 23% TAX, excl. shipping costs

Regular price:

13.78
Net price: €11.20
excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list
Pin It

Description

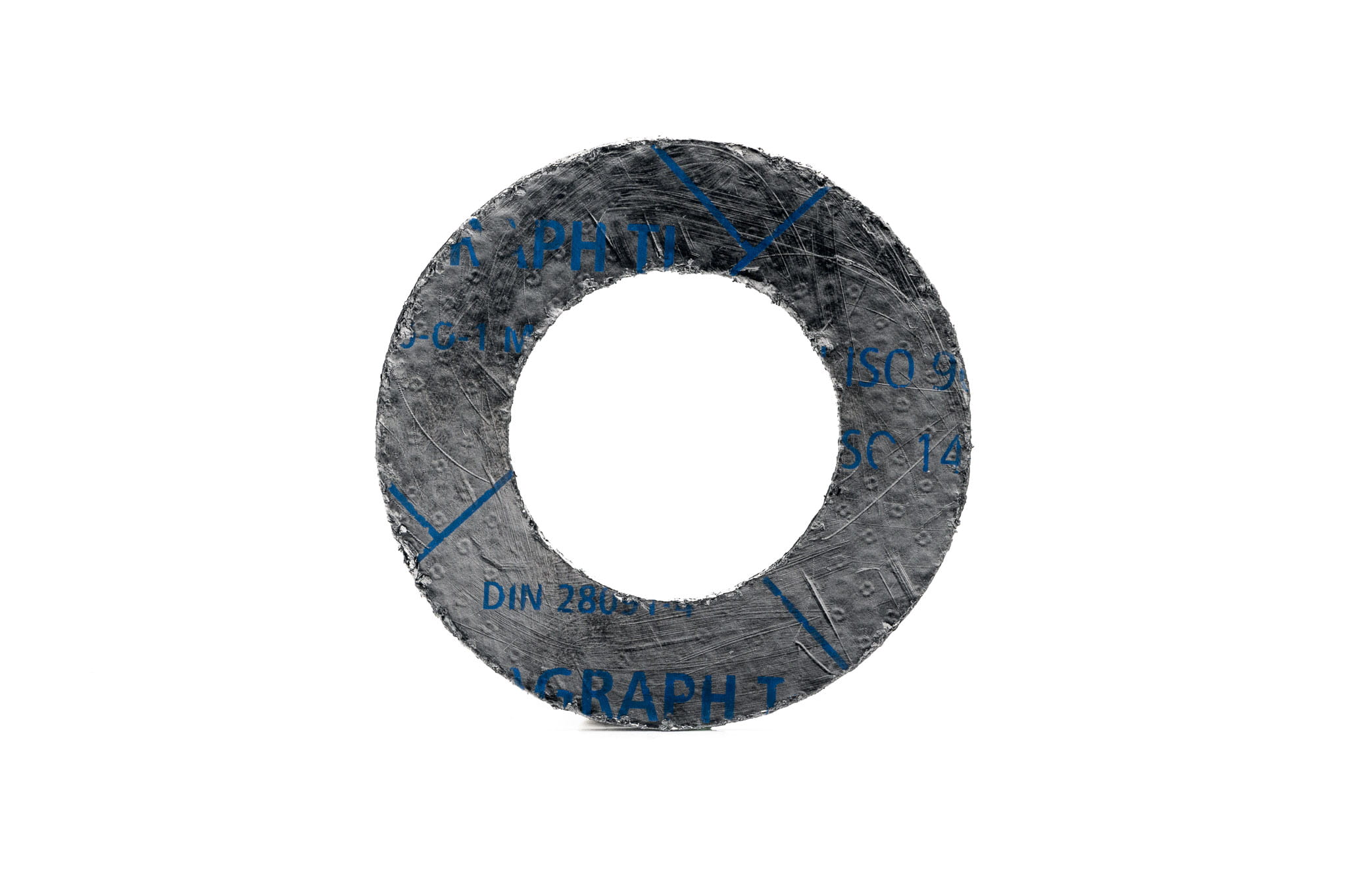

Graphite gasket DN250 PN16 gr 2mm

  • size: DN250
  • thickness: 2mm
  • pressure: PN16
  • material: graphite with 316 stainless steel sheet inserted to improve blast resistance
  • inserted material 1.4401/SS316
  • without holes
  • temperature: max +450*C
  • maximum pressure: 14MPa
  • stability according to DIN 52913, 16h/300*C >48 N/mm2
  • application: steam application, chemical industry, power industry, petrochemical industry, processing industry, etc.
  • gaskets can be made according to ASTM B16.20



Other name: Graphite gasket DN250 PN16 gr 2mm graphite flange flat IBC without holes for flange flange for industrial installation flange according to EN1514-1

Information


Graphite gasket DN250 PN16 gr 2mm is made of graphite with a 316 stainless steel sheet inserted to improve blast resistance. Graphite has many advantages, including flexibility and high abrasion resistance.

The seals are suitable for high-temperature operations and can therefore be used in a wide range of applications. Most notably, the seals are used in steam applications, chemical industries, power generation, petrochemical and processing industries.

Additional information

  • temperature: max +450*C
  • maximum pressure: 14MPa
  • stability according to DIN 52913, 16h/300*C >48 N/mm2

More about gaskets you may find here>>

We offer a wide range of seals and orings. If you are looking for a seal of a different grade or size contact us. Call us at 632614202 or email us at biuro@polberis.pl. We will prepare an offer for you.

If you want to know how much you will pay for transport to your country, write us an email: biuro@polberis.pl. We will send you an offer. If you have a European VAT number and don't want to pay TAX, write to us for an offer. Please free feel to contact us for any information.

Technical data

Size DN250 ~ 10''
