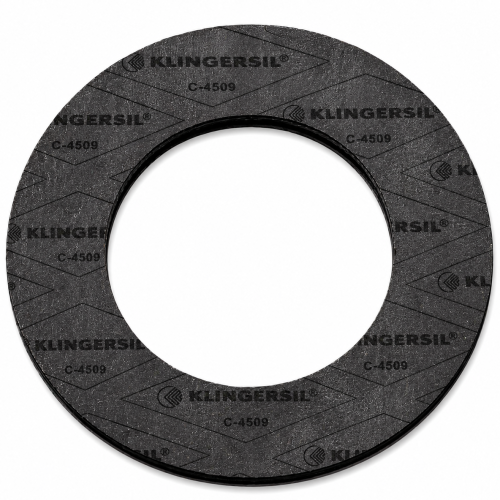

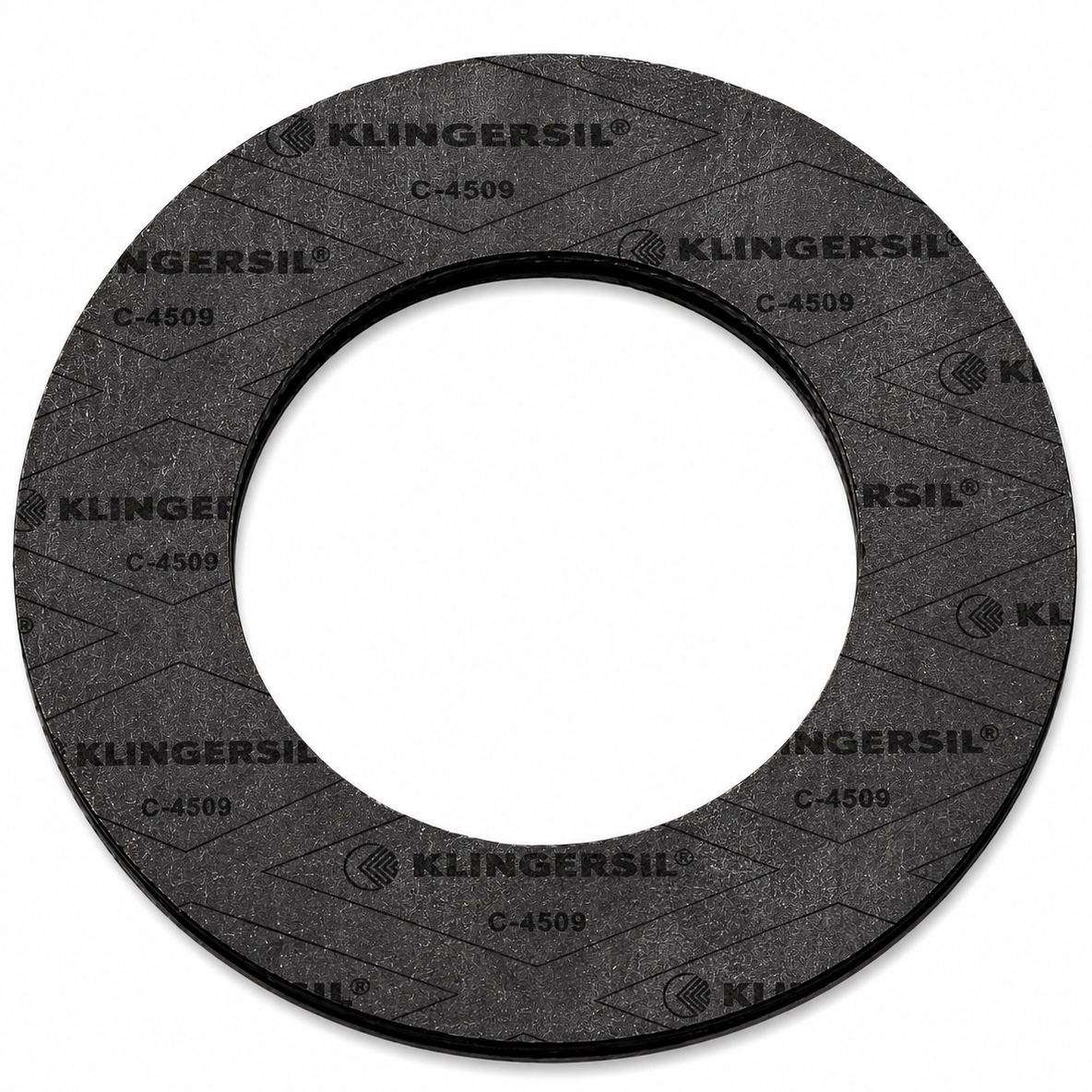

Gasket KLINGERSIL C-4509 DN80 PN10–40

Uszczelka-DN80-PN10-40-KLINGERSIL-C-4509--300-stop.-C-zbrojona-kolnierzowa-plaska-IBC-bez-otworow-DIN-28091-2-C4509.png

Availability: on sale

Dispatched within: 2-5 business days

Gross price: €8.30

incl. 23% TAX, excl. shipping costs

Regular price:

8.30

Net price: €6.75

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11611A

Description

Gasket KLINGERSIL C-4509 DN80 PN10–40

Size: DN80
Pressure rating: PN10–40
Material: KLINGERSIL C-4509
Maximum operating temperature: 400°C
Suitable media: hot water, oils, steam, hydrocarbons, and chemical compounds including methanol, ammonia, benzene, gasoline, wet chlorine, ethane, ethylene, Freon 12, Freon 22, and ethylene glycol

Information

KLINGERSIL C-4509 gasket is designed for high-temperature and high mechanical load applications. Reinforced with a steel wire mesh, it withstands high bolt compression forces. It is primarily intended for use in the chemical industry and offers improved blowout resistance.

Recommended media

Recommended for: alkaline media, steam, methanol, ammonia, benzene, gasoline, wet chlorine, ethane, ethylene, Freon 12, Freon 22, ethylene glycol.

Do not use with: aniline, cyclohexane, phenol, cresol, nitric acid (20%).

Test under operating conditions before use with: acetone, dry chlorine, chloroform.

Maximum operating temperature: 400°C

Standard sheet sizes

Sheet sizes: 1000 × 1500 mm, 2000 × 1500 mm
Thicknesses: 1.0 mm, 1.5 mm
Manufactured according to: DIN 2690 / DIN EN 1514-1
Low-adhesion surface

Custom gasket cutting

Available according to:

EN 1514-1
EN 12560-1
ASME B16.20
DIN 2690
Customer technical drawings
TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)
SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)
IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)
Full dimensional range, including custom shapes
Large segmented gaskets (puzzle type)
Lead time: 2–5 days

How to install the gasket

Check that the gasket is the correct size and material.
Inspect the gasket for damage.
Check that the flanges are not distorted.
Clean the flange faces and fastening components (bolts, nuts, and washers).
Align the flanges and bolt holes.
Carefully insert and centre the gasket between the flanges.
Do not use sealing compounds.
Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.
